Expansion Valve Removal/Installation
>>
Adhesive Polyurethane (3) Assembly Note
Adhesive Polyurethane (3) Assembly Note
Wrap the low-pressure side of the evaporator pipe with insulator.

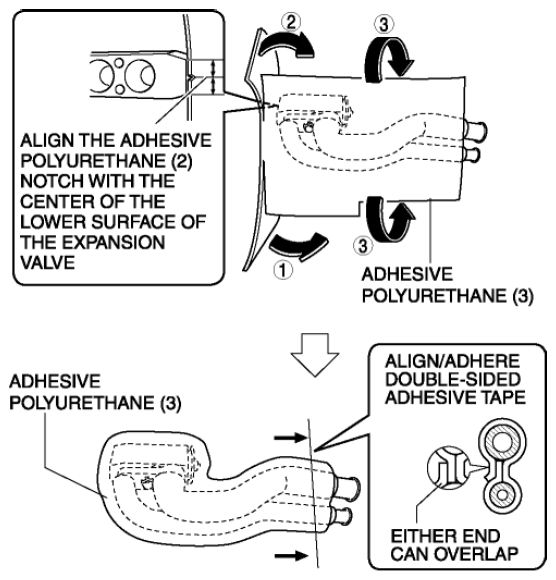

Fig 1: Wrapping Low-Pressure Side Of Evaporator Pipe With Insulator
