Heater Hose Removal Note

  1. While pressing the heater hose into the A/C unit side (1), pinch the quick connector retainer (2), then disconnect the heater hose from the A/C unit (3).

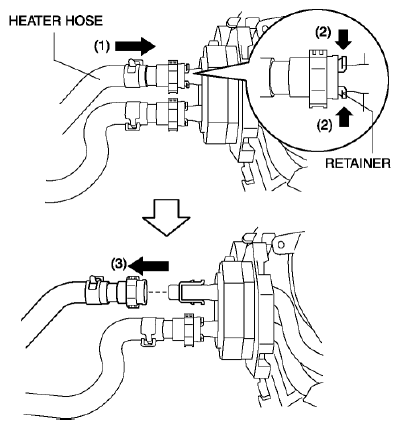

    Fig 1: Pressing Heater Hose Into A/C Unit Side
    G08150892
