Clutch Release Cylinder Removal/Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not allow clutch fluid get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, wash it off with water immediately and wipe the area off completely.
- Disconnect the clutch pipe and hose No.2 from clutch release cylinder, and plug it to avoid clutch fluid leakage.

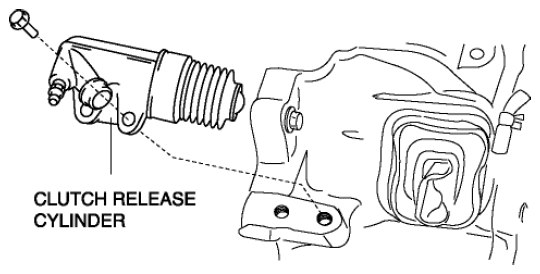

- Remove the clutch release cylinder.
Tightening torque
- 19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
- Install in the reverse order of removal.
- Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
