Pedal Height Inspection
WARNING: This page is about a different variant/trim than selected.
- Perform "Pedal Inspection Preparation". (See PEDAL INSPECTION PREPARATION .)

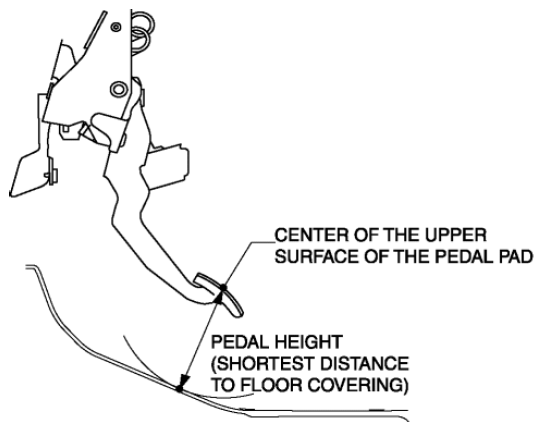

- Measure the pedal height with the clutch pedal released as shown in the figure.
- If not within the specification, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
Pedal height (reference value)
- 134.4 mm {5.291 in}
