Pedal Full Stroke Inspection
WARNING: This page is about a different variant/trim than selected.
- Perform "Pedal Inspection Preparation".(See PEDAL INSPECTION PREPARATION .)

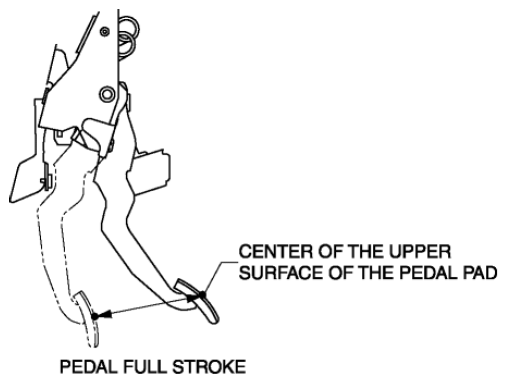

- Depress the clutch pedal from the released condition to the full depression position, and measure the pedal full stroke as shown in the figure.
- If not within the specification, perform the following procedure:
- Verify that there is no malfunction in the clutch master cylinder operation.
- Verify that there is no malfunction in the clutch release cylinder operation.
- If there is no malfunction in the clutch master cylinder and the clutch release cylinder, replace the clutch pedal. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
Pedal full stroke (reference value)
- 126.3 mm {4.972 in}
