Front Axle Wheel Hub & Steering Knuckle: Removal
WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

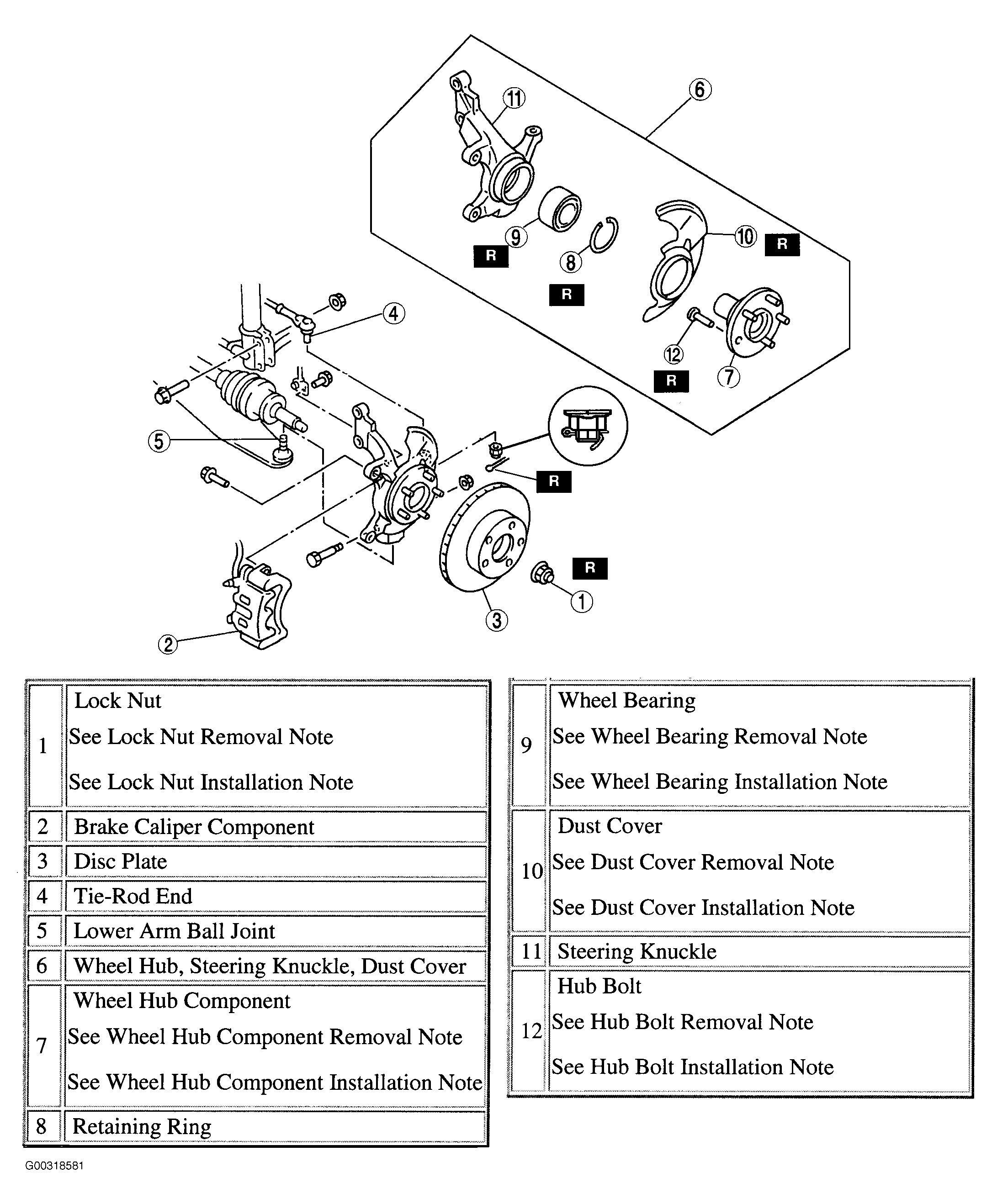

Remove in the order indicated in the illustration. See Fig 1 .
Lock Nut Removal Note

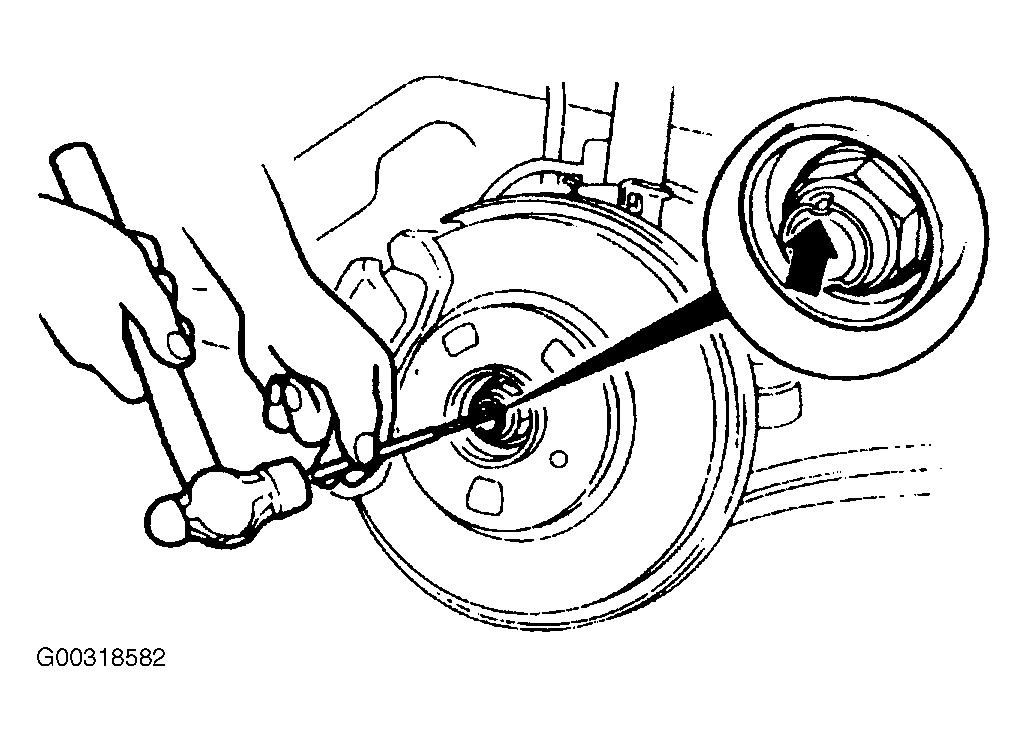

- Knock the crimped portion of the lock nut outward using a small chisel and a hammer. See Fig 2 .
- Lock the hub by applying the brakes.
- Remove the lock nut.
NOTE:
To remove the axle shaft, it is only necessary to remove the steering knuckle and hub assembly, not disassemble it. Disassemble the steering knuckle/hub assembly only if the components are damaged or worn out.
Wheel Hub Component Removal Note

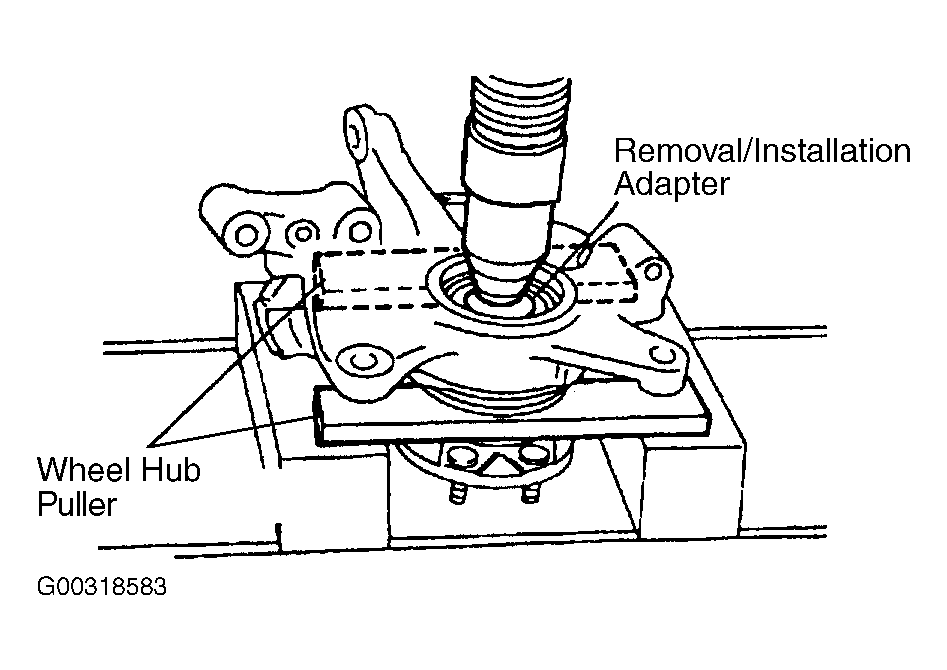

- Remove the wheel hub component using the Wheel Hub Puller (49-F026-103) and Removal/Installation Adapter (49-G033-105). See Fig 3 .
- If the bearing inner race remains on the front wheel hub component, grind a section of the bearing inner race until approximately. 0.02" (0.5 mm) remains. Then remove it using a chisel.
Wheel Bearing Removal Note - Remove the wheel bearing using a Wheel Hub Puller (49-F026-103), a Handle (49-G030-797) and a Bearing Installer (49-S033-108). See Fig 4 .

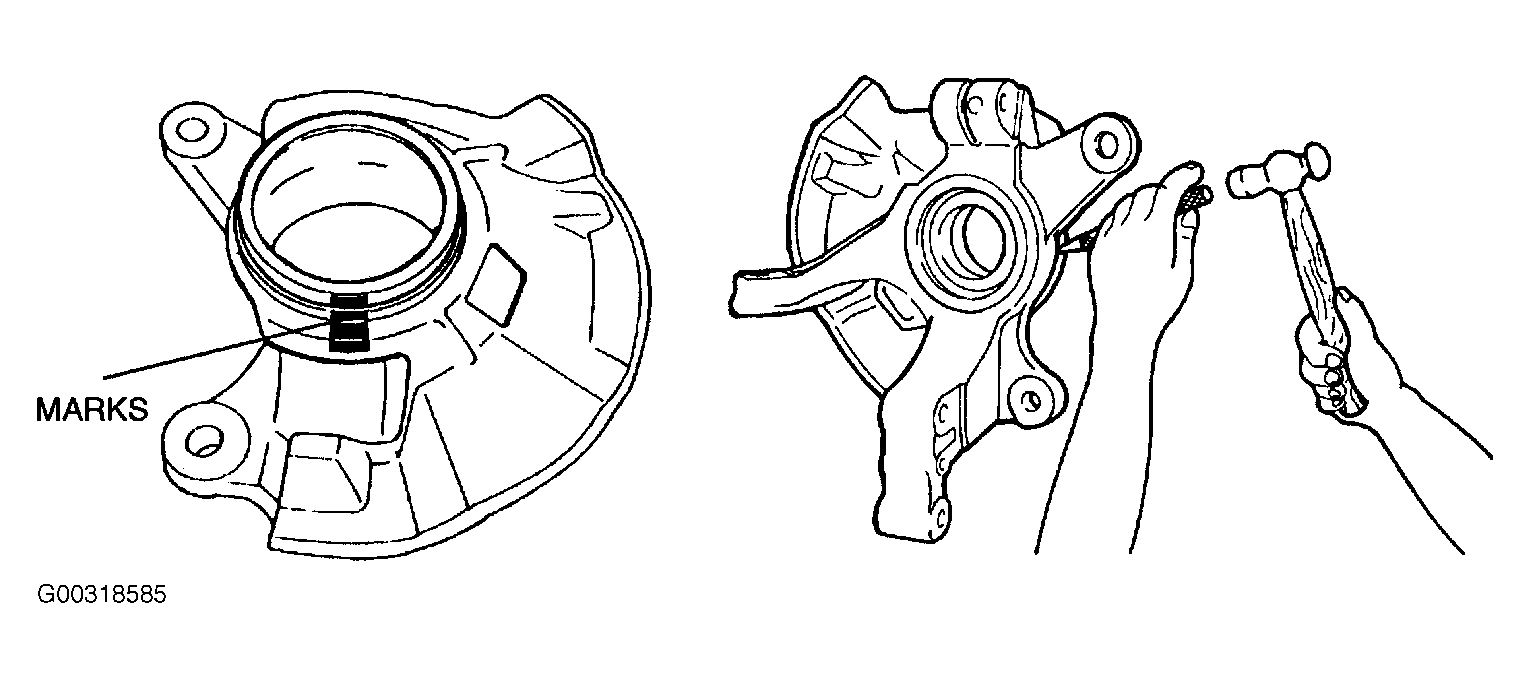

Dust Cover Removal Note - The dust cover does not need to be removed unless it is being replaced. Mark the dust cover and steering knuckle for proper installation. See Fig 5 . Remove the dust cover using a chisel.
Hub Bolt Removal Note - The hub bolts do not need to be removed unless they are being replaced. Remove the hub bolts using a press. See Fig 6 .
