Removal & Installation
WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the console. See CONSOLE under MISCELLANEOUS.
- Remove the rear seat cushion.
- Remove the exhaust pipe. Remove the exhaust pipe insulator.

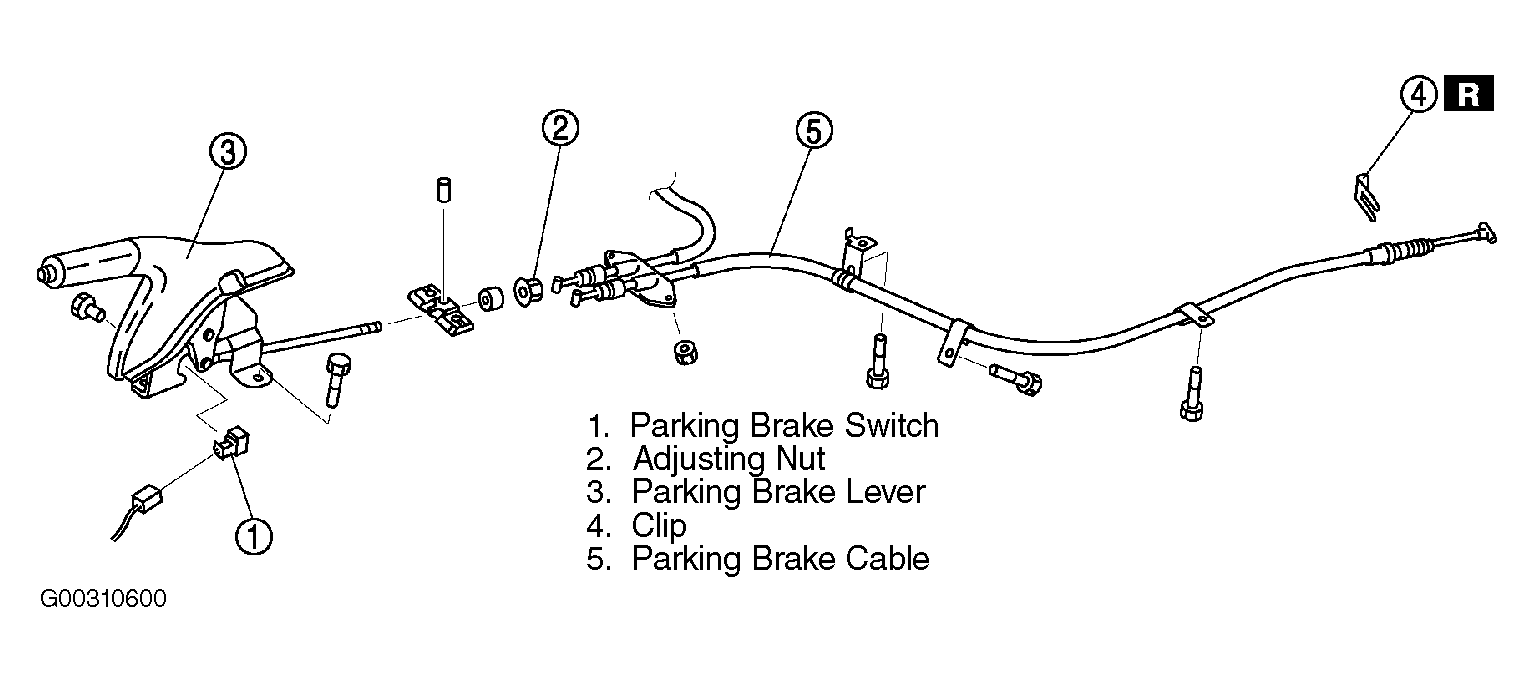

- Remove components in the order indicated in the illustration. See Fig 1.
- To install, reverse removal procedure.
- Adjust the parking brake stroke. See PARKING BRAKE under ADJUSTMENTS. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Bleed air from system if necessary. See BLEEDING BRAKE SYSTEM .
