Removal & Installation
WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- For models with an interlock cable unit, remove the lock unit with the brake switch.

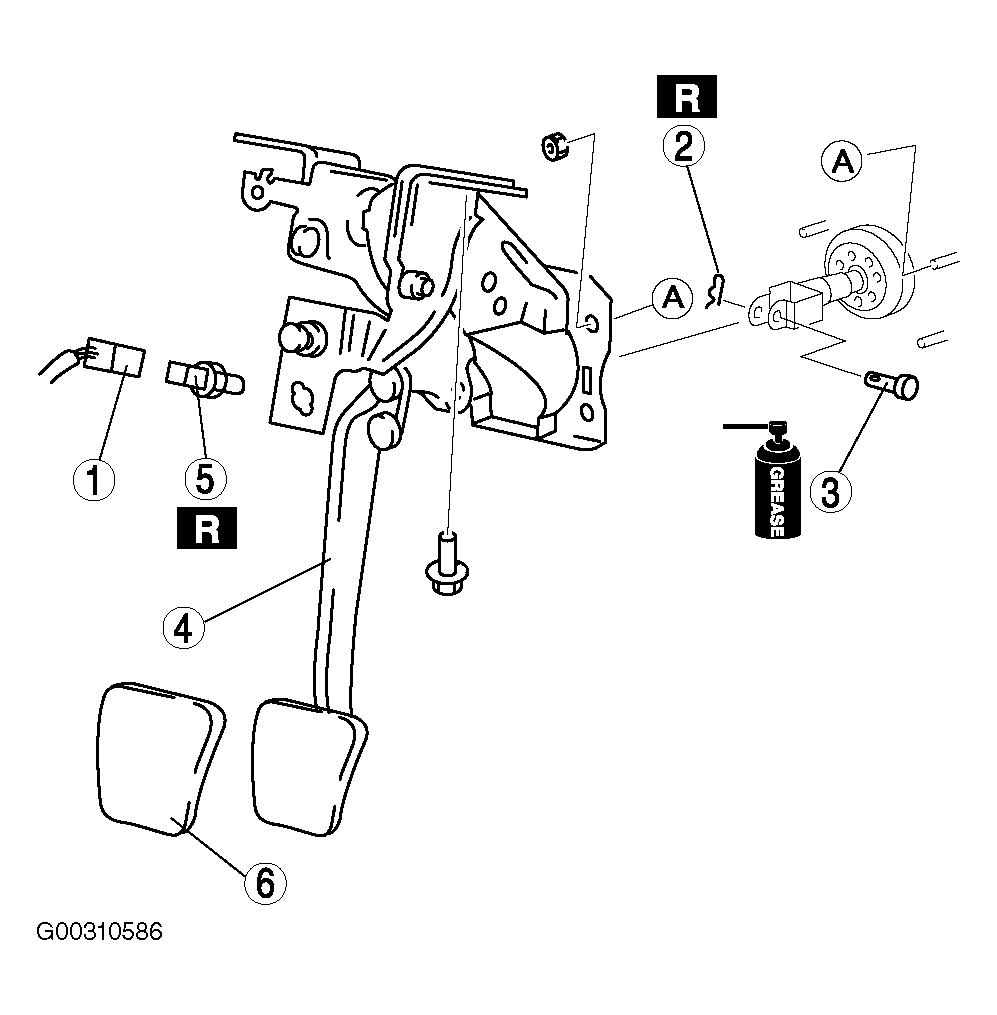

- Remove components in the order indicated in the illustration. See Fig 1.NOTE:
Brake Switch Installation Note

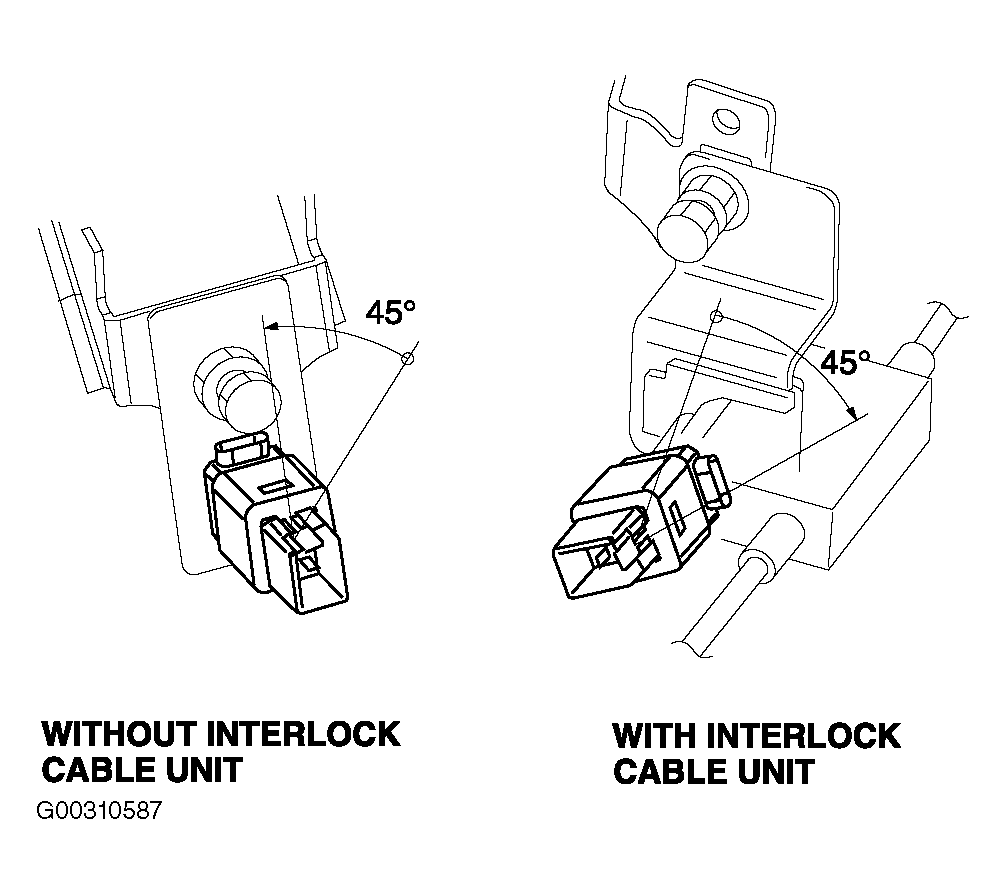

- Fix the brake switch on the brake pedal bracket or interlock cable unit by pressing down at 11 lbs. of force. See Fig 2.
- Rotate the brake switch 45° counterclockwise (without interlock cable unit) or clockwise (with interlock cable unit).
- Verify that the brake switch is locked securely.
- With the brake pedal in its original position, install the brake switch connector.
- Install in the reverse order of removal. Tighten nuts to specification. See TORQUE SPECIFICATIONS .
