Removal & Installation (Low Series Console)

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

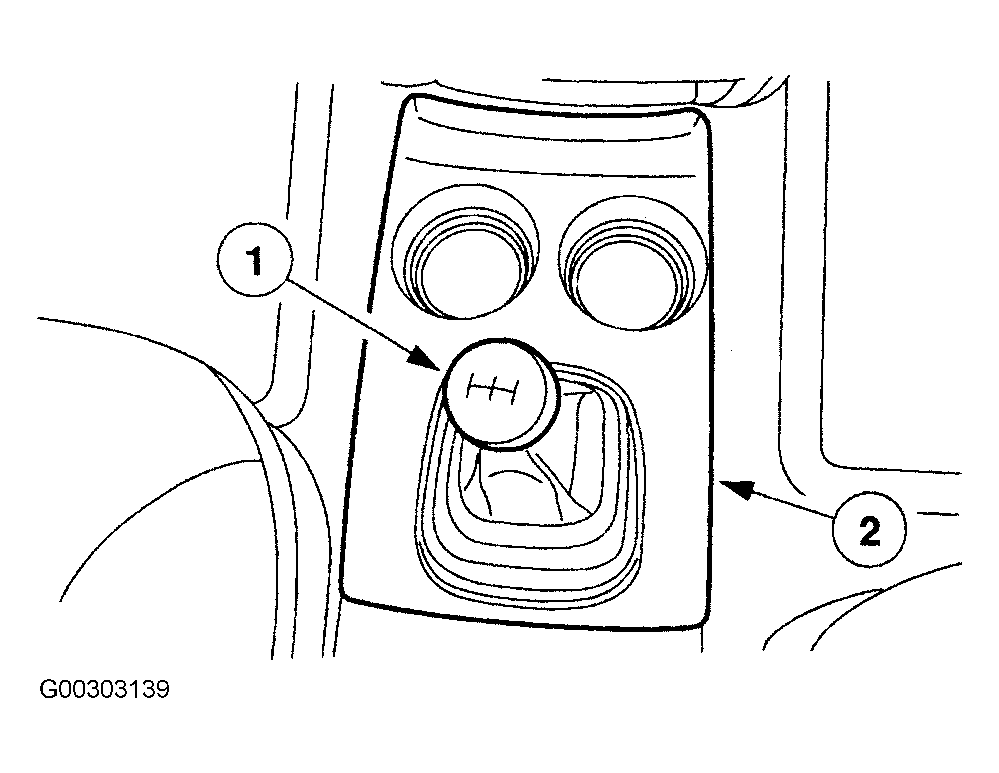

  1. If equipped, remove the manual transaxle shifter knob by turning counterclockwise. Remove the floor console front finish panel. See Figure .

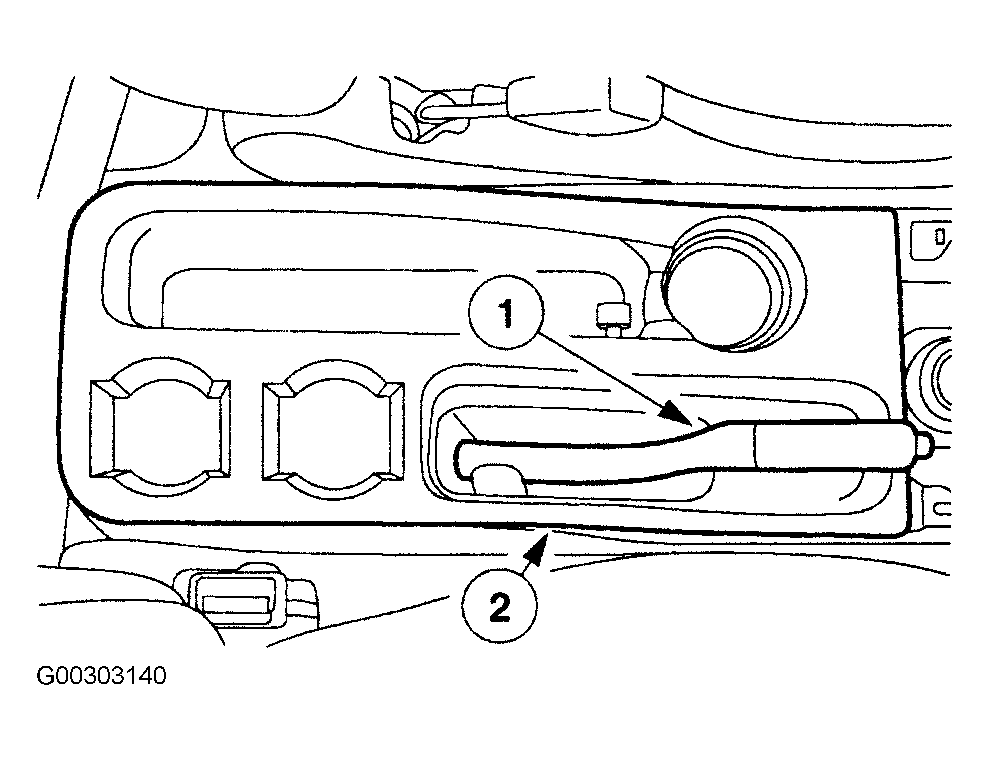

  2. Apply the parking brake. Remove the floor console rear finish panel. See Figure .
  3. Remove the floor console front bolts. See Fig 1 .
  4. Remove the rear two bolts. Remove the floor console. See Fig 2 .
  5. To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

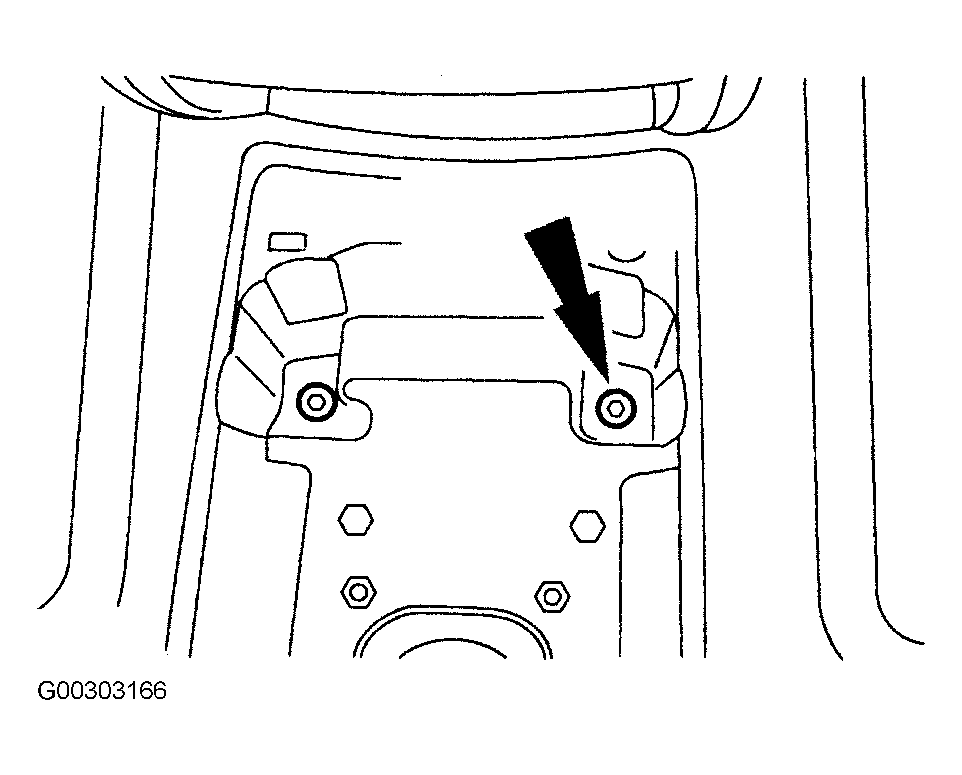

Fig 1: Removing Floor Console Front Bolts
G00303166Courtesy of MAZDA MOTORS CORP.
Fig 2: Removing Floor Console Rear Bolts
G00310525Courtesy of MAZDA MOTORS CORP.
