Removal & Installation (High Series Console)

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Apply the parking brake. Remove the floor console finish panel. See Figure .
Remove the floor console front bolts. See Fig 1 .
Remove the two rear bolts. Remove the floor console. See Fig 2 .
To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .

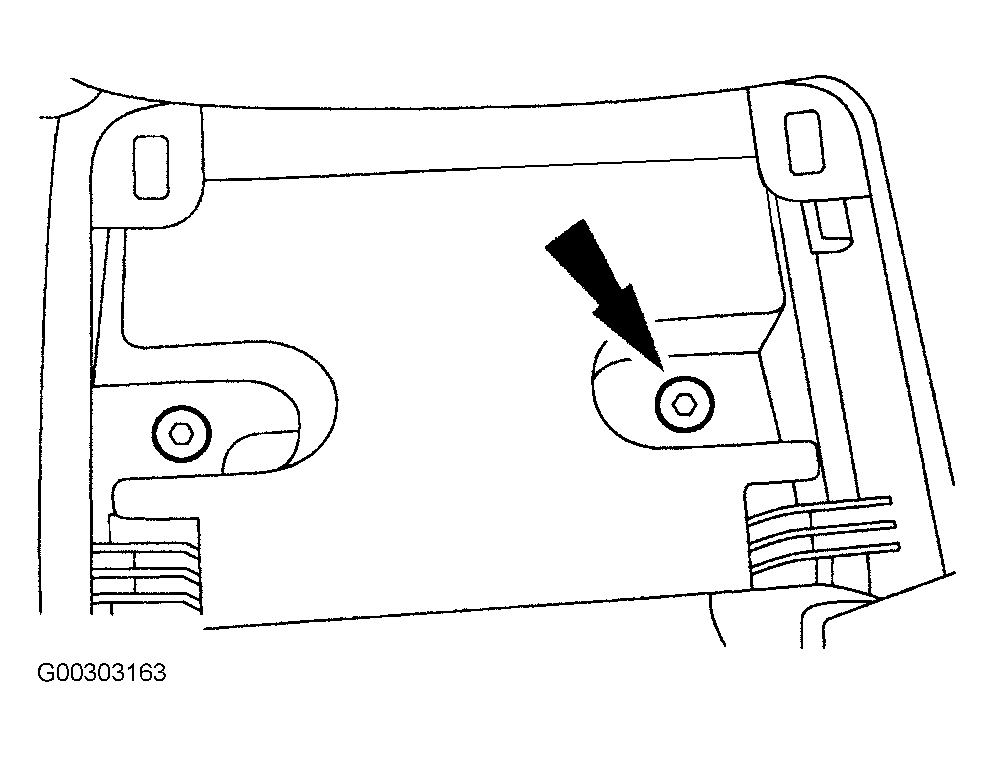

Fig 1: Removing Floor Console Front Bolts

Courtesy of MAZDA MOTORS CORP.

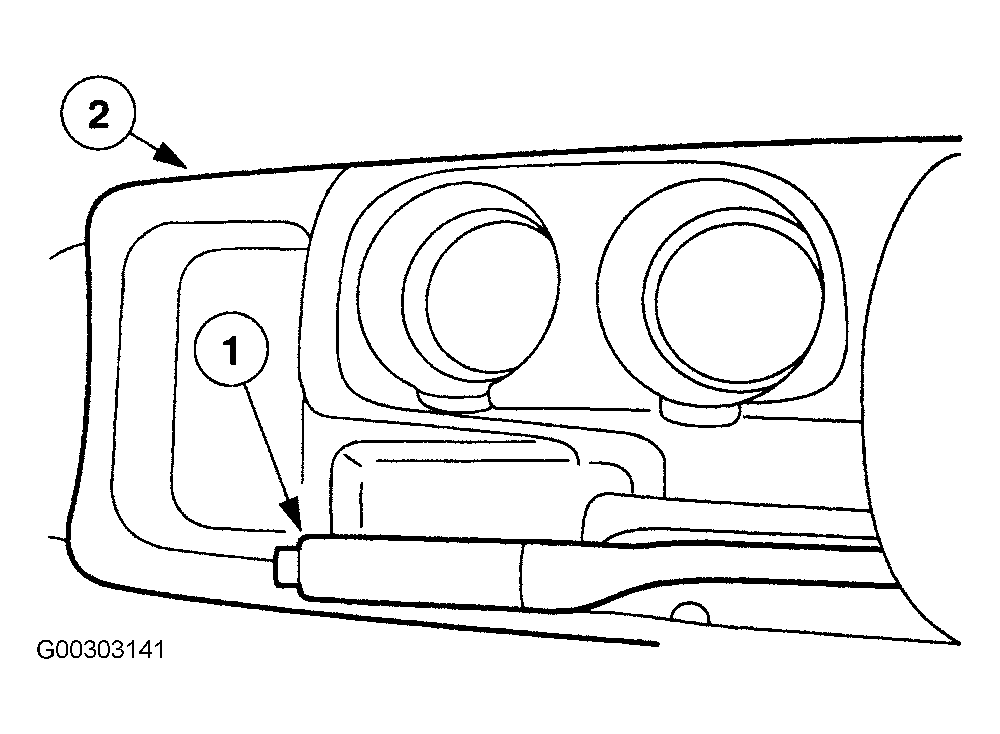

Fig 2: Removing Floor Console Rear Bolts

Courtesy of MAZDA MOTORS CORP.
