Brake Pedal Position Switch: Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Initial installation of BPP switch allows for one adjustment. If additional adjustments are necessary, install a new switch.

NOTE: Numbers in parenthesis refer to numbers in illustration.

To unlock, rotate the lock knob counterclockwise to the stop. See Fig 2 .
With the engine running fully depress and hold the brake pedal.
Install the BPP switch. Position the BPP switch in the bracket and rotate counterclockwise (1). See Fig 3 . Connect the electrical connector (2). See Fig 1 .
Slowly release the brake pedal.

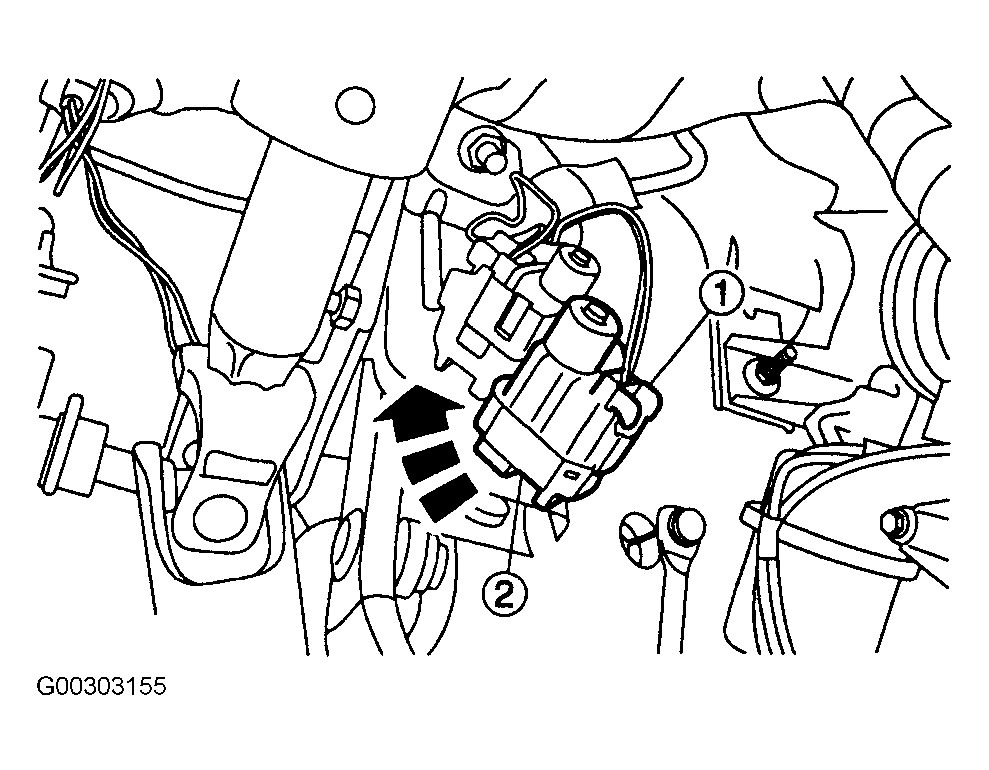

Fig 1: Removing Brake Pedal Position Switch

Courtesy of MAZDA MOTORS CORP.

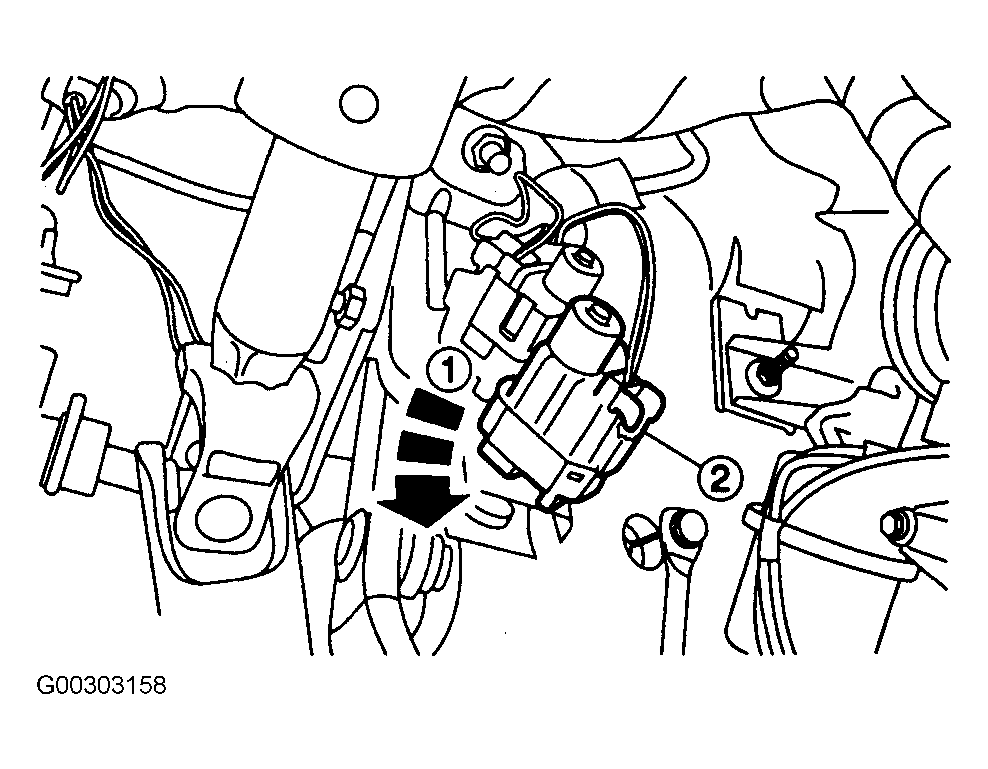

Fig 2: Unlocking Brake Pedal Position Switch

Courtesy of MAZDA MOTORS CORP.

Fig 3: Installing Brake Pedal Position Switch

Courtesy of MAZDA MOTORS CORP.
