Brake Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the fluid level electrical connector. See Fig 1 .
Using a suitable suction device, drain the brake master cylinder reservoir.
If equipped with manual transaxle, disconnect the clutch master cylinder feed. See Fig 2 .
Remove the brake master cylinder reservoir. See Fig 3 .

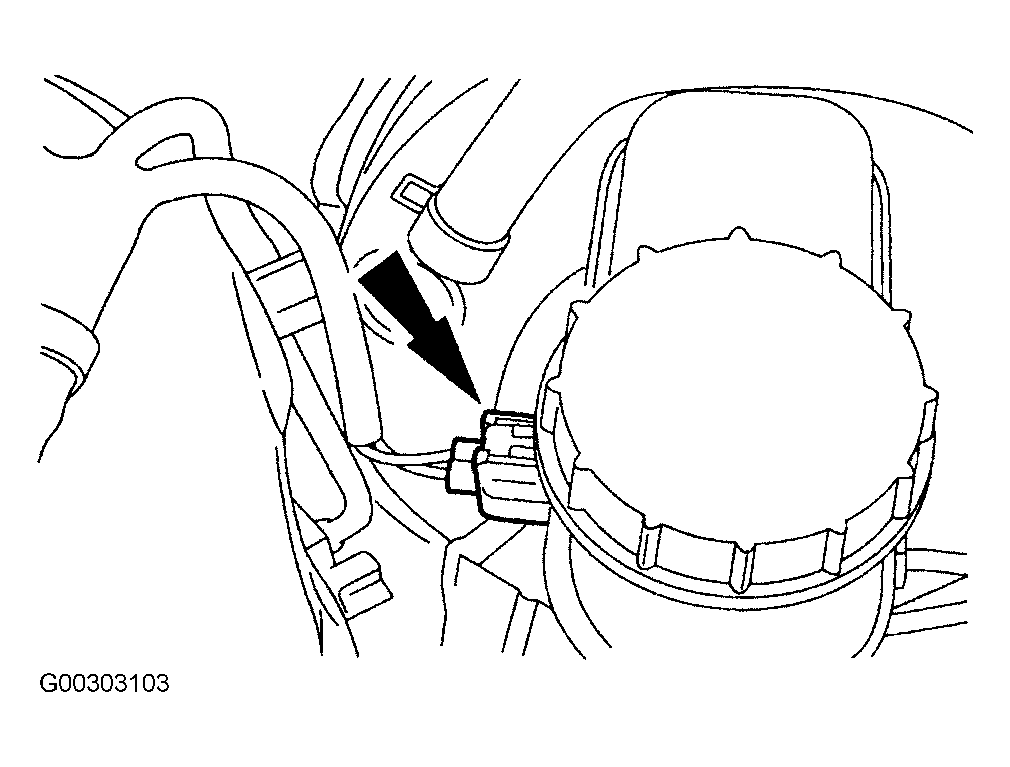

Fig 1: Disconnecting Brake Fluid Level Warning Switch Connector

Courtesy of MAZDA MOTORS CORP.

Fig 2: Disconnect Master Cylinder Feed

Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Brake Master Cylinder Reservoir

Courtesy of MAZDA MOTORS CORP.
