Brake Fluid Reservoir: Installation
WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Whenever installing a new brake master cylinder reservoir, install new seals.
NOTE:

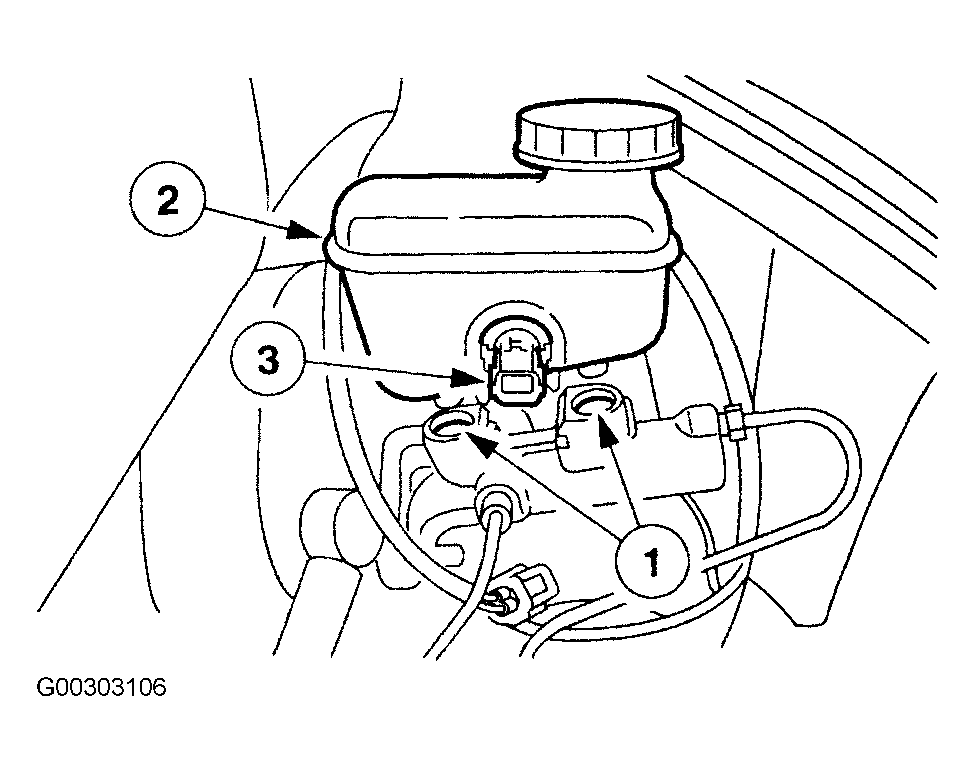

Numbers in parenthesis refer to numbers in illustration.
- Lubricate the two seals with clean brake fluid and insert the seals into the brake master cylinder (1). See Fig 1 .
- Press the brake master cylinder reservoir into the seals until it snaps in securely (2).
- Connect the brake master cylinder fluid level warning switch electrical connector (3).
If equipped with manual transaxle, connect the clutch master cylinder feed. See Figure . Bleed the clutch master cylinder. See BRAKE MASTER CYLINDER . Bleed the master cylinder. See BRAKE SYSTEM PRESSURE BLEEDING .
