Brake Master Cylinder: Reassembly

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use clean brake fluid to lubricate the new piston assembly seals and the brake master cylinder bore.
  2. Install the secondary piston assembly. See Fig 1 .
  3. Install the primary piston assembly. See Fig 2 .

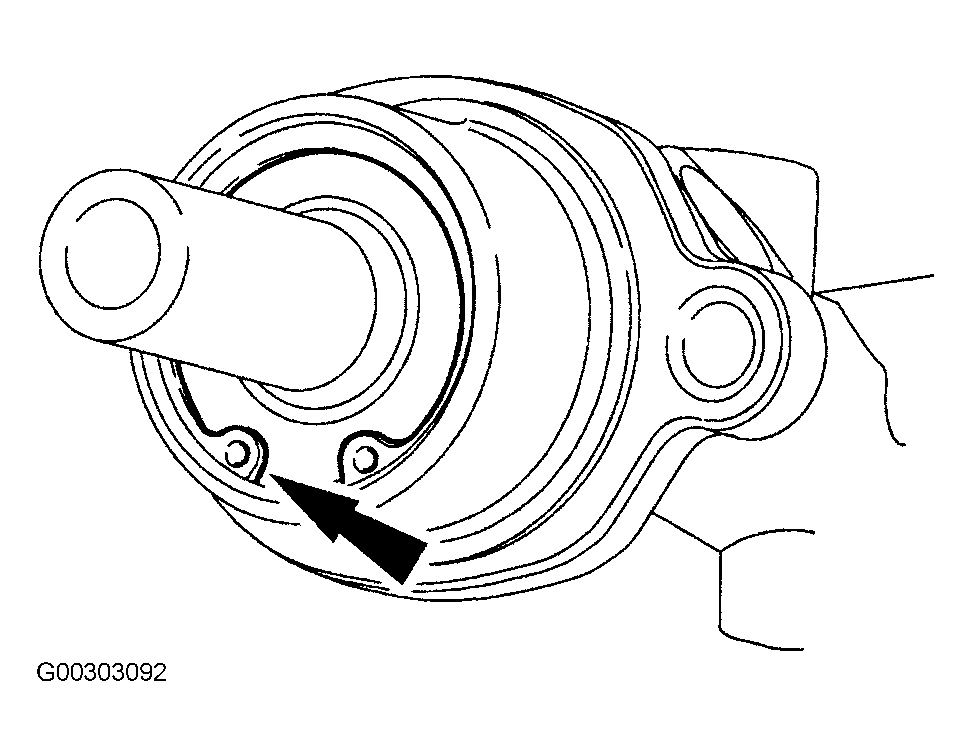

  4. Install the snap ring. See Figure .

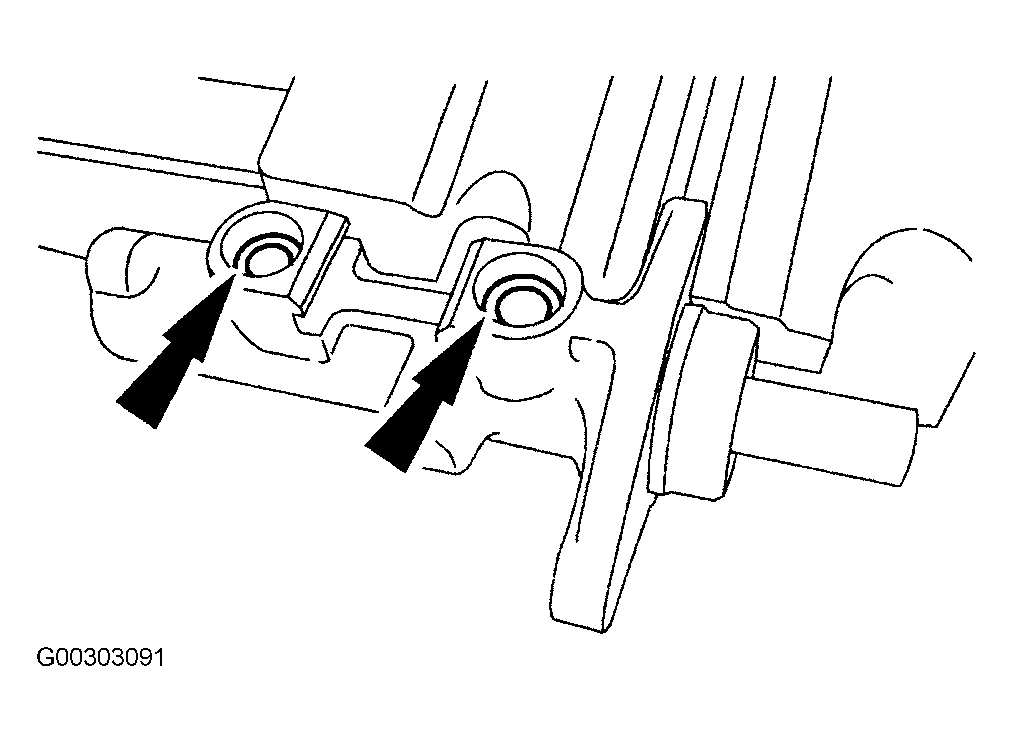

  5. Install the seals. See Figure . Lubricate the seals with clean brake fluid and insert the seals into the brake master cylinder.
  6. Install the brake master cylinder reservoir. See Figure . Press the brake master cylinder reservoir into the seals until it snaps in securely.
  7. Install master cylinder. See BRAKE MASTER CYLINDER  under REMOVAL & INSTALLATION.
Fig 1: Installing Secondary Piston Assembly
G00303095Courtesy of MAZDA MOTORS CORP.
Fig 2: Installing Primary Piston Assembly
G00303096Courtesy of MAZDA MOTORS CORP.
