Brake Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake master cylinder. See BRAKE MASTER CYLINDER  under REMOVAL & INSTALLATION.
  2. Clean the outside of the brake master cylinder.
  3. Remove the brake master cylinder reservoir. See Fig 1 .
  4. Remove the seals. See Fig 2 .
  5. Remove the snap ring. See Fig 3 .
  6. Remove the primary and secondary piston. See Fig 4 .
    NOTE: If the brake master cylinder bore is damaged, a new brake master cylinder must be installed.
  7. Use isopropyl alcohol to clean and inspect the brake master cylinder bore for damage.
Fig 1: Removing Master Cylinder Reservoir
G00303090Courtesy of MAZDA MOTORS CORP.
Fig 2: Removing Master Cylinder Seals
G00303091Courtesy of MAZDA MOTORS CORP.
Fig 3: Removing Snap Ring
G00303092Courtesy of MAZDA MOTORS CORP.

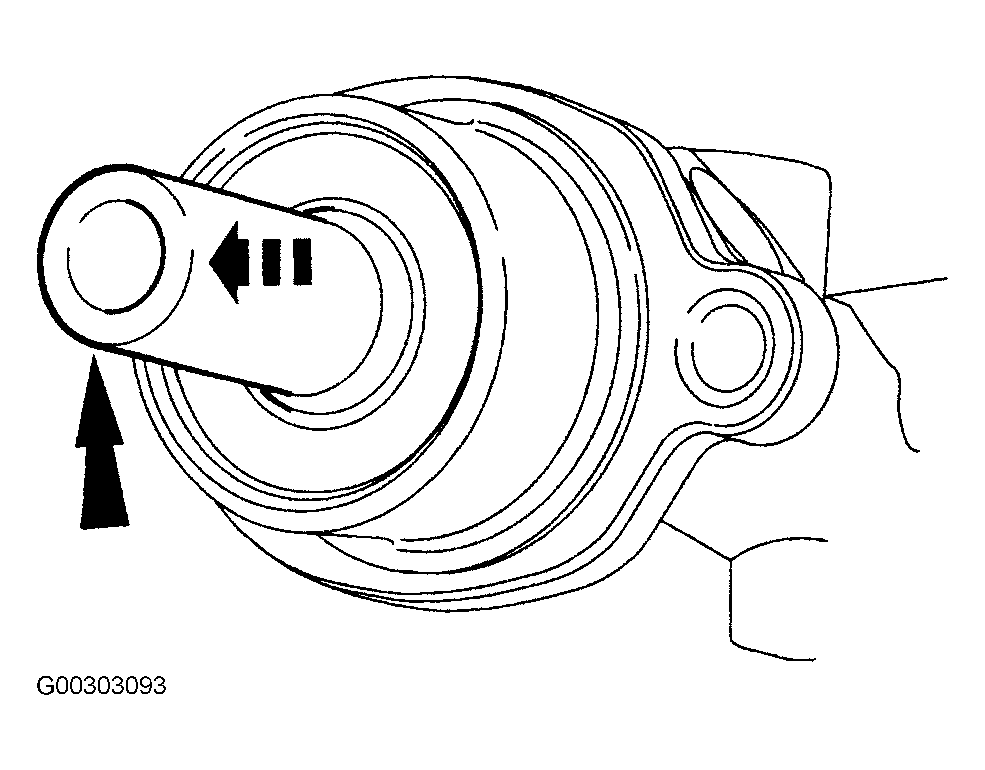

Fig 4: Removing Master Cylinder Pistons
G00303093Courtesy of MAZDA MOTORS CORP.
