Brake System Leak Check
WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in parenthesis refer to numbers in illustration.

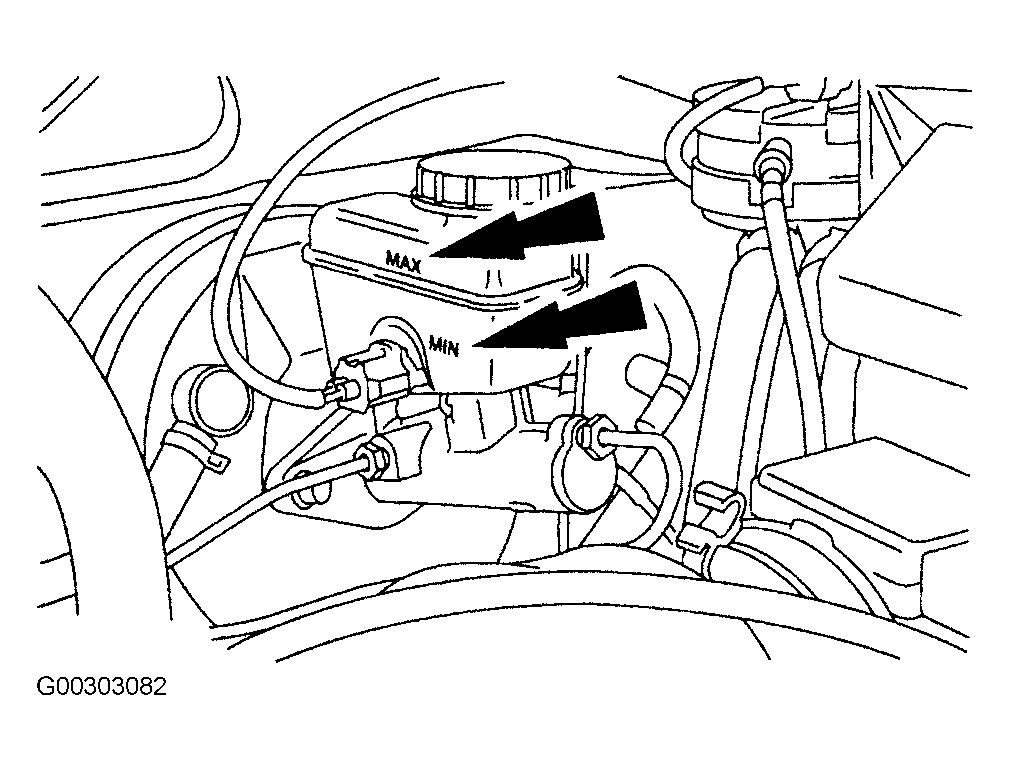

- Check the brake fluid level. See Fig 1 . If the fluid level is below the MIN line on the brake master cylinder reservoir add the necessary amount of DOT 3 brake fluid.

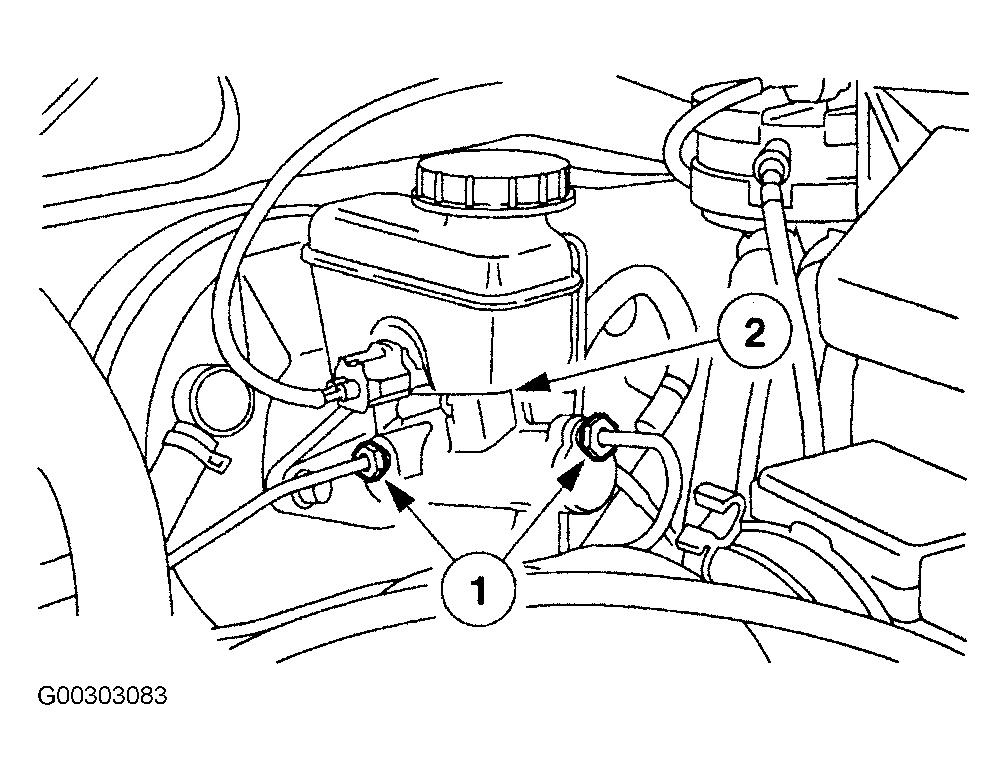

- Using the illustration for a reference, inspect the (1) brake line fittings and the (2) brake master cylinder reservoir for fluid leaks. See Fig 2 .
- Inspect the brake lines and hoses for fluid leaks.
- Inspect the rear wheel cylinders for leaks.
- Inspect the front disc brake calipers for leaks.
- If a hydraulic leak is detected, repair or install a new component.
