Master Cylinder In-Vehicle Bleed

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake outlet lines from the brake master cylinder and cap the lines. See Fig 1 .
  2. Install short brake hoses to the master cylinder outlet ports with the ends submerged in the brake master cylinder reservoir. See Fig 2 .
  3. Fill the brake master cylinder reservoir with DOT 3 brake fluid.
  4. Have an assistant pump the brake pedal until clear, bubble-free brake fluid flows from both brake hoses.
  5. Remove the short brake hoses and install the brake outlet lines. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

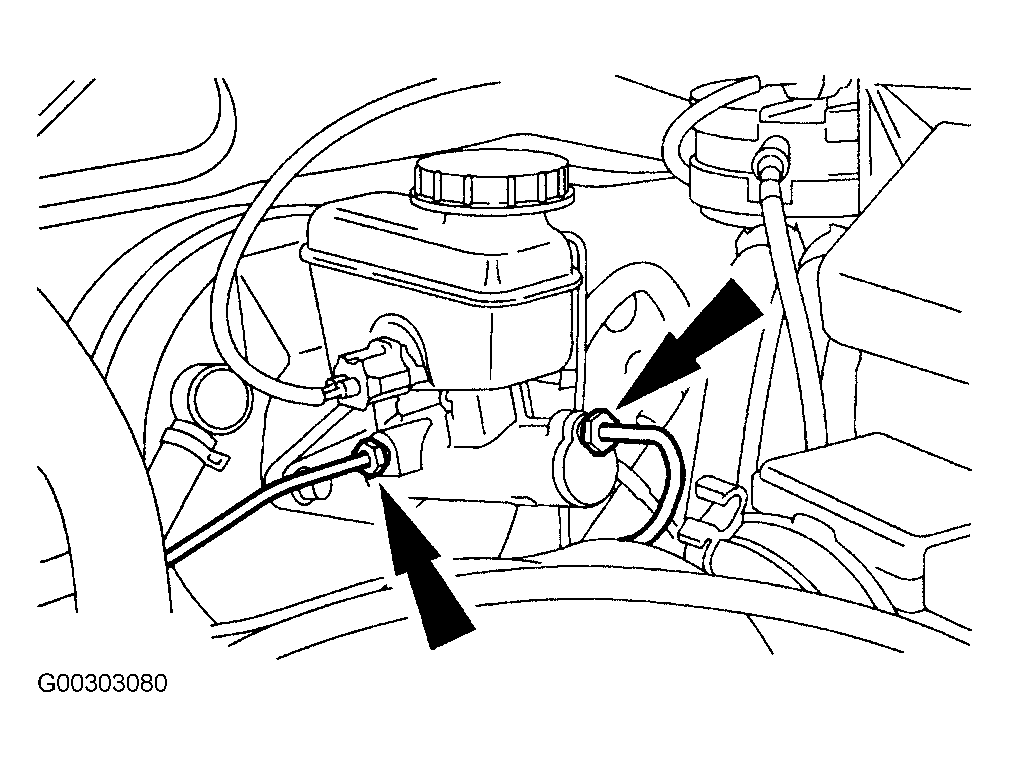

Fig 1: Disconnecting Brake Outlet Lines
G00303080Courtesy of MAZDA MOTORS CORP.

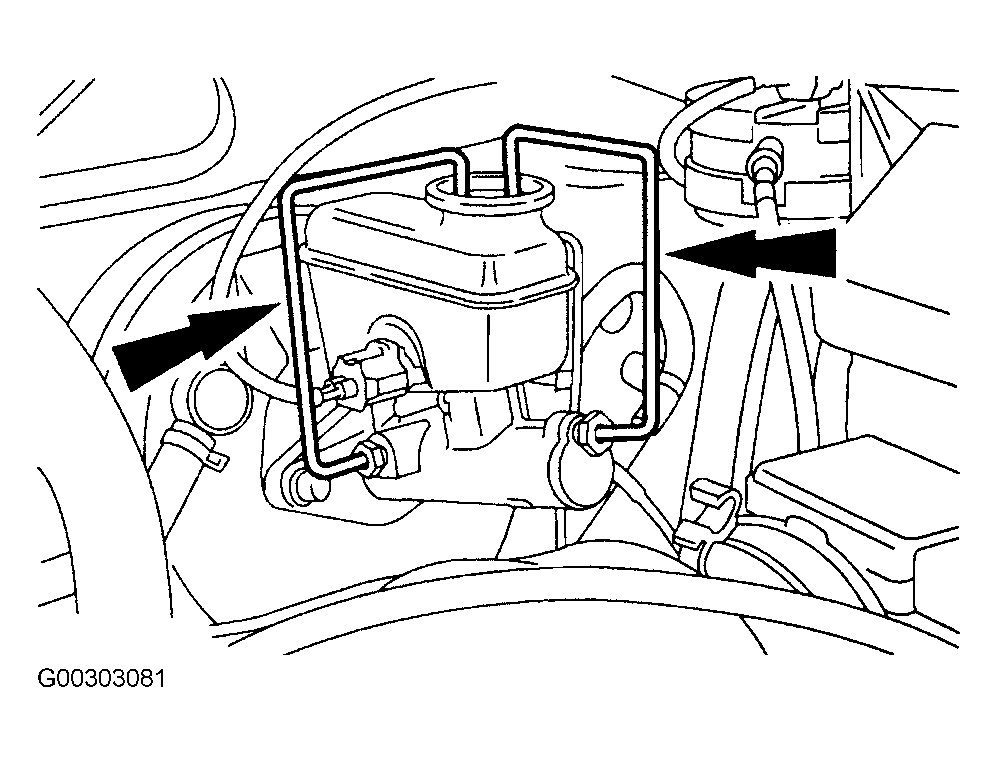

Fig 2: Connecting Short Hose Lines
G00303081Courtesy of MAZDA MOTORS CORP.
