Removal & Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

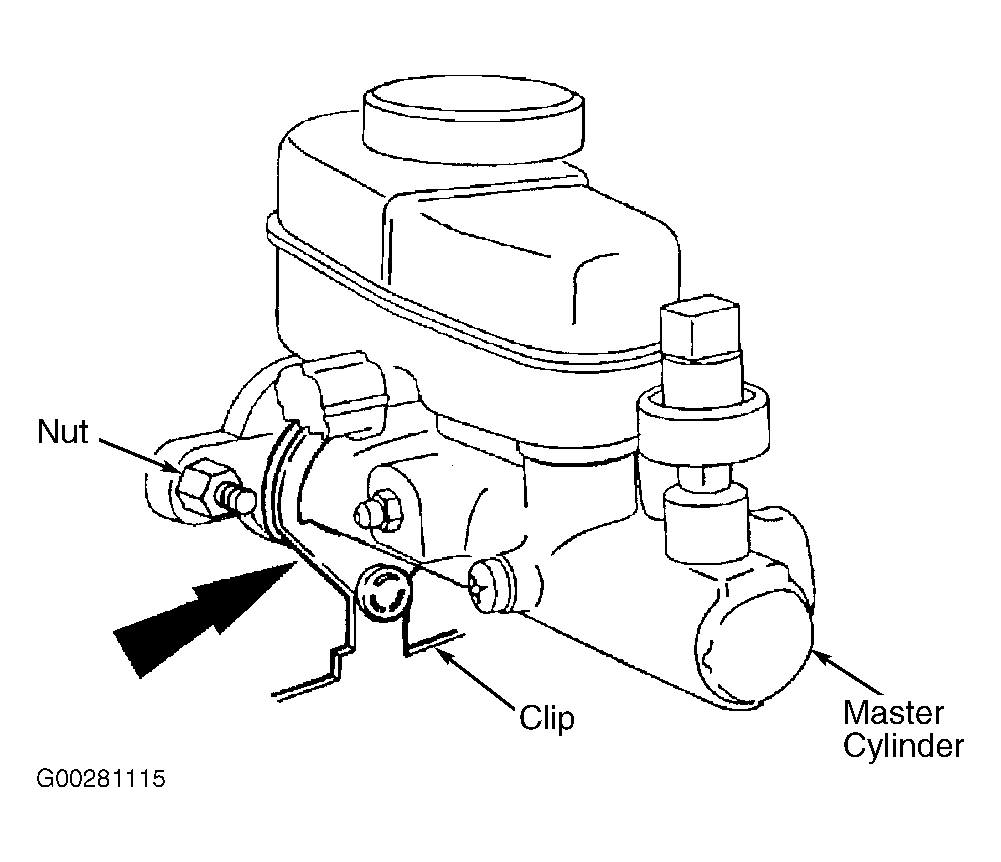

- Disconnect fluid level sensor electrical connector at fluid reservoir. Disconnect brake pressure switch connector (if equipped). Disconnect and plug brake lines at master cylinder to prevent entry of dirt and loss of fluid. Remove the clip. See Fig 1 . Remove nuts attaching master cylinder to power brake unit.
- Remove master cylinder from vehicle. To install master cylinder, reverse removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS . Bleed air from system. See BLEEDING BRAKE SYSTEM .
