Disassembly & Reassembly
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Mazda B4000, 2004 Mazda B3000, 2004 Mazda B2300, 2003 Mazda B4000, and 2003 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal is not necessary to disassemble, hone or overhaul the wheel cylinder.

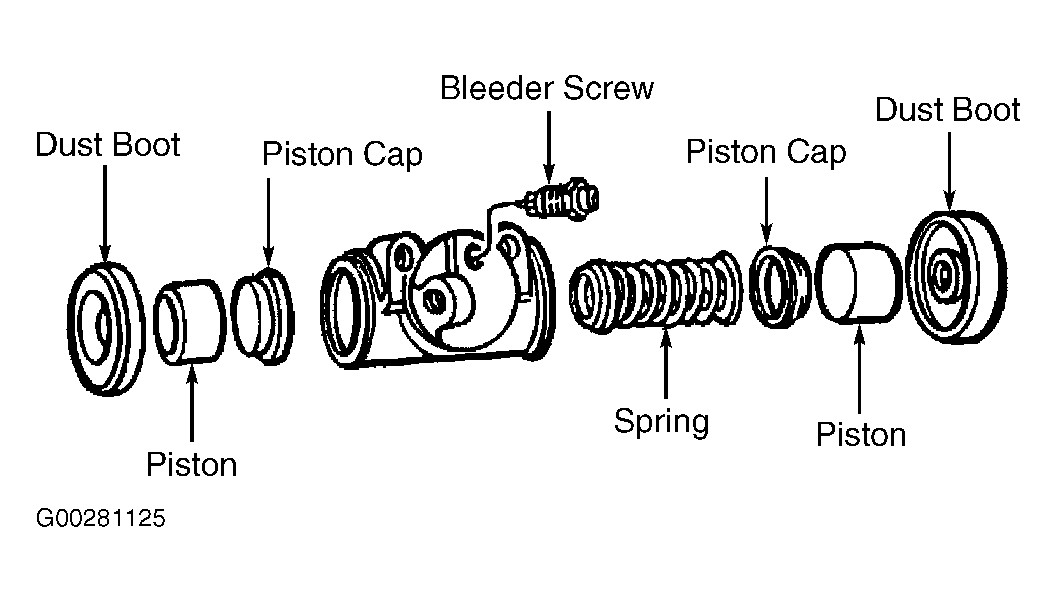

Remove dust boots. See Fig 1 . Remove pistons. Remove piston cups and spring. Inspect cylinder bore for scoring, nicks and corrosion. Replace wheel cylinder if necessary. Coat all wheel cylinder parts with the appropriate brake fluid. Assemble in reverse order of disassembly. Bleed brake system. See BLEEDING BRAKE SYSTEM .
