Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder block lower blind plug.
  2. Install the SST  .

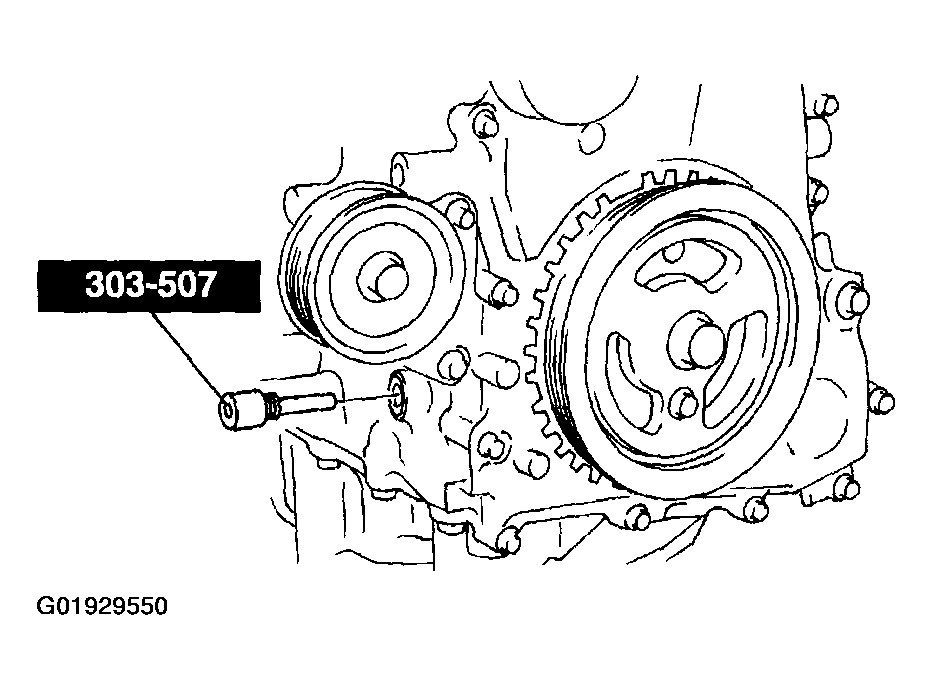

    Fig 1: Installing SST
    G01929550Courtesy of MAZDA MOTORS CORP.
  3. Rotate the crankshaft clockwise until the crankshaft is in the No.1 cylinder TDC position (until the balance weight is contacting to the SST)  .
  4. Hold the crankshaft pulley using the SSTs  .

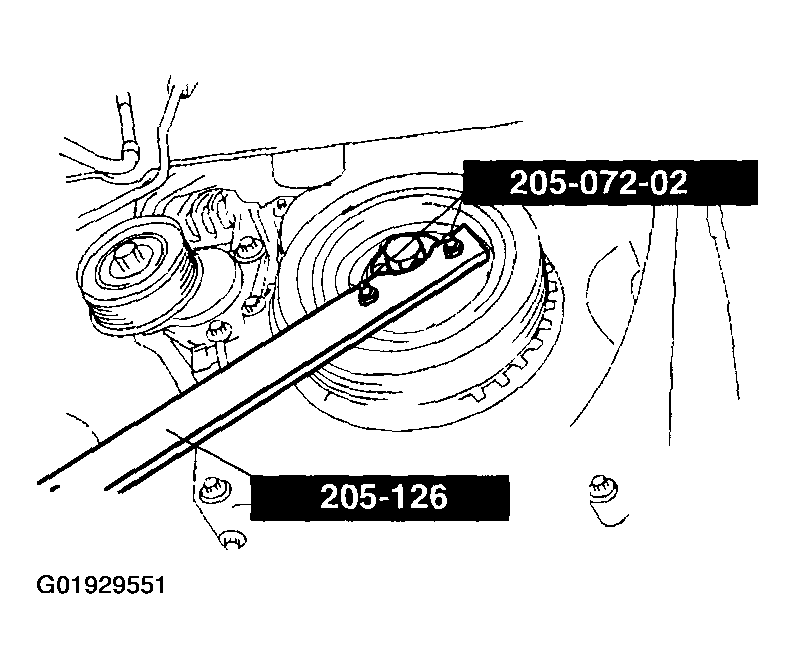

    Fig 2: Holding Crankshaft Pulley
    G01929551Courtesy of MAZDA MOTORS CORP.
