Water Bypass Tube Removal Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water bypass tube installation stud bolt and bolt and disconnect the water bypass tube from the cylinder head.

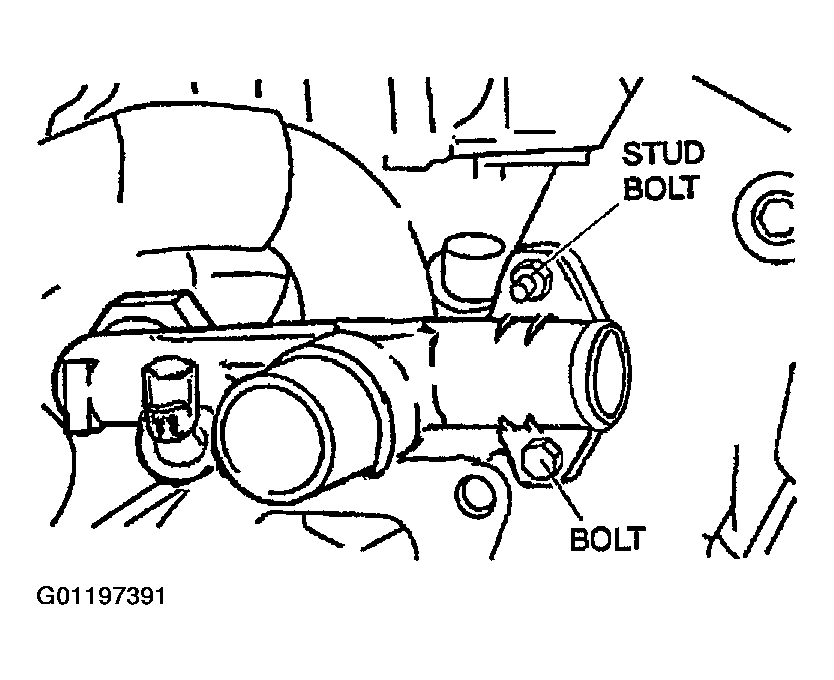

    Fig 1: Removing Water Bypass Tube
    G01197391Courtesy of MAZDA MOTORS CORP.
