Sliding Door Lock Actuator
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Close the rear door glass completely.
- Disconnect the negative battery cable.
- Remove the door screen. See SLIDING DOOR LOCK AND OPENER .
- Disconnect the sliding door lock actuator connector.
- Disconnect the rods and the cables.
- Remove the bolts, and remove the sliding door remote controller.

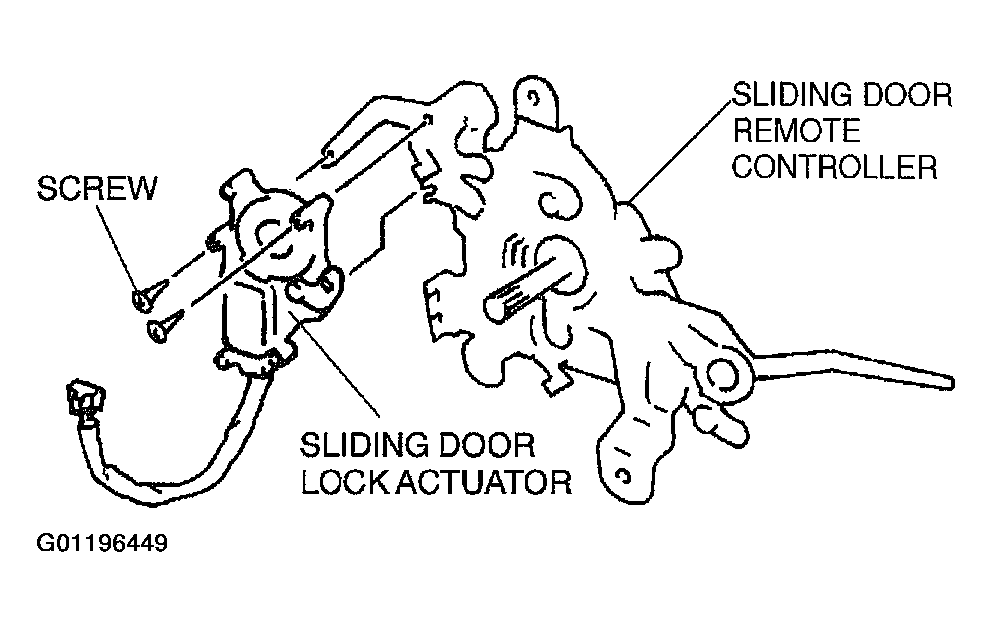

- Remove the screws, and remove the sliding door lock actuator from the sliding door remote controller.
- Install in the reverse order of removal.
