Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

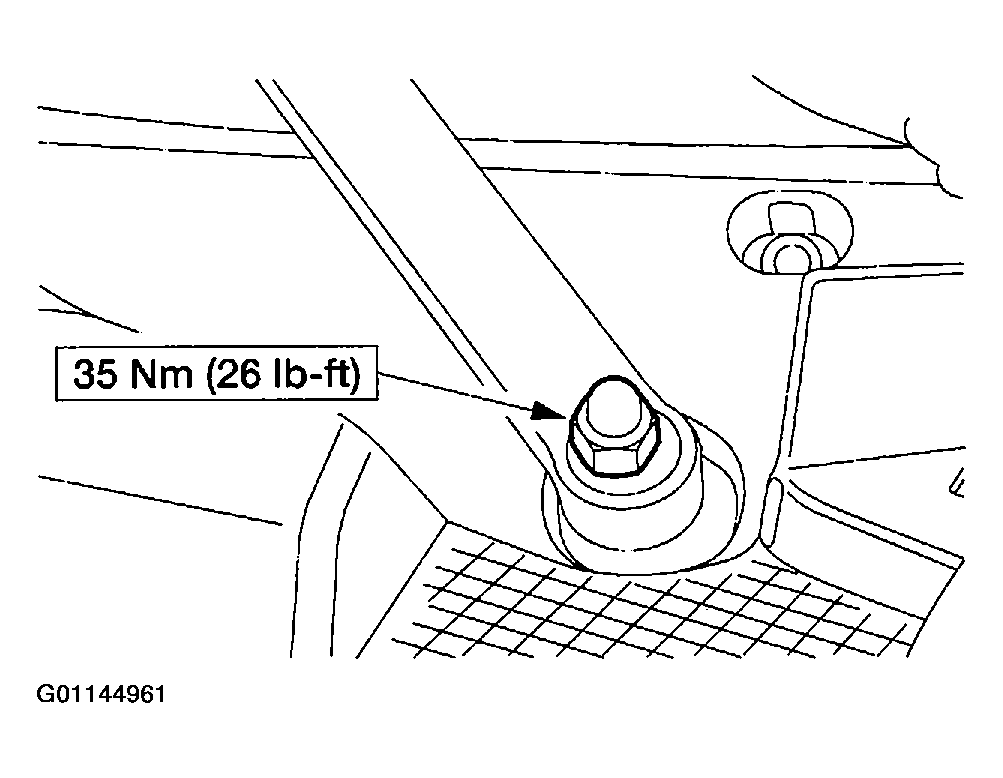

Fig 1: Removing Pivot Arm Nut

Courtesy of MAZDA MOTORS CORP.

Remove the pivot arm nut.

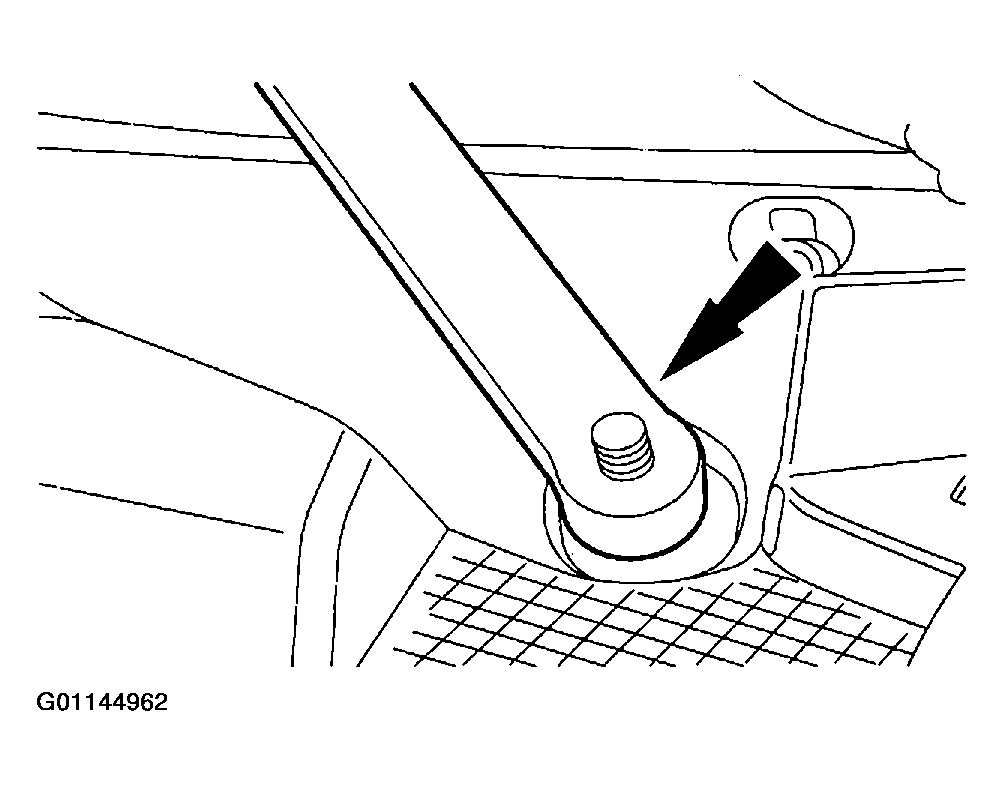

Fig 2: Removing Windshield Wiper Pivot Arm
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper pivot arm.
To install, reverse the removal procedure.
1. Adjust the windshield wiper pivot arms. For additional information, refer to WINDSHIELD WIPER BLADE AND PIVOT ARM ADJUSTMENT .
