Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The windshield wiper/washer switch is part of the multifunction switch assembly.

Remove the steering column shroud.

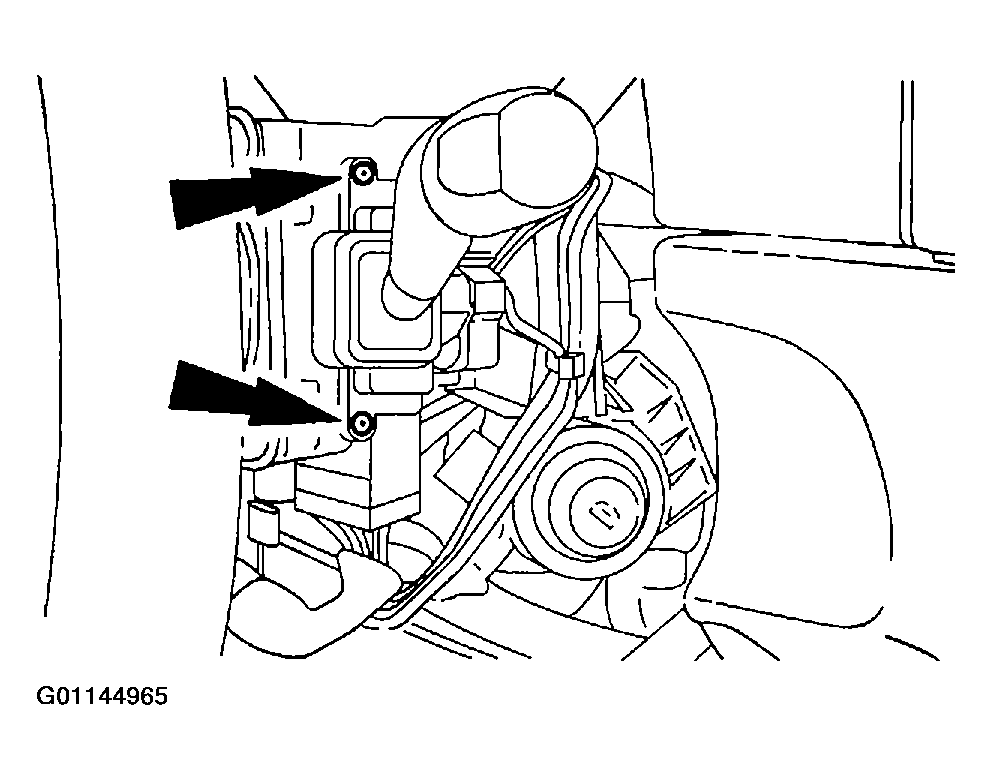

Fig 1: Removing Screws On Windshield Wiper/Washer Switch Mount
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

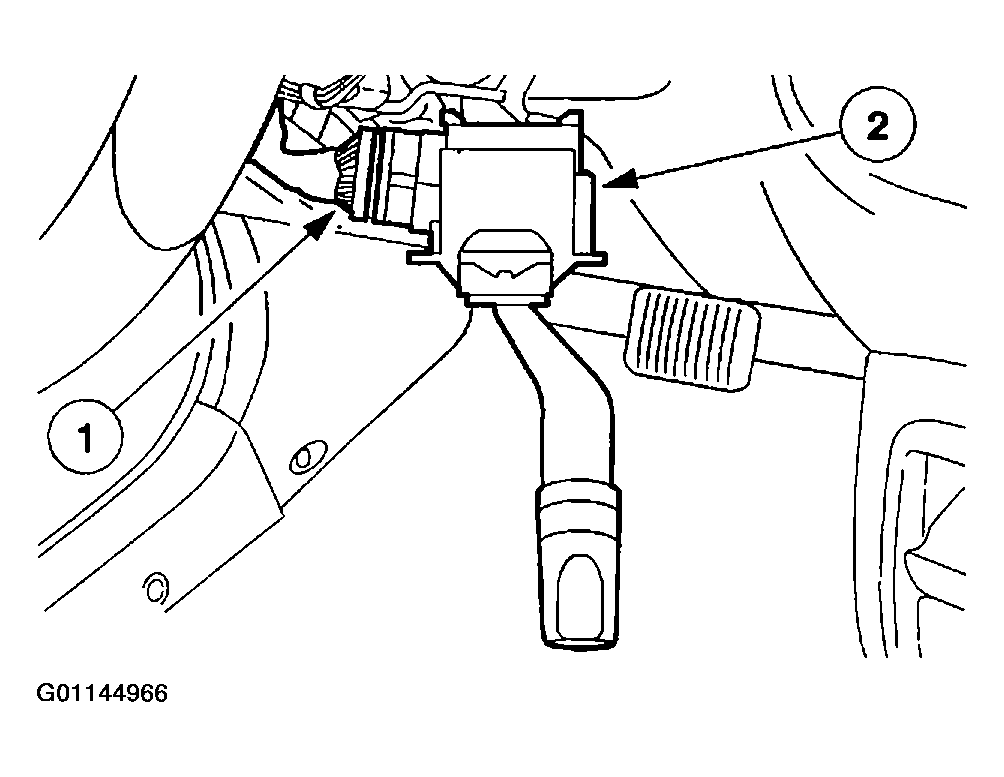

Fig 2: Removing Windshield Wiper/Washer Switch
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper/washer switch.
1. Disconnect the electrical connector.
2. Remove the windshield wiper/washer switch.
