Pinpoint Test 9: The Intermittent Rear Window Wipers Do Not Operate Correctly
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

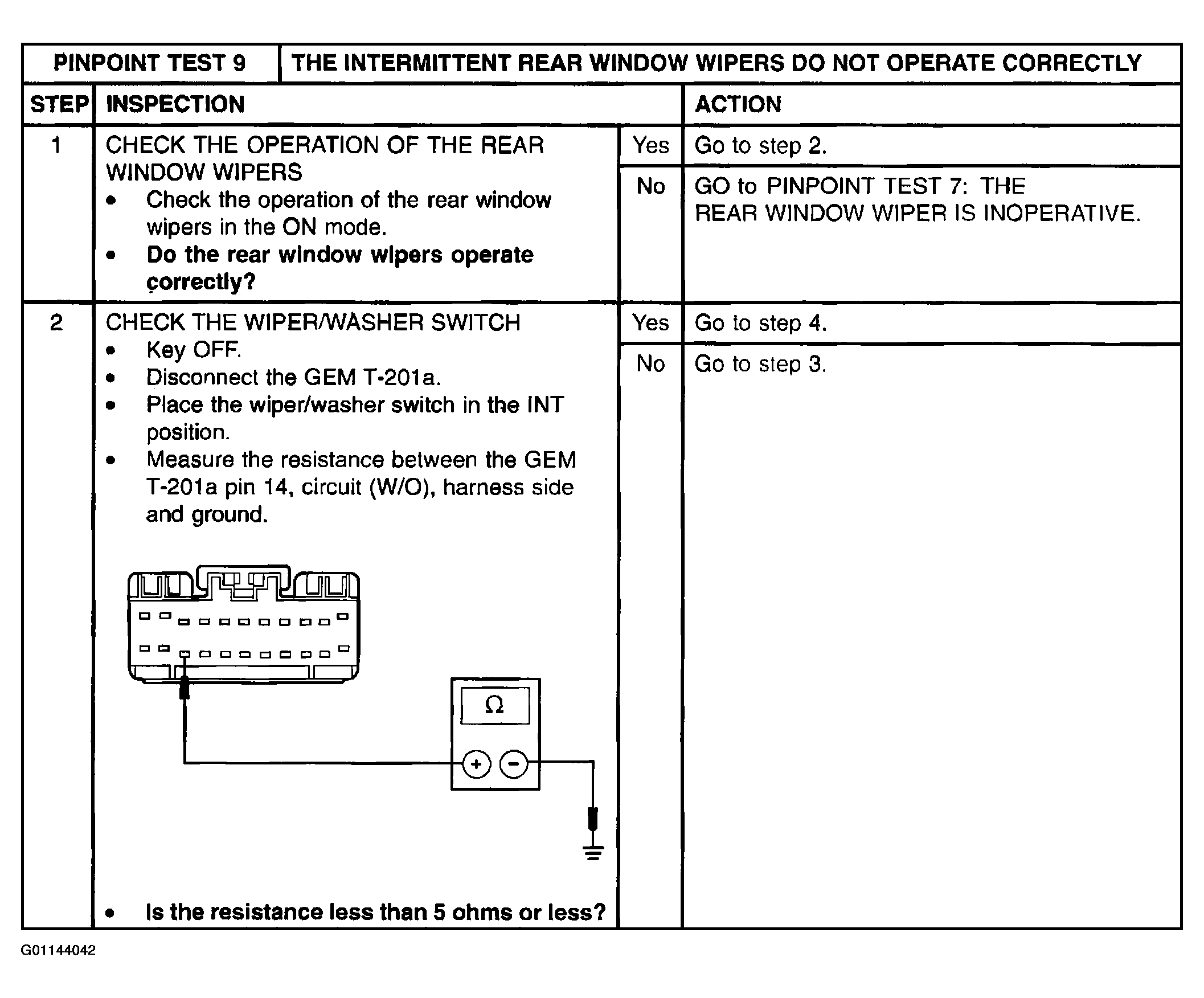

Fig 1: Pinpoint Test 9: The Intermittent Rear Window Wipers Do Not Operate Correctly (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

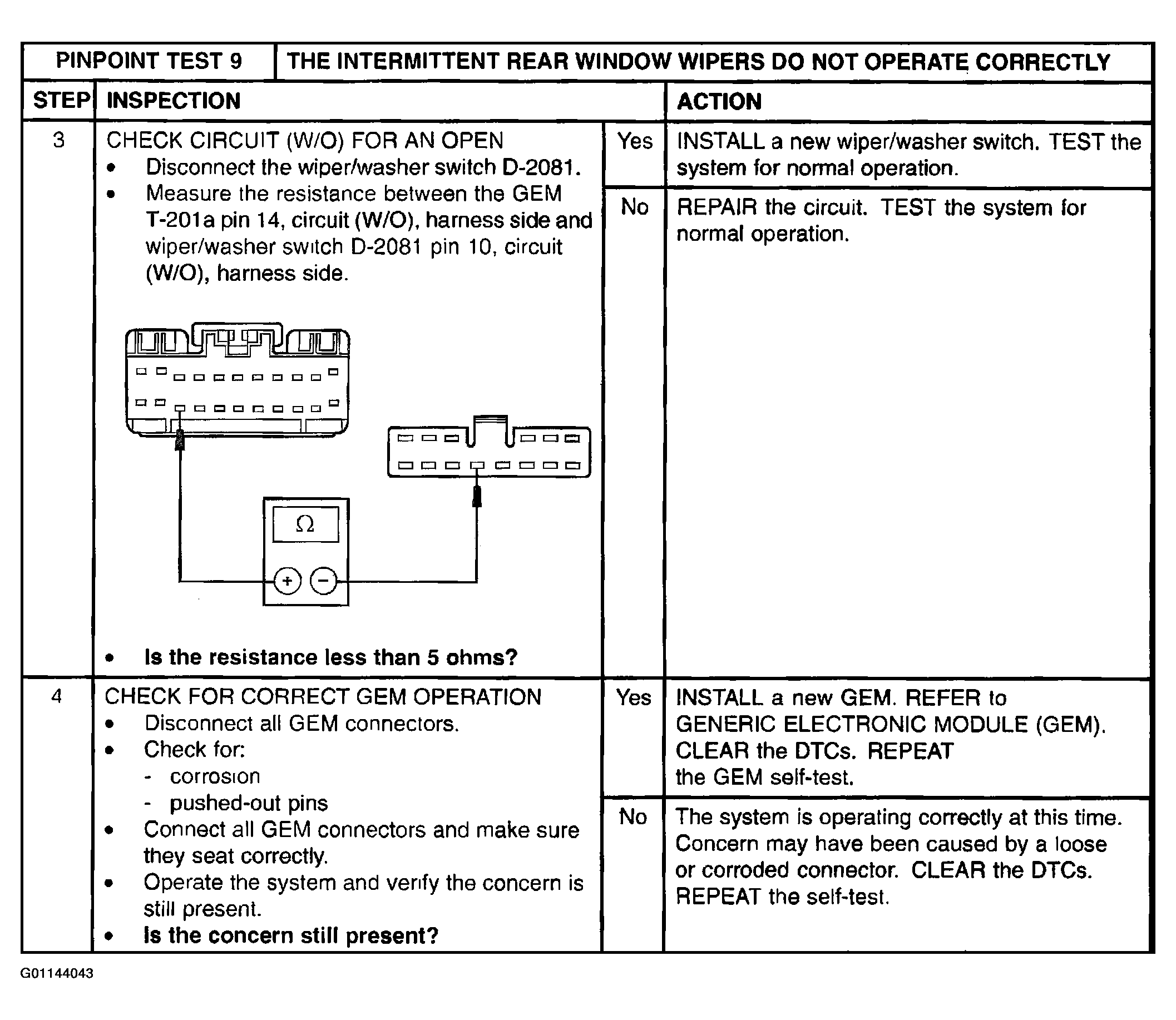

Fig 2: Pinpoint Test 9: The Intermittent Rear Window Wipers Do Not Operate Correctly (Steps 3 & 4)
