Pinpoint Test 7: The Rear Window Wiper Is Inoperative
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

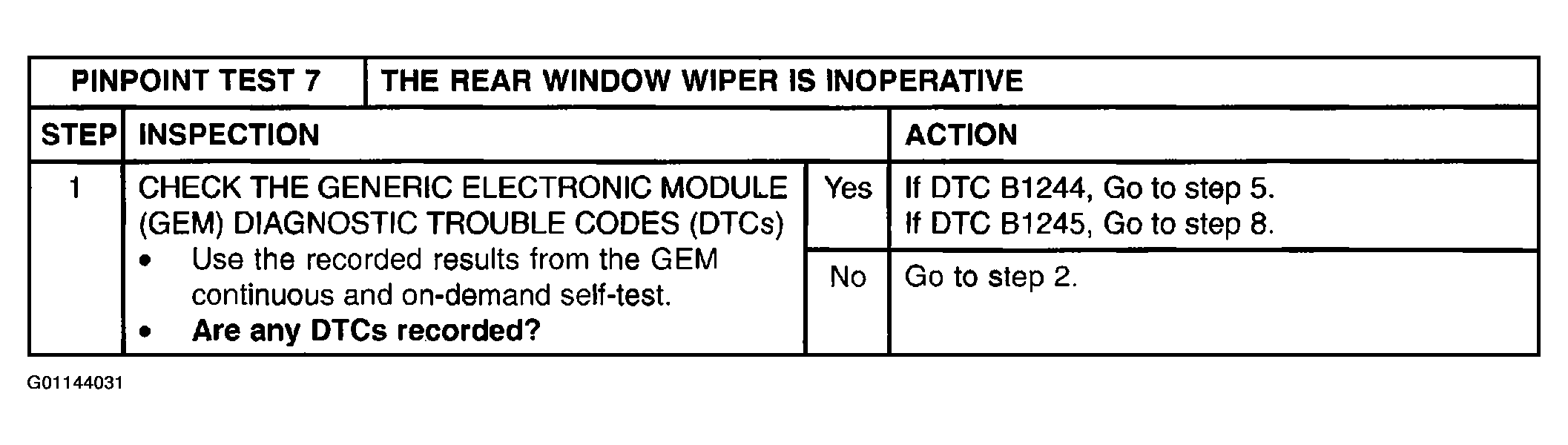

Fig 1: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Step 1)
Courtesy of MAZDA MOTORS CORP.

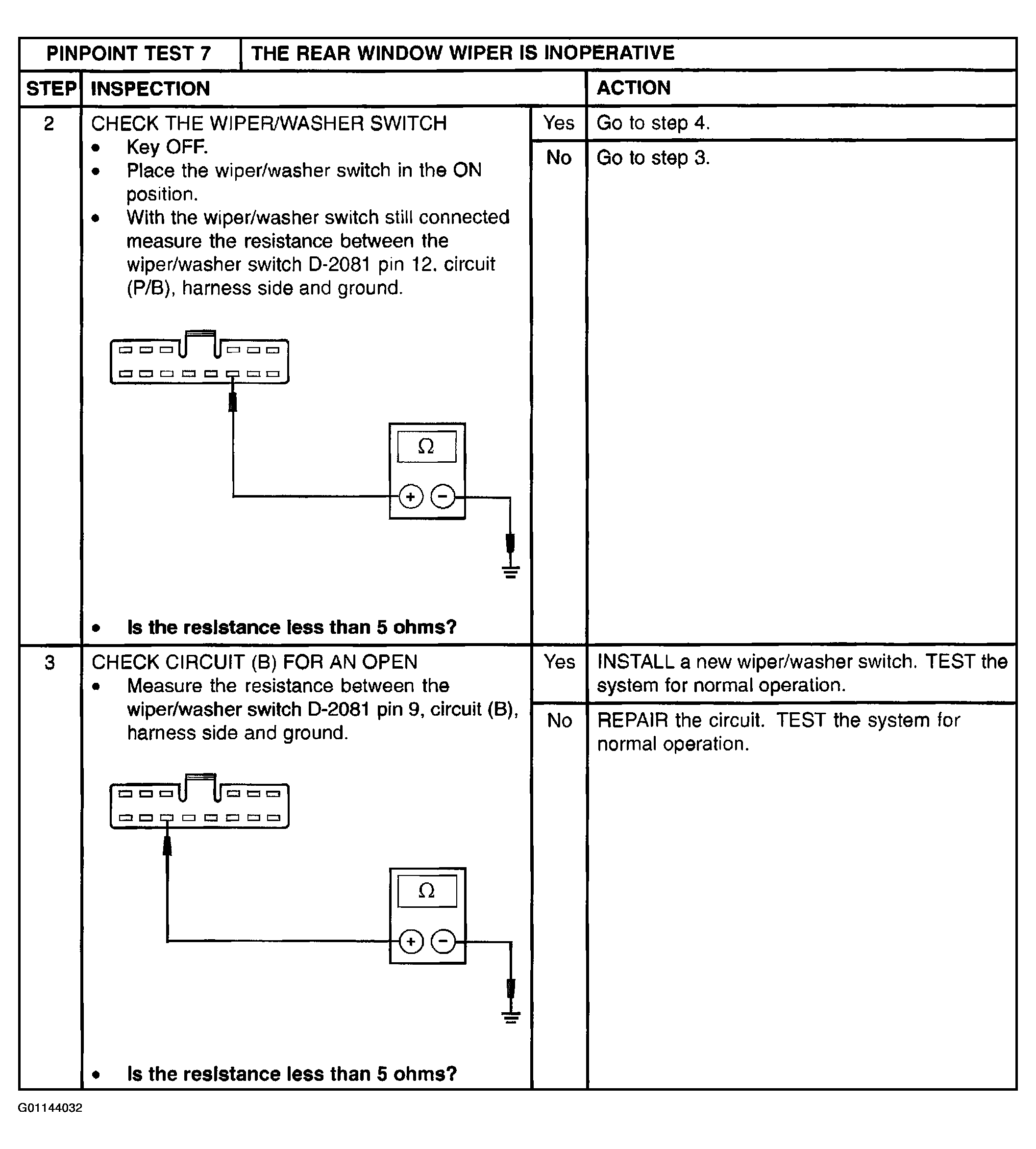

Fig 2: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 2 & 3)
Courtesy of MAZDA MOTORS CORP.

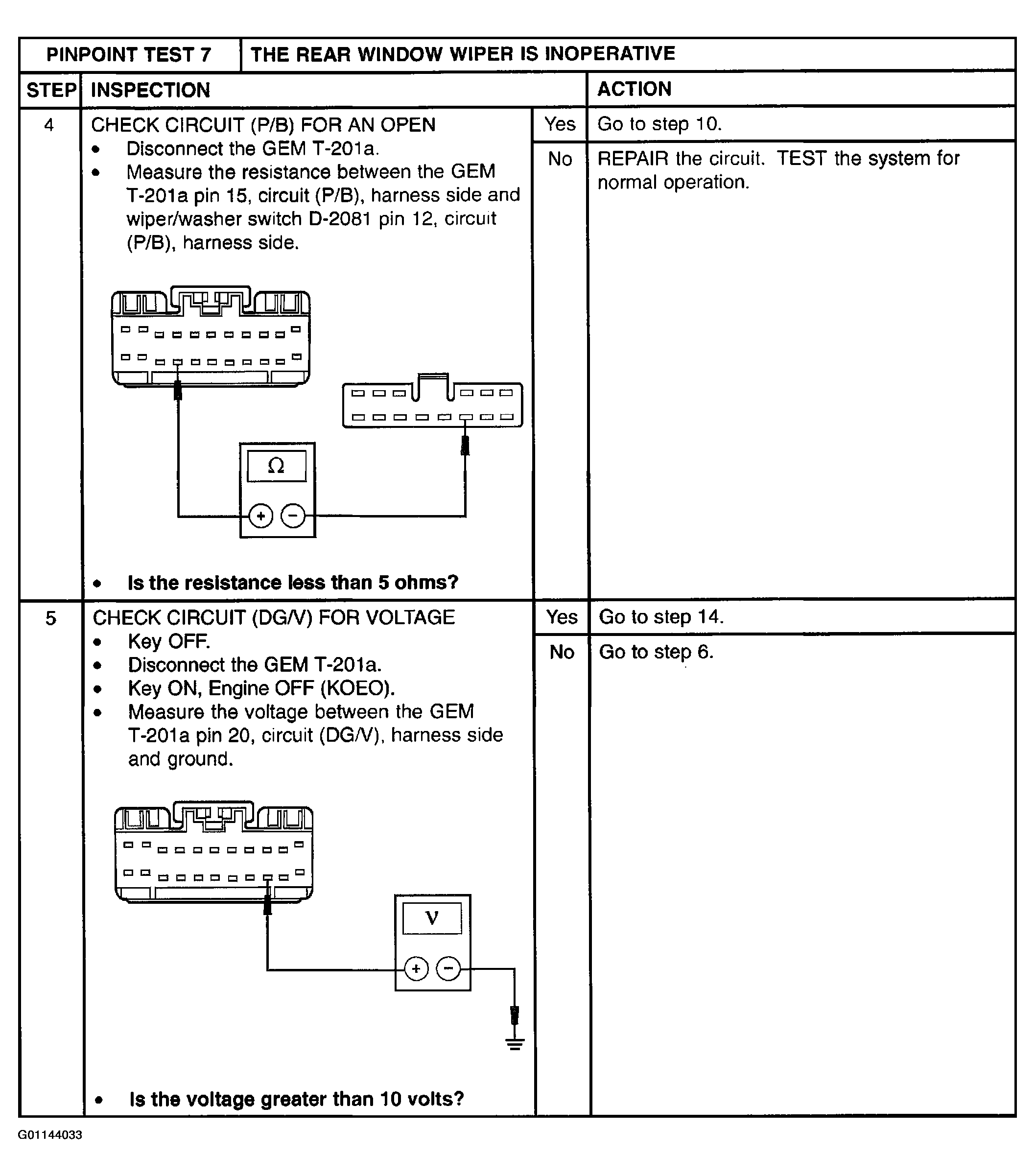

Fig 3: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 4 & 5)
Courtesy of MAZDA MOTORS CORP.

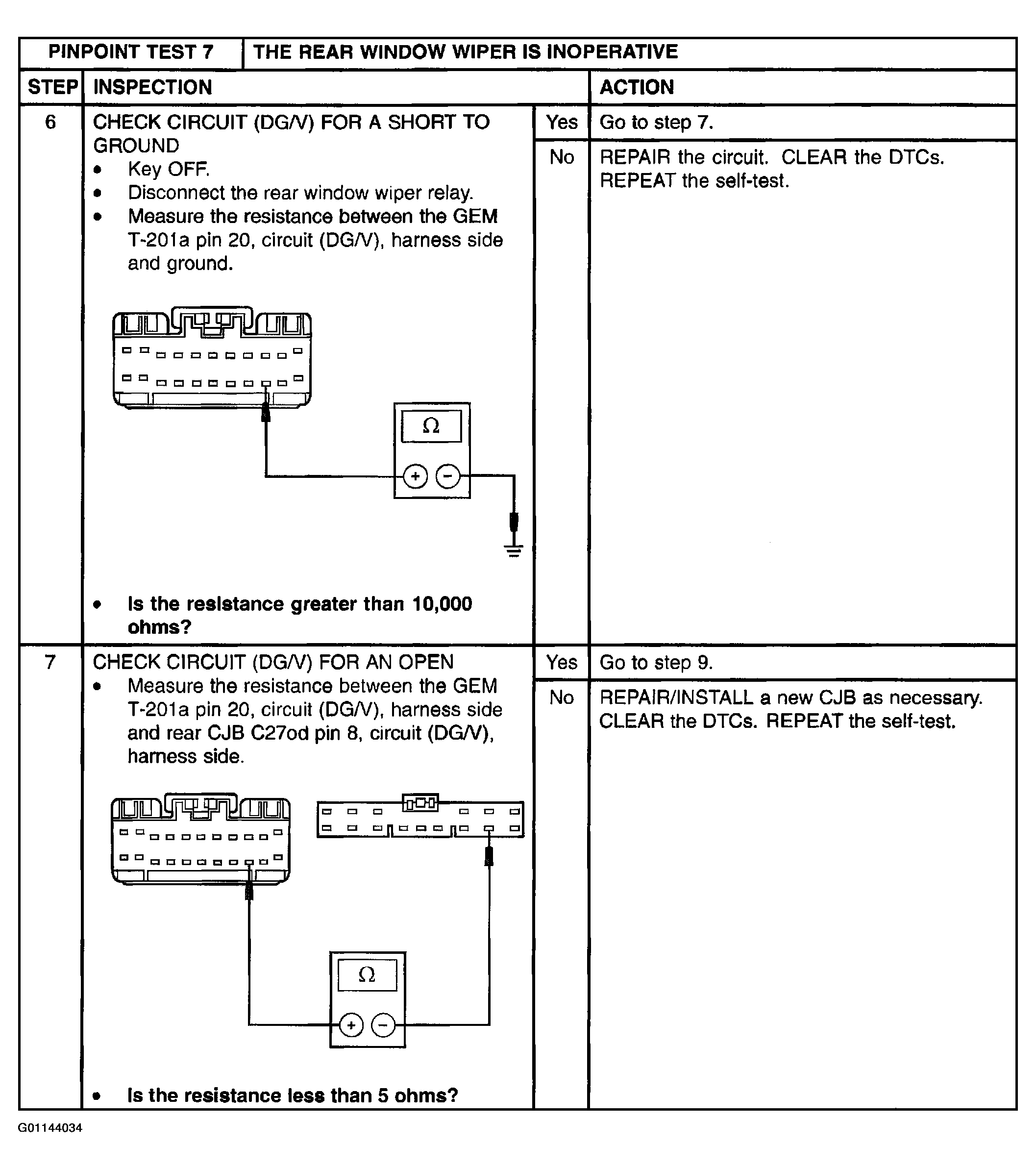

Fig 4: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 6 & 7)
Courtesy of MAZDA MOTORS CORP.

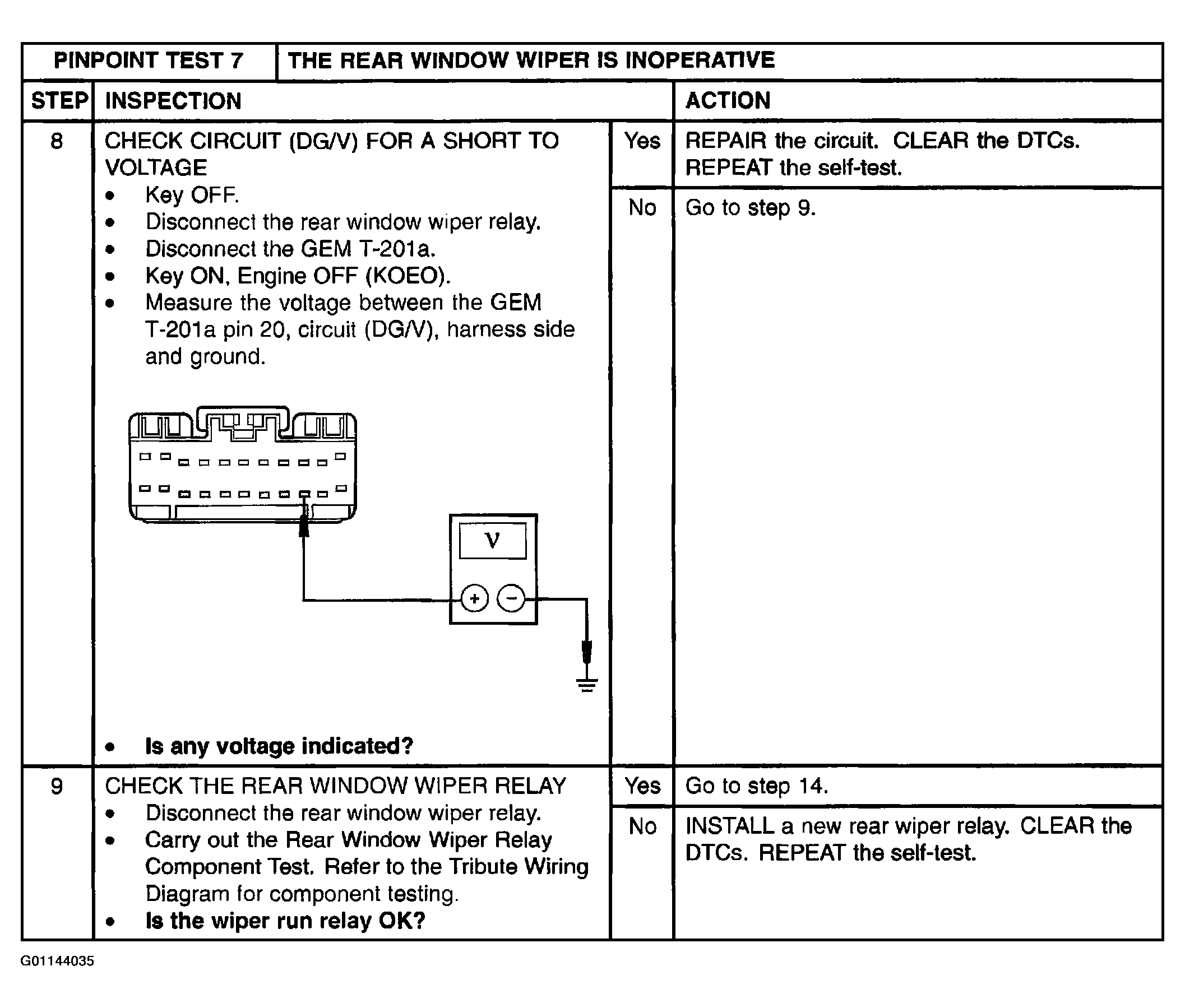

Fig 5: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 8 & 9)
Courtesy of MAZDA MOTORS CORP.

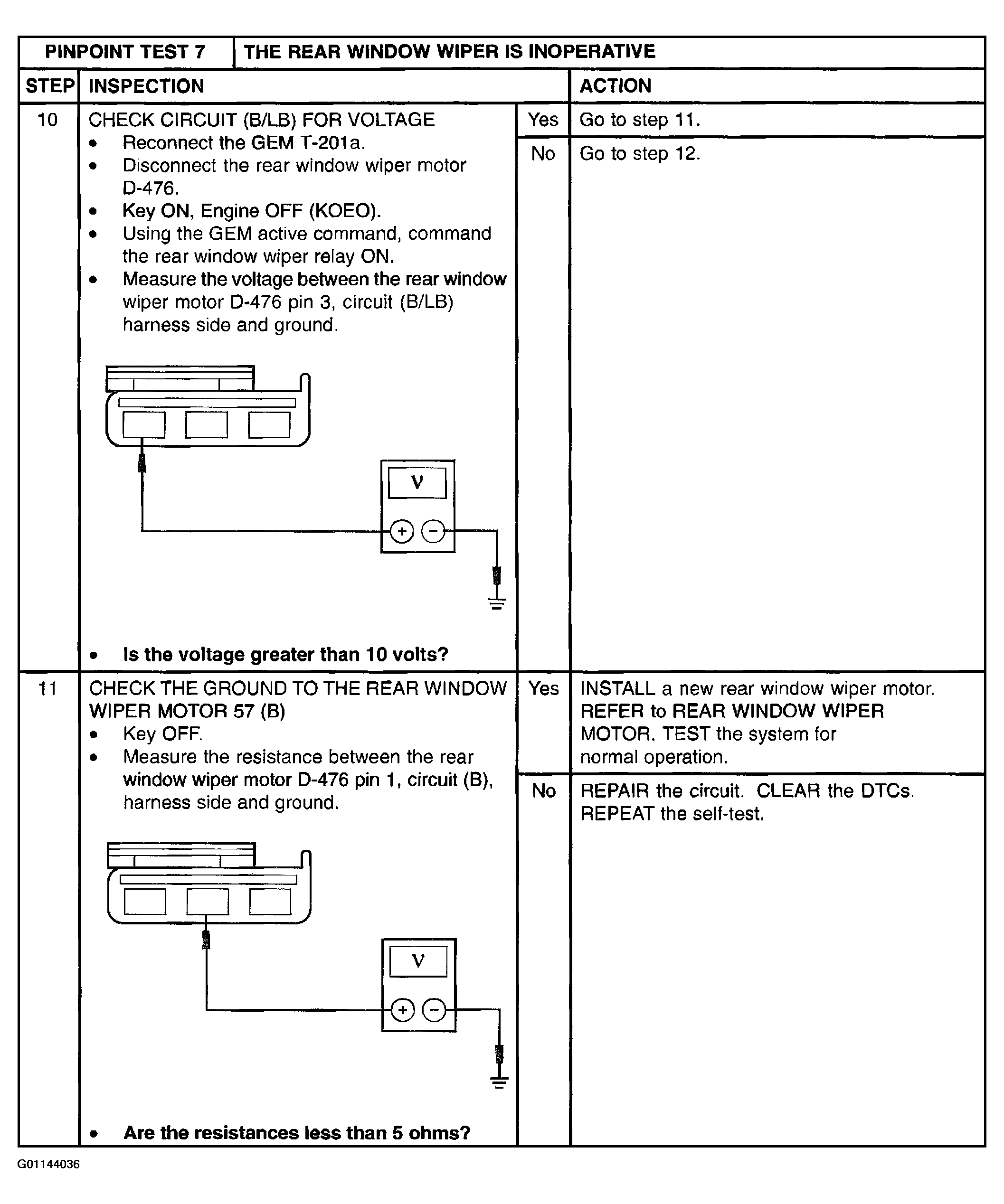

Fig 6: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 10 & 11)
Courtesy of MAZDA MOTORS CORP.

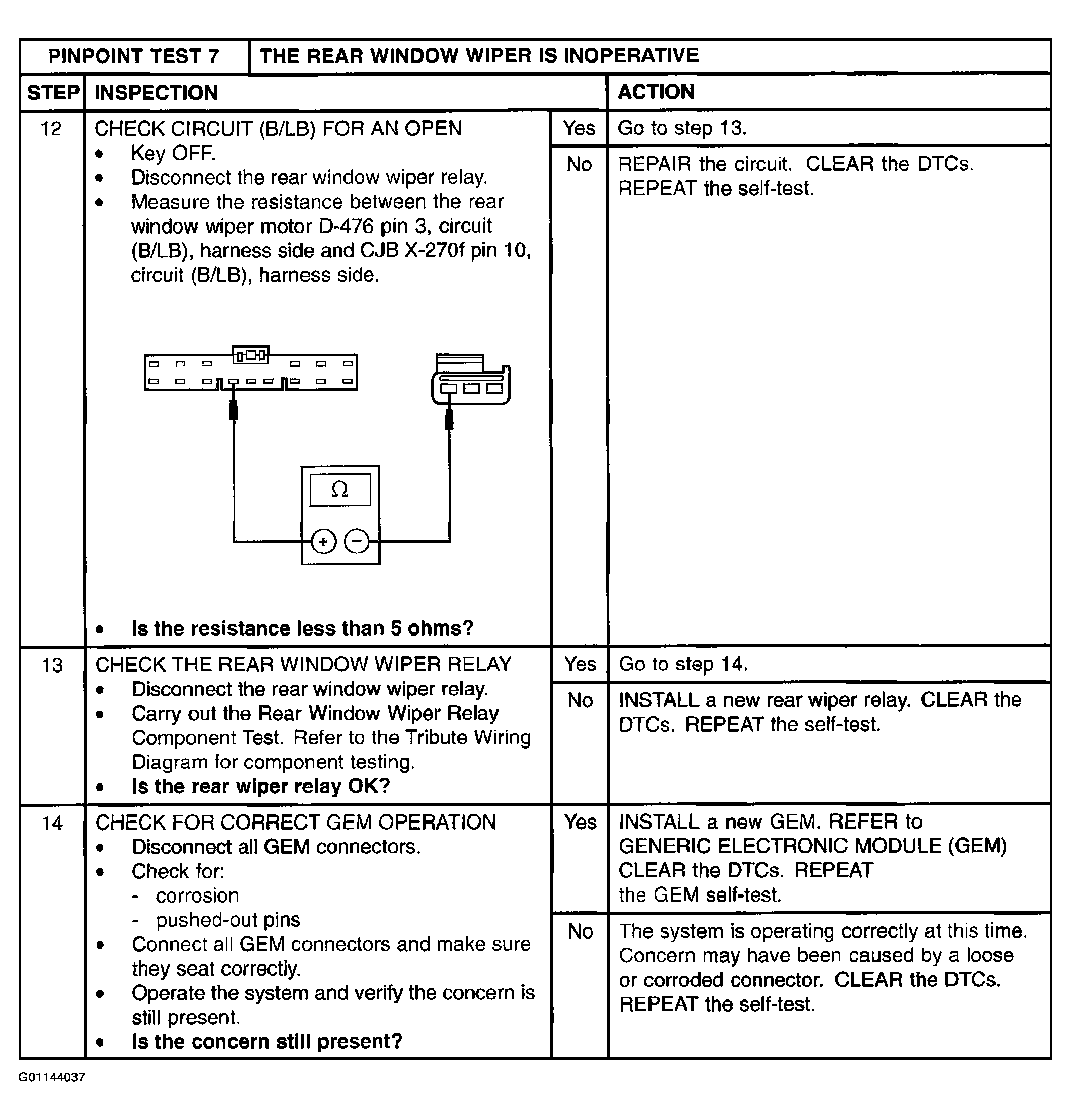

Fig 7: Pinpoint Test 7: The Rear Window Wiper Is Inoperative (Steps 12 To 14)
