Pinpoint Test 11: The Rear Window Washer Pump Is Inoperative
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

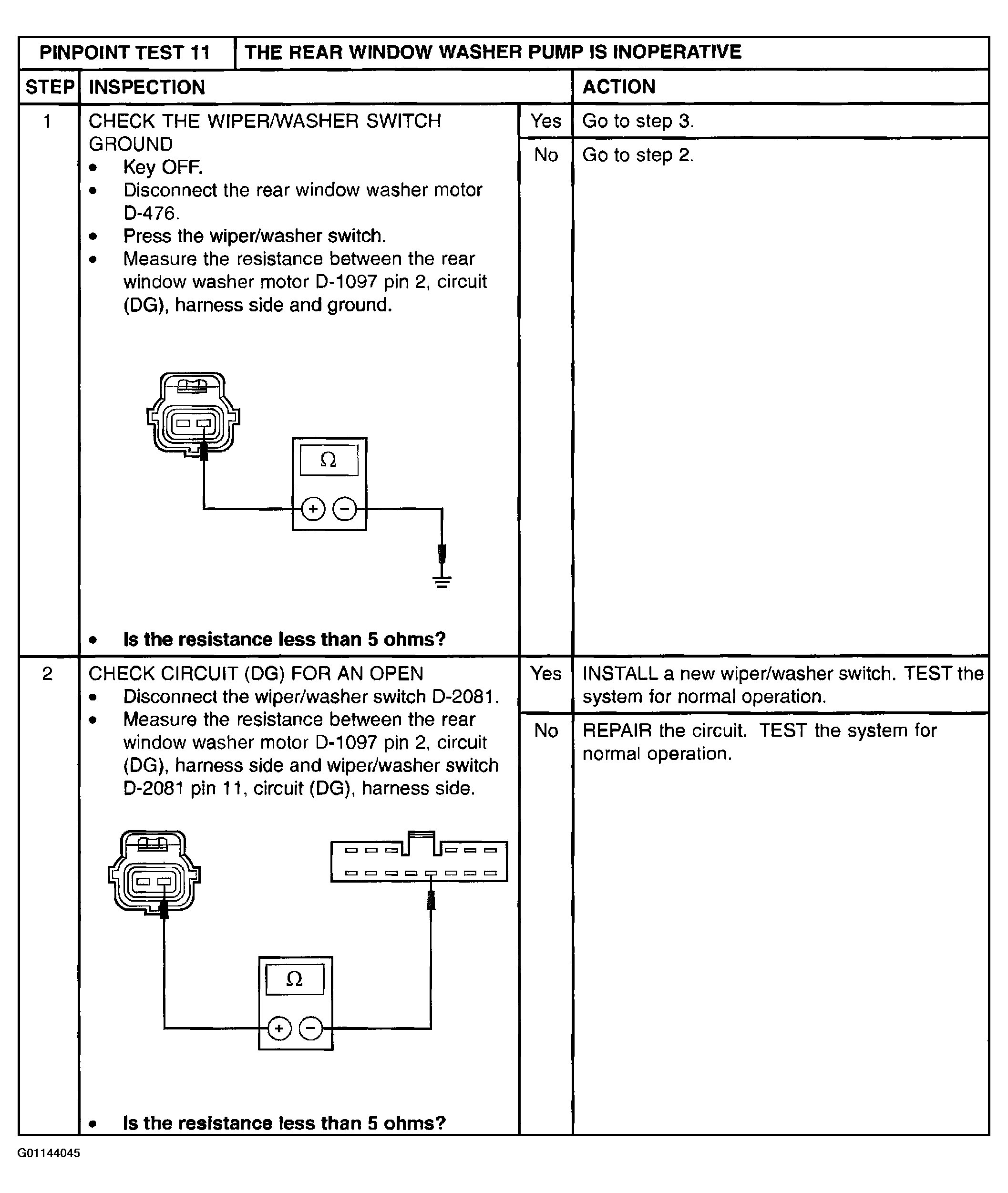

Fig 1: Pinpoint Test 11: The Rear Window Washer Pump Is Inoperative (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

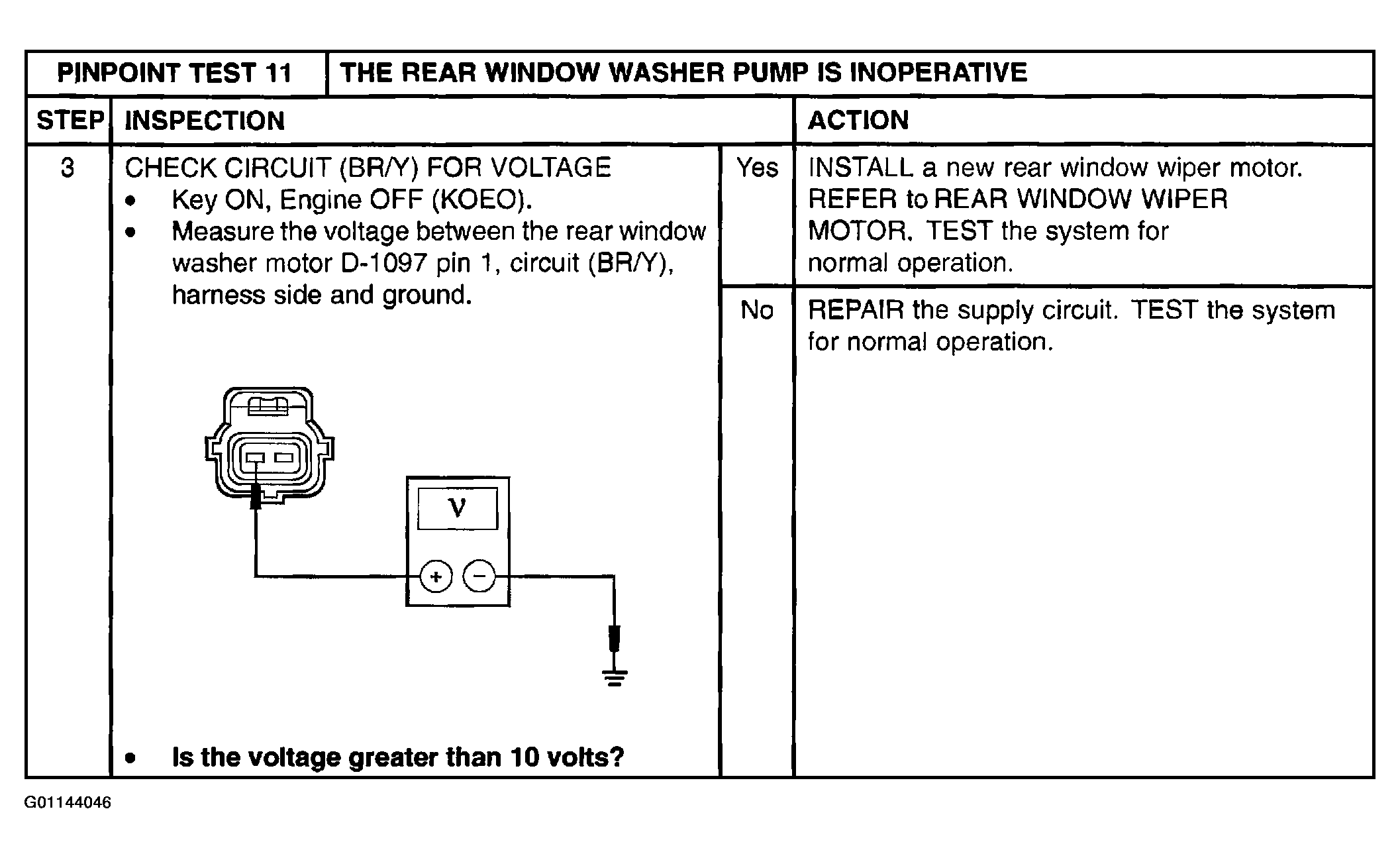

Fig 2: Pinpoint Test 11: The Rear Window Washer Pump Is Inoperative (Step 3)
