Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

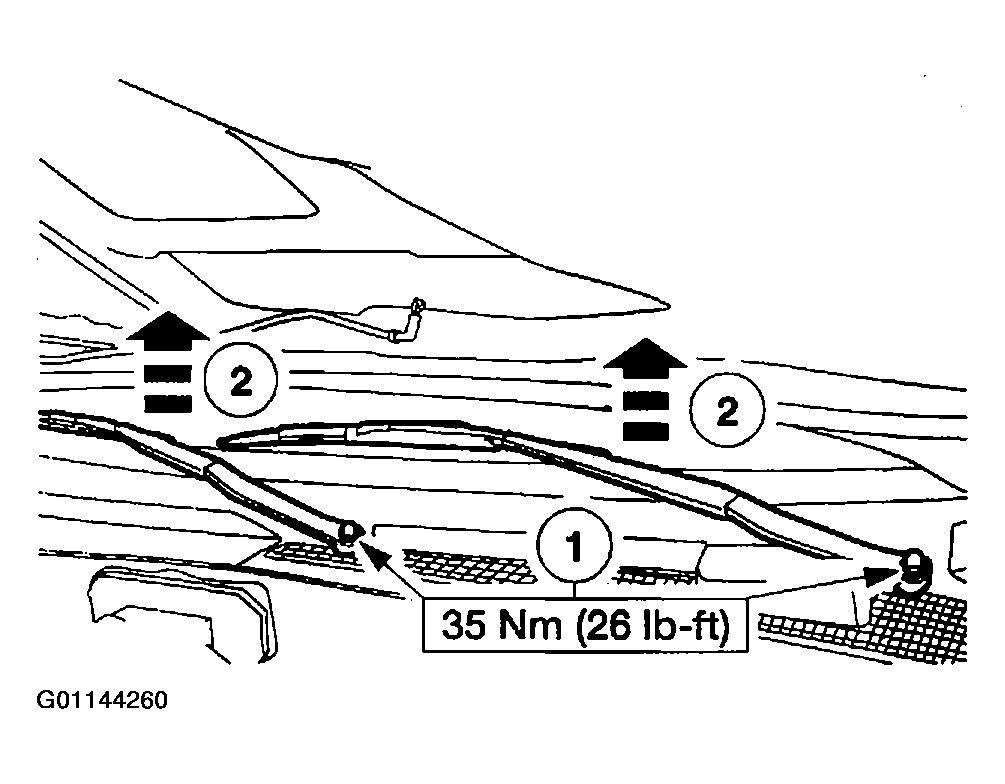

Fig 1: Removing Wiper Pivot Arms

Courtesy of MAZDA MOTORS CORP.

Remove the wiper pivot arms.
1. Remove the nuts.
2. Remove the wiper pivot arms.

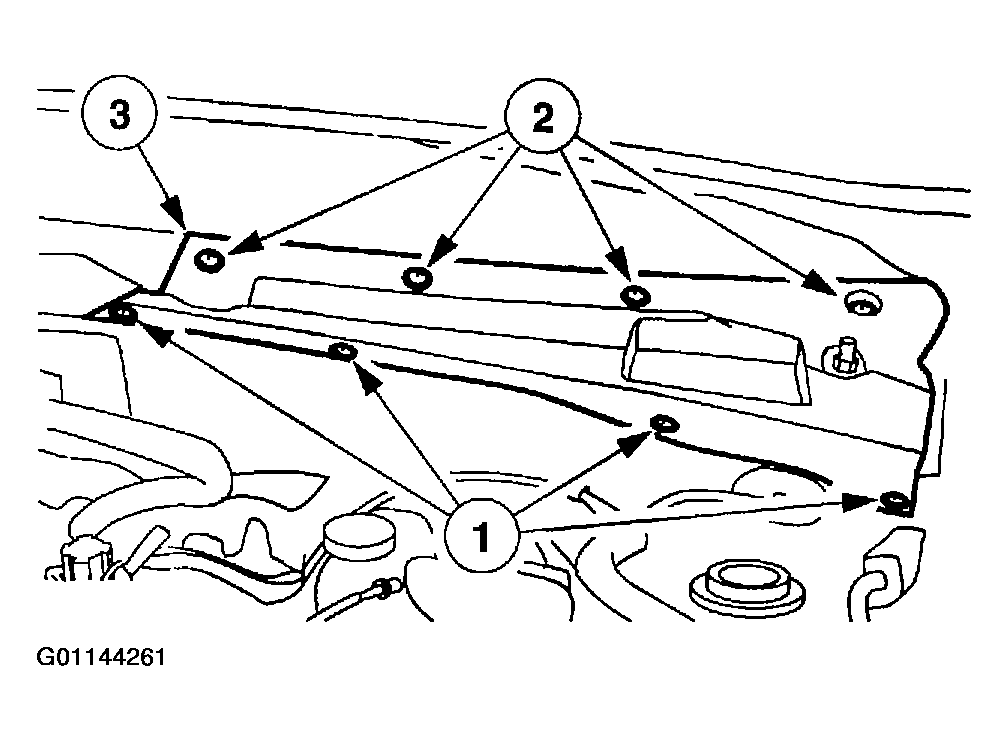

  Fig 2: Removing Driver-Side Cowl Grille
  Courtesy of MAZDA MOTORS CORP.
Remove the driver-side cowl grille.
1. Remove the pin-type retainers.
2. Remove the screw caps and screws.
3. Remove the cowl grille.

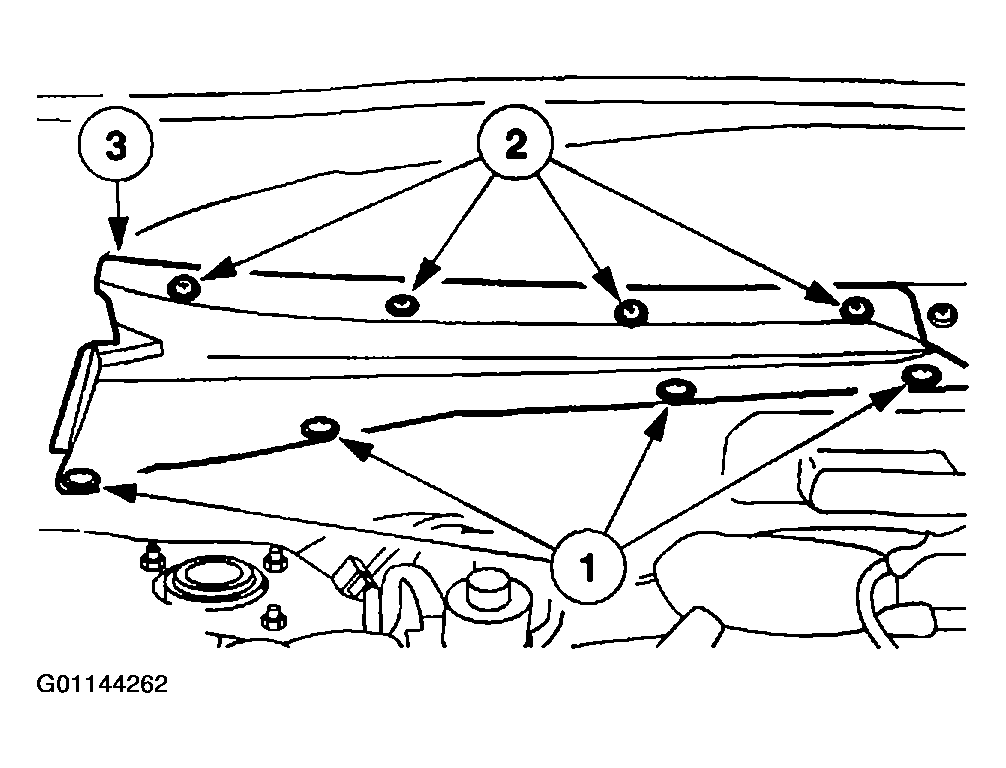

  Fig 3: Removing Passenger-Side Cowl Grille
  Courtesy of MAZDA MOTORS CORP.
Remove the passenger-side cowl grille.
1. Remove the pin-type retainers.
2. Remove the screw caps and screws.
3. Remove the cowl grille.
To install, reverse the removal procedure.
