Disassembly and Assembly

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

All rear seat backrests similar.

Remove the rear seat backrest. For additional information, refer to REAR SEAT BACKREST - SPLIT BENCH or REAR SEAT BACKREST - BENCH .

Fig 1: Removing Rear Seat Headrest
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the rear seat headrest(s).

Fig 2: Removing Side Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the side trim panel(s).

Fig 3: Unhooking Seat Backrest Trim Cover J-Clip
Courtesy of MAZDA MOTORS CORP.
Unhook the seat backrest trim cover J-clip.

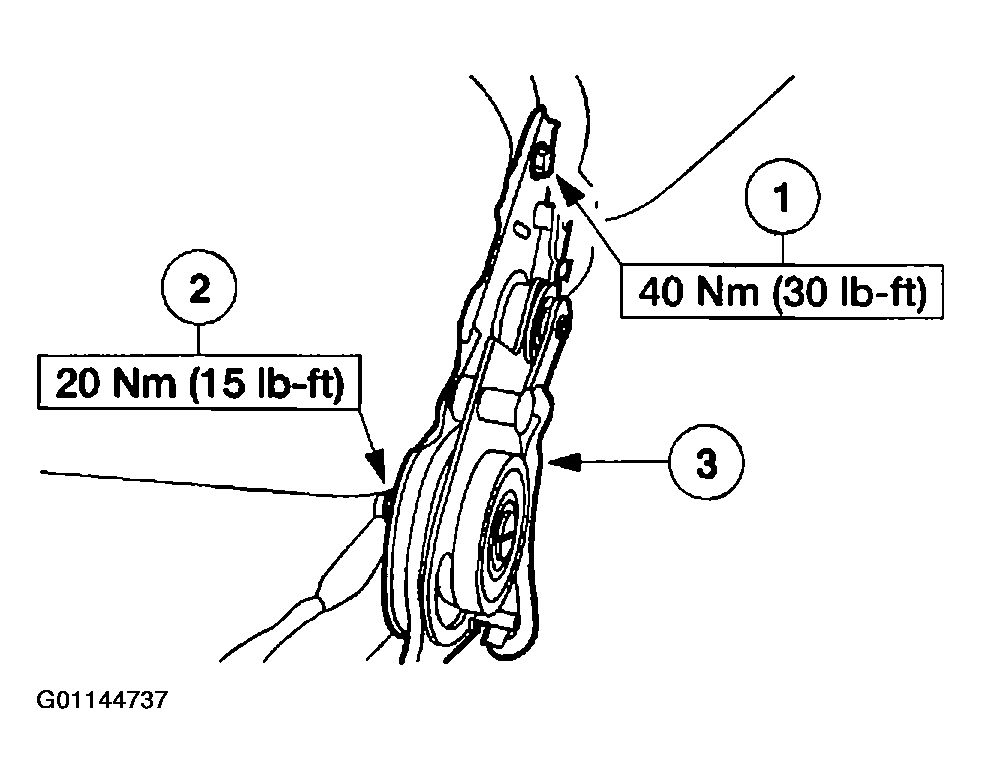

Fig 4: Removing Rear Seat Backrest Latch
Courtesy of MAZDA MOTORS CORP.
Remove the rear seat backrest latch(es).
1. Remove the bolt(s).
2. Remove the nut(s).
3. Remove the rear seat backrest latch(s).

  Fig 5: Unzipping Rear Seat Cushion Trim
  Courtesy of MAZDA MOTORS CORP.
Unzip the rear seat backrest trim.

Fig 6: Removing Headrest Guide Posts
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the headrest guide posts.

Fig 7: Removing Rear Seat Cushion Trim
Courtesy of MAZDA MOTORS CORP.
Remove the seat backrest trim cover.
Remove the seat backrest frame from the seat backrest foam.
To assemble, reverse the disassembly procedure.
