Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat backrest. For additional information, refer to REAR SEAT BACKREST - SPLIT BENCH  or REAR SEAT BACKREST - BENCH  .
    Fig 1: Removing Side Trim Panel
    G01144748Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear seat backrest side trim panel.

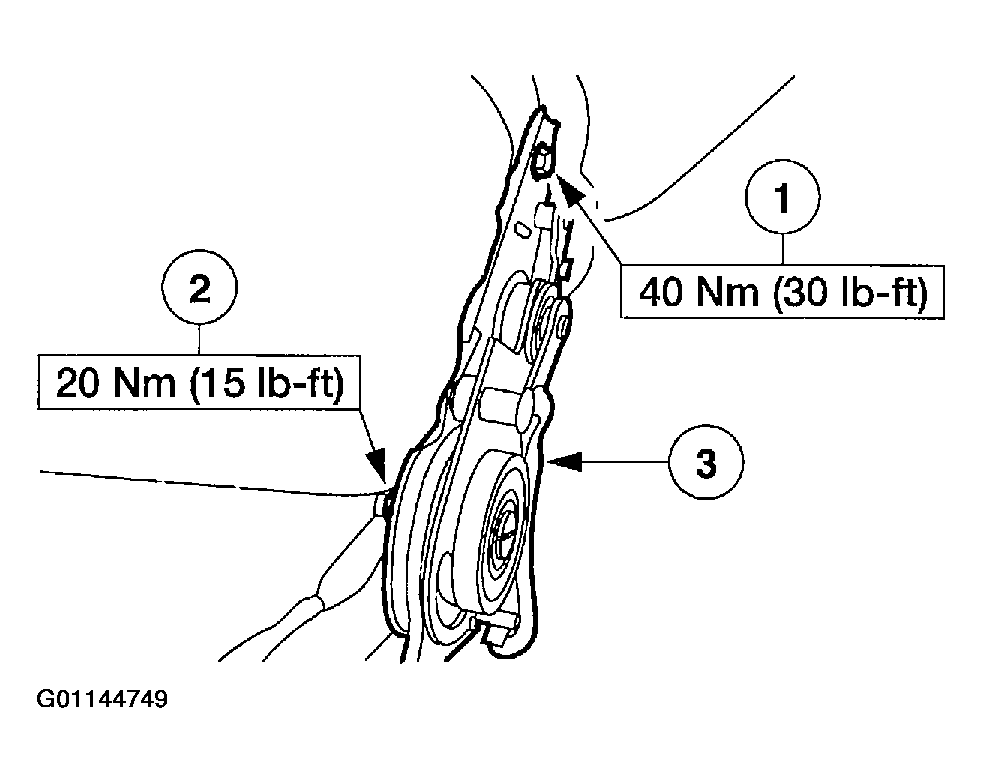

    Fig 2: Removing Rear Seat Backrest Latch
    G01144749Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear seat backrest latch.
    1. Remove the bolt.
    2. Remove the nut.
    3. Remove the latch.
  4. To install, reverse the removal procedure.
