Rear Seat Backrest - Split Bench: Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The 60% rear seat backrest must be installed before the 40% rear seat backrest.

60% rear seat backrest

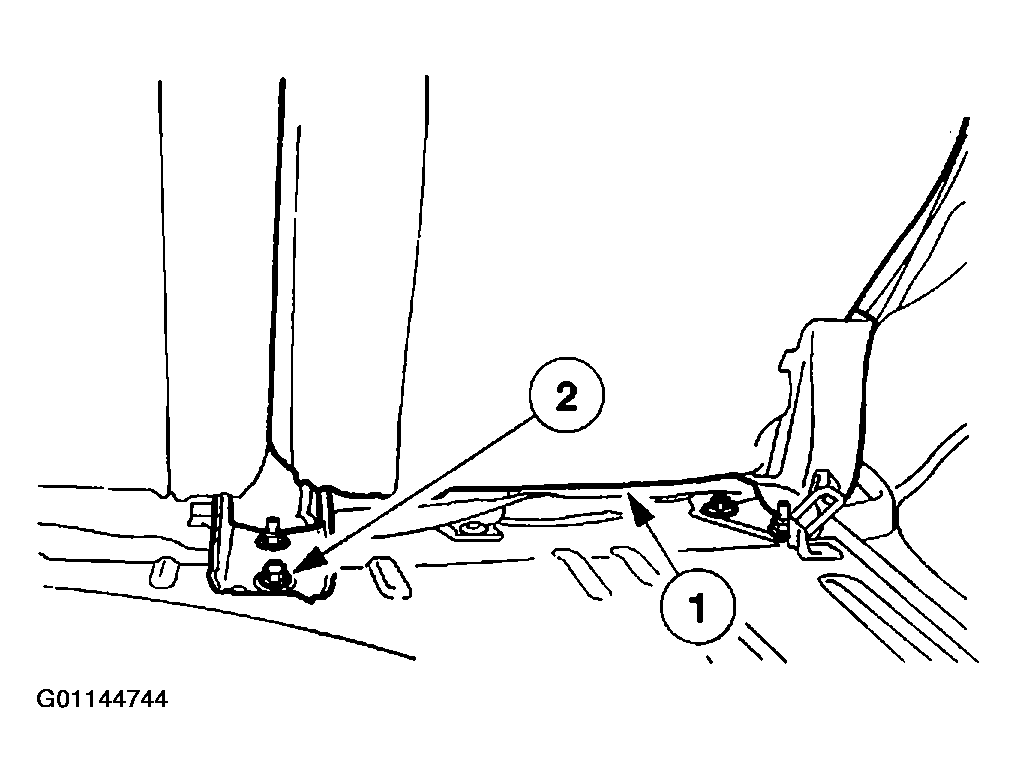

Fig 1: Installing Rear Seat Backrest Nuts And Bolts

Courtesy of MAZDA MOTORS CORP.

NOTE:

Do not tighten the nut and bolt at this time.

Install the 60% rear seat backrest.
1. Install the rear seat backrest.
2. Install the nut and bolt.
  40% rear seat backrest

  Fig 2: Installing Rear Seat Backrest Nuts And Bolts
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - Do not tighten the nuts and bolts at this time.
Install the 40% rear seat backrest.
1. Install the rear seat backrest.
2. Install the nuts and bolts.
  60/40% rear seat backrest

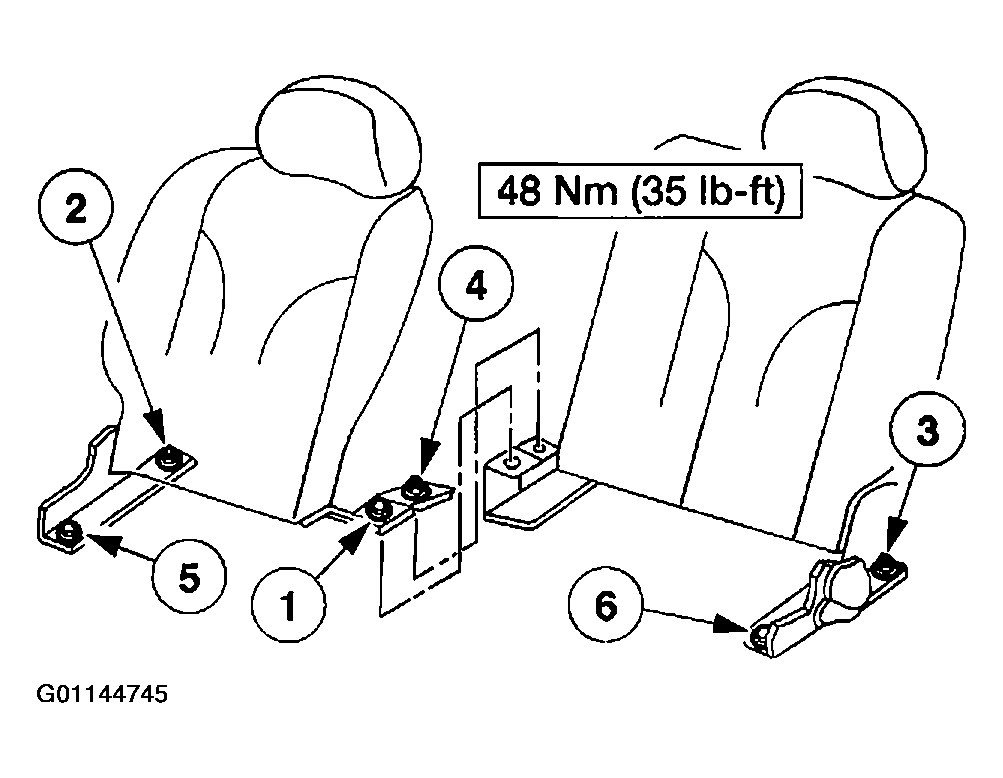

  Fig 3: Tightening Rear Seat Backrest Nuts And Bolts
  Courtesy of MAZDA MOTORS CORP.
Tighten the 60/40% rear seat backrest nuts and bolts in the sequence shown.
40% Rear Seat Backrest

Fig 4: Tightening Rear Seat Backrest Nuts And Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the 40% rear seat backrest nuts and bolts in the sequence shown.
