Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

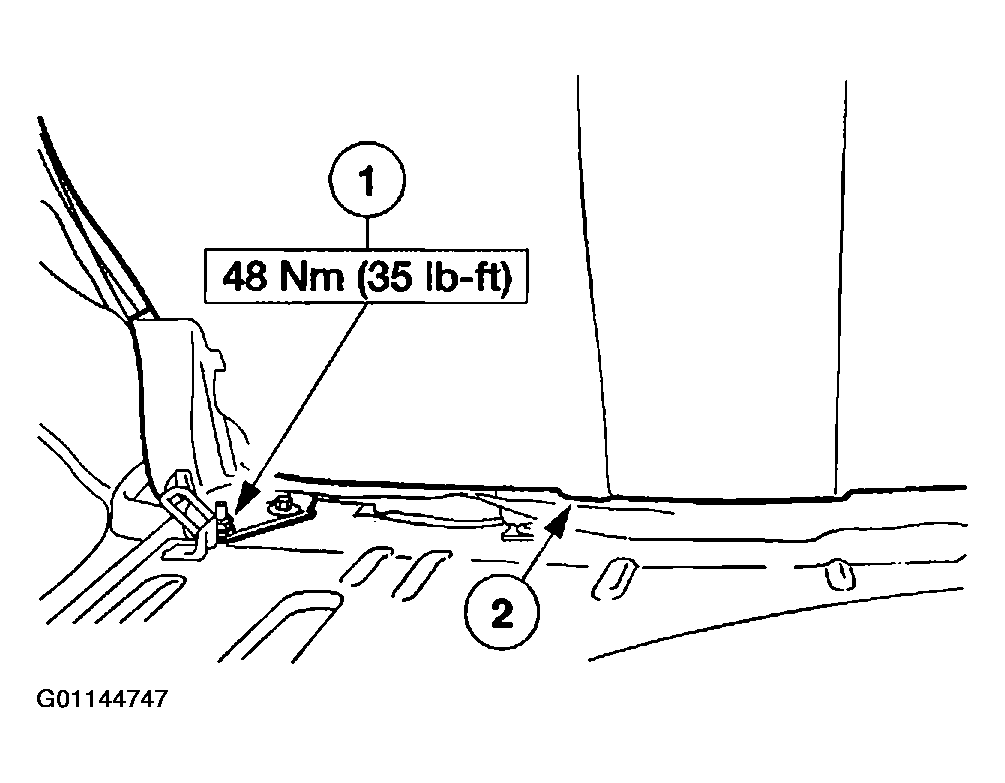

Fig 1: Removing Rear Seat Backrest Nuts And Bolts
G01144747Courtesy of MAZDA MOTORS CORP.
  1. Remove the rear seat backrest.
    1. Remove the two nuts and two bolts.
    2. Remove the rear seat backrest.
  2. To install, reverse the removal procedure.
