Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL .

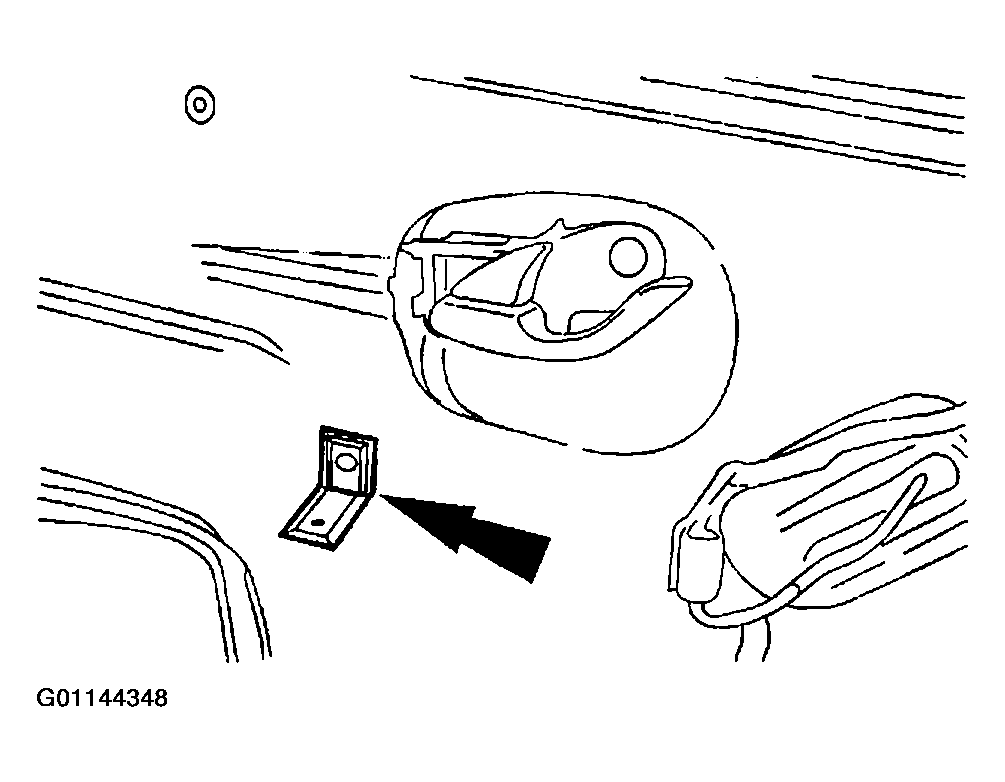

Fig 1: Removing Rear Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the screw and the rear door trim panel bracket.
Position the water shield aside.
Vehicles with power windows

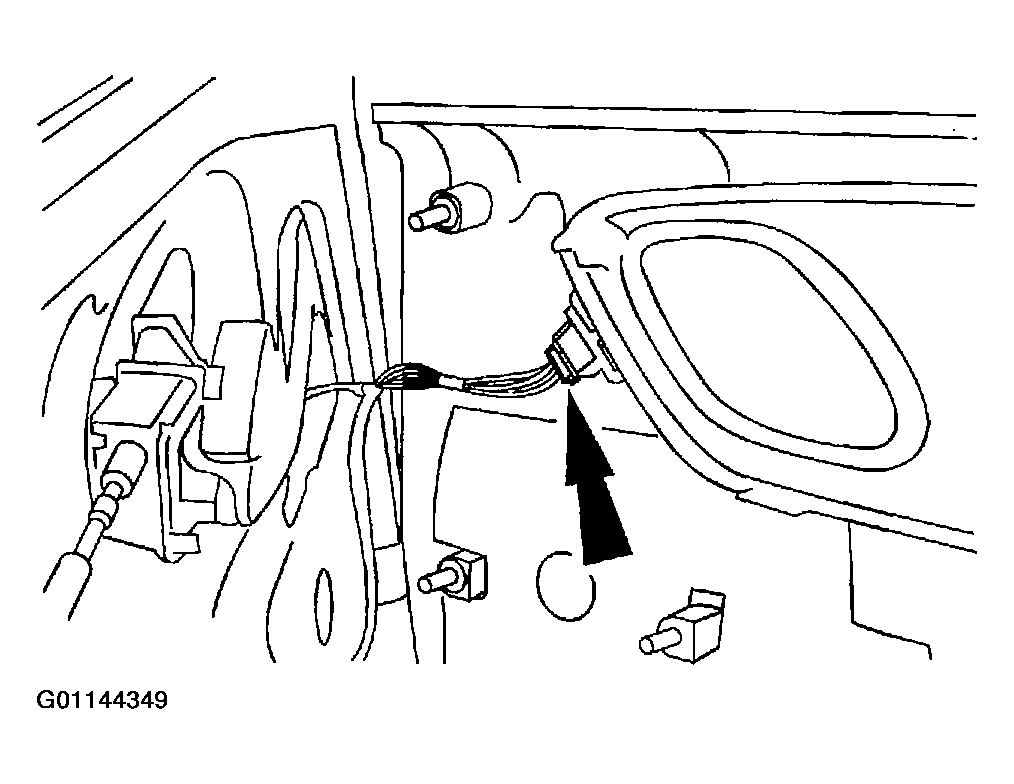

Fig 2: Connecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the window control switch electrical connector.
All vehicles
Lower the rear door window glass to gain access to the screws.
Vehicles with power windows

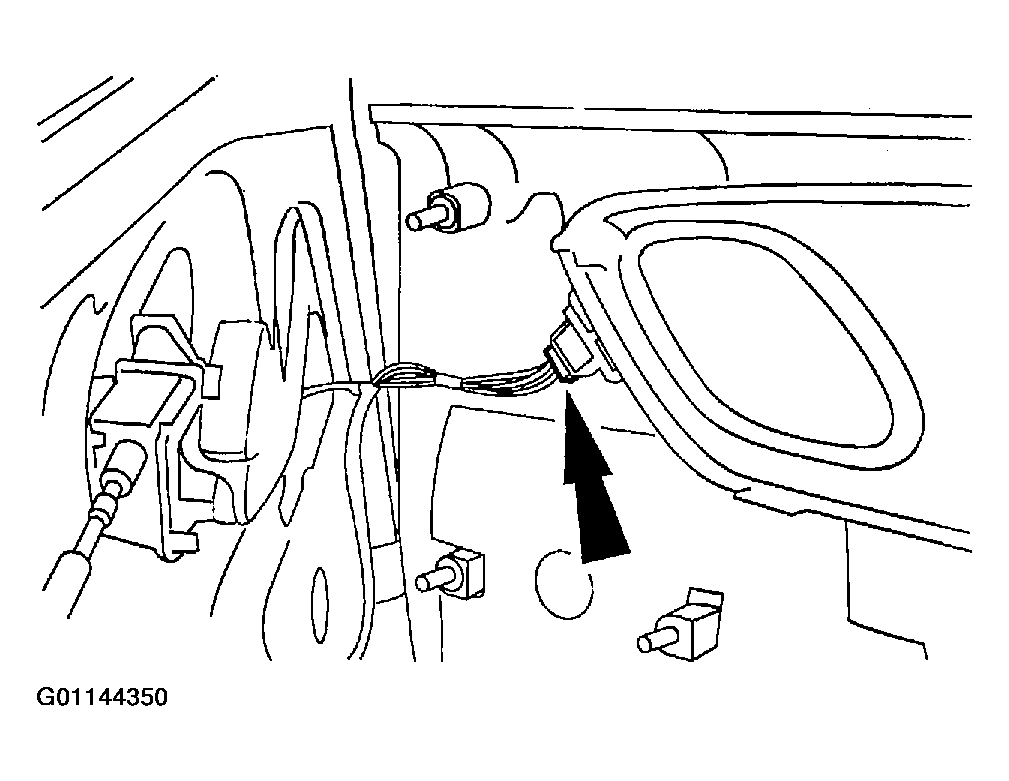

Fig 3: Disconnecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the window control switch electrical connector.
All vehicles

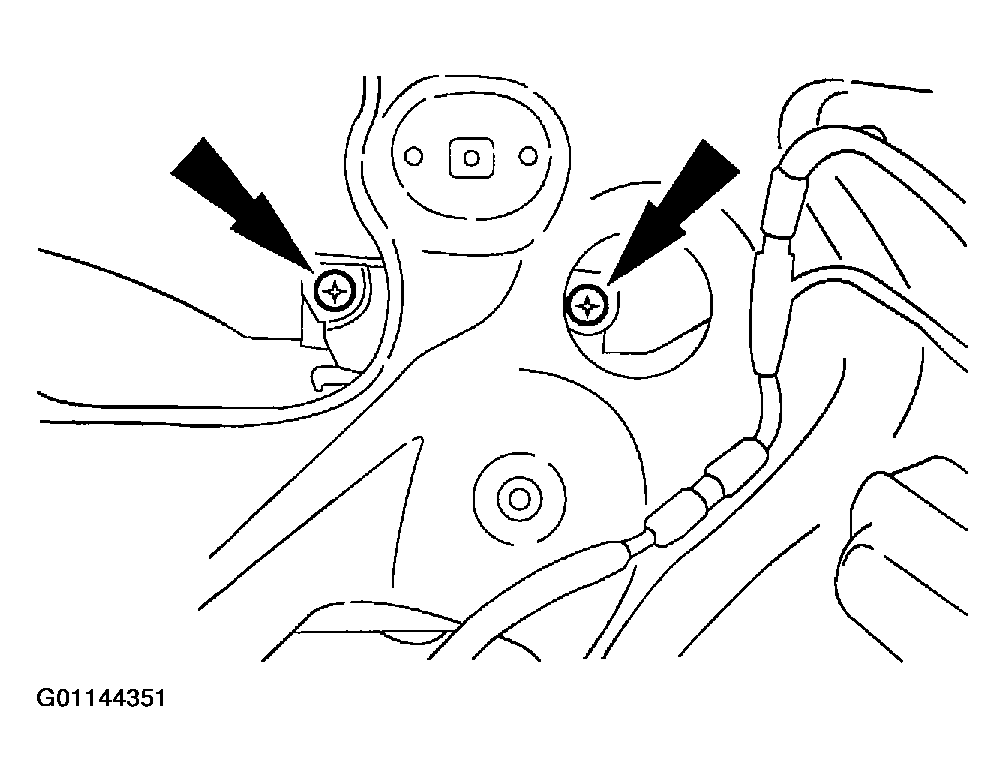

Fig 4: Removing Rear Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Remove the rear door window glass screws.
Support the rear door window glass in the full up position.
Vehicles with power windows

Fig 5: Disconnecting Rear Door Power Window Regulator Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the rear door power window regulator electrical connector.

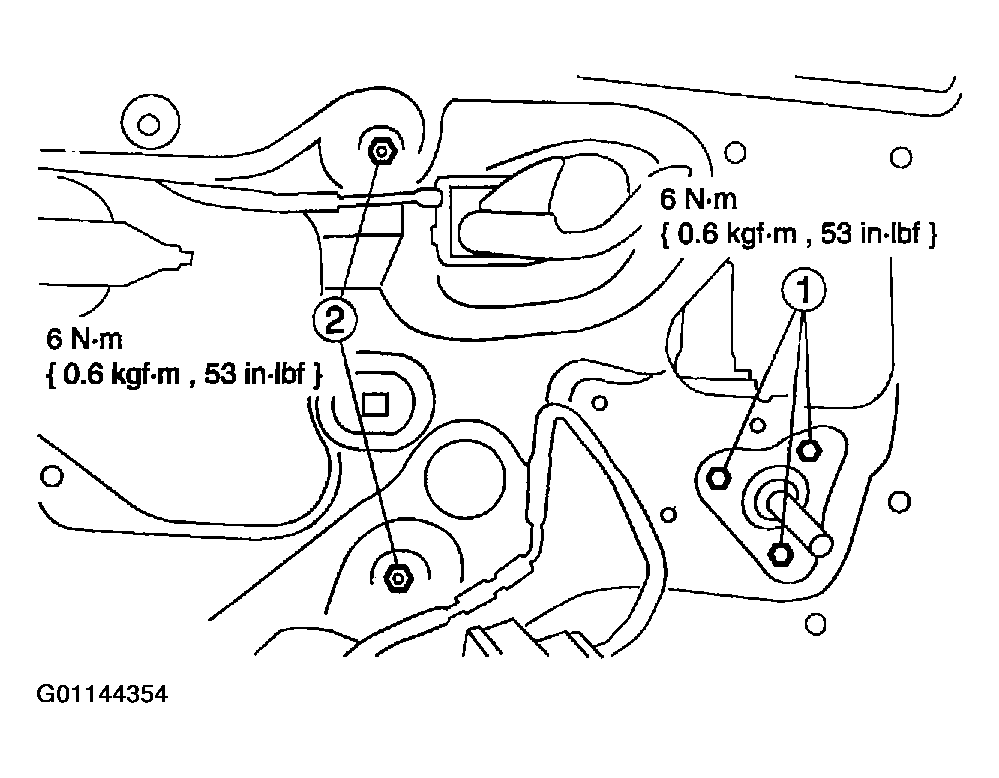

Fig 6: Removing Rear Door Power Window Regulator Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the rear door power window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.
  Vehicles with manual windows

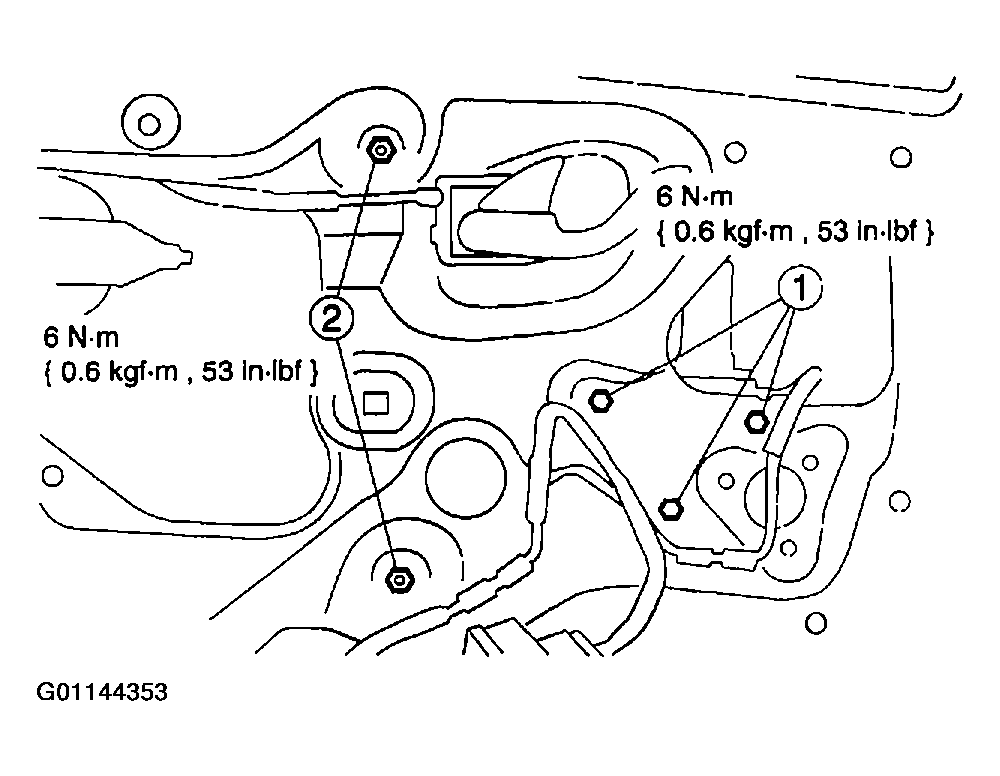

  Fig 7: Remove The Rear Door Window Regulator Assembly
  Courtesy of MAZDA MOTORS CORP.
Remove the rear door window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.
  All vehicles
To install, reverse the removal procedure.
- Cycle the door glass to make sure of correct window glass engagement.
