Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with manual windows

Fig 1: Removing Rear Door Manual Window Regulator Handle

Courtesy of MAZDA MOTORS CORP.

Remove the rear door manual window regulator handle.
1. Release the clip.
2. Remove the rear door manual window regulator handle.
  All vehicles

  Fig 2: Removing Rear Door Latch Release Handle Bezel
  Courtesy of MAZDA MOTORS CORP.
Remove the rear door latch release handle bezel.
1. Remove the screw.
2. Remove the rear door latch release handle bezel.

  Fig 3: Removing Door Handle Cup Screw
  Courtesy of MAZDA MOTORS CORP.
Remove the door handle cup screw.

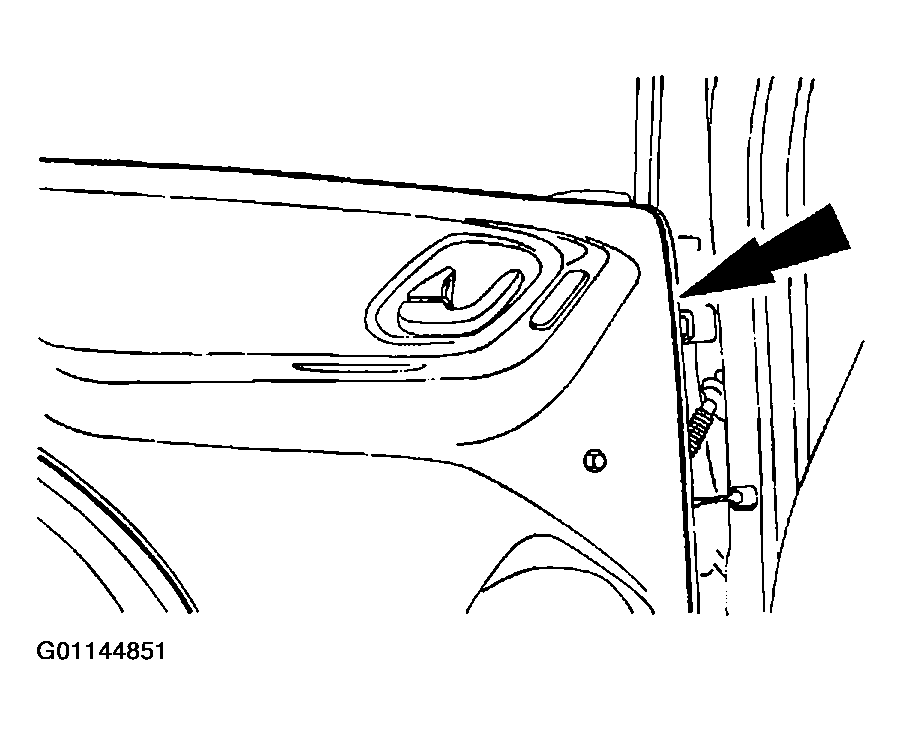

Fig 4: Removing Rear Door Sail Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear door sail panel.

Fig 5: Removing Rear Door Trim Panel
Courtesy of MAZDA MOTORS CORP.
Remove the rear door trim panel.
- Disconnect the electrical connector (vehicles with power windows only).
To install, reverse the removal procedure.
