Rear Door Glass Top Run: Removal

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door window regulator. For additional information, refer to REAR DOOR WINDOW REGULATOR .

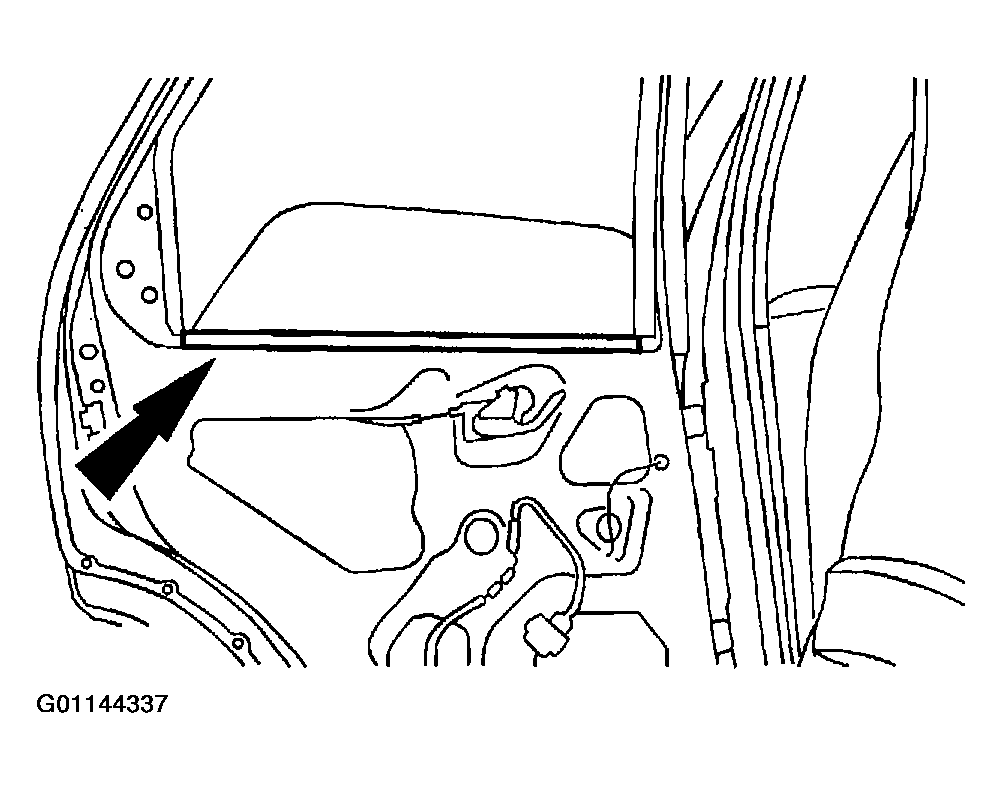

Fig 1: Positioning Rear Door Window For Removal
Courtesy of MAZDA MOTORS CORP.
Position the rear door window glass to the full down position.

Fig 2: Removing Rear Door Exterior Sail Panel
Courtesy of MAZDA MOTORS CORP.
Remove the screws and the rear door exterior sail panel.

Fig 3: Removing Rear Door Interior Glass Weatherstrip
Courtesy of MAZDA MOTORS CORP.
Remove the rear door interior glass weatherstrip.

Fig 4: Removing Rear Door Exterior Belt Line Molding
Courtesy of MAZDA MOTORS CORP.
Remove the rear door exterior belt line molding.

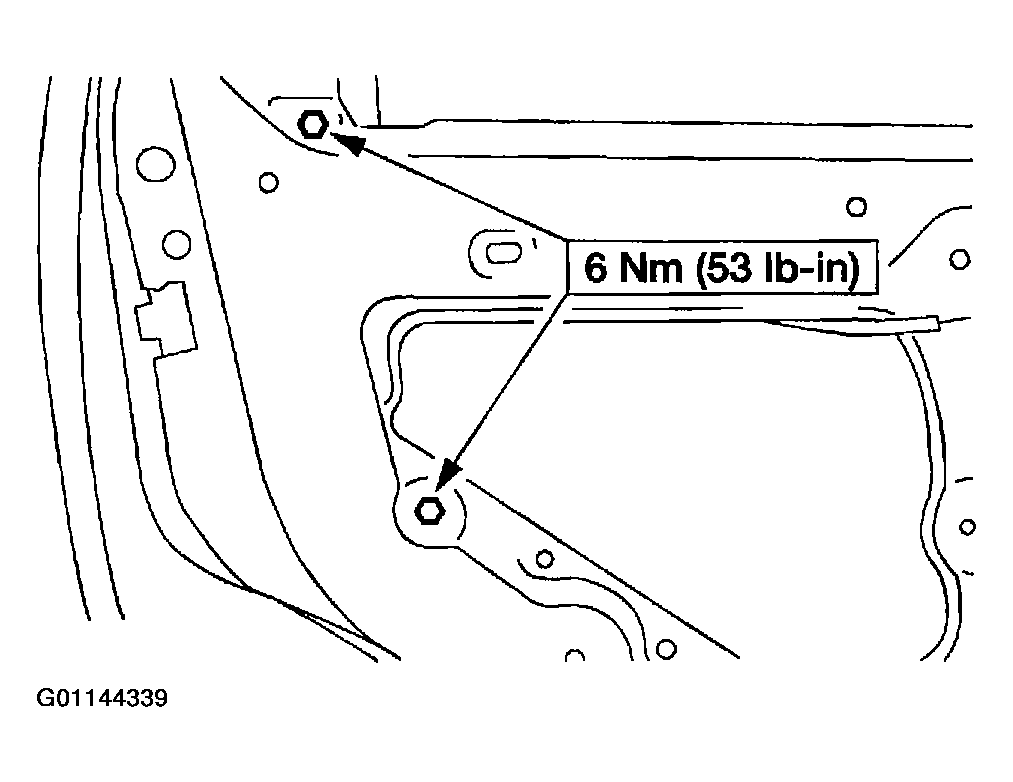

Fig 5: Removing Rear Door Glass Top Run Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the rear door glass top run bolts.

Fig 6: Positioning Rear Door Window Glass Down And Forward
Courtesy of MAZDA MOTORS CORP.
Position the rear door window glass down and forward.

Fig 7: Removing Rear Door Glass Top Run
Courtesy of MAZDA MOTORS CORP.
Remove the rear door glass top run.
To install, reverse the removal procedure.
