Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Open the liftgate glass.

Fig 1: Removing Liftgate Nut Access Covers
Courtesy of MAZDA MOTORS CORP.
Remove the two liftgate nut access covers (one on each side).

Fig 2: Disconnecting Rear Window Glass Electrical Harness Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the rear window glass electrical harness connector.

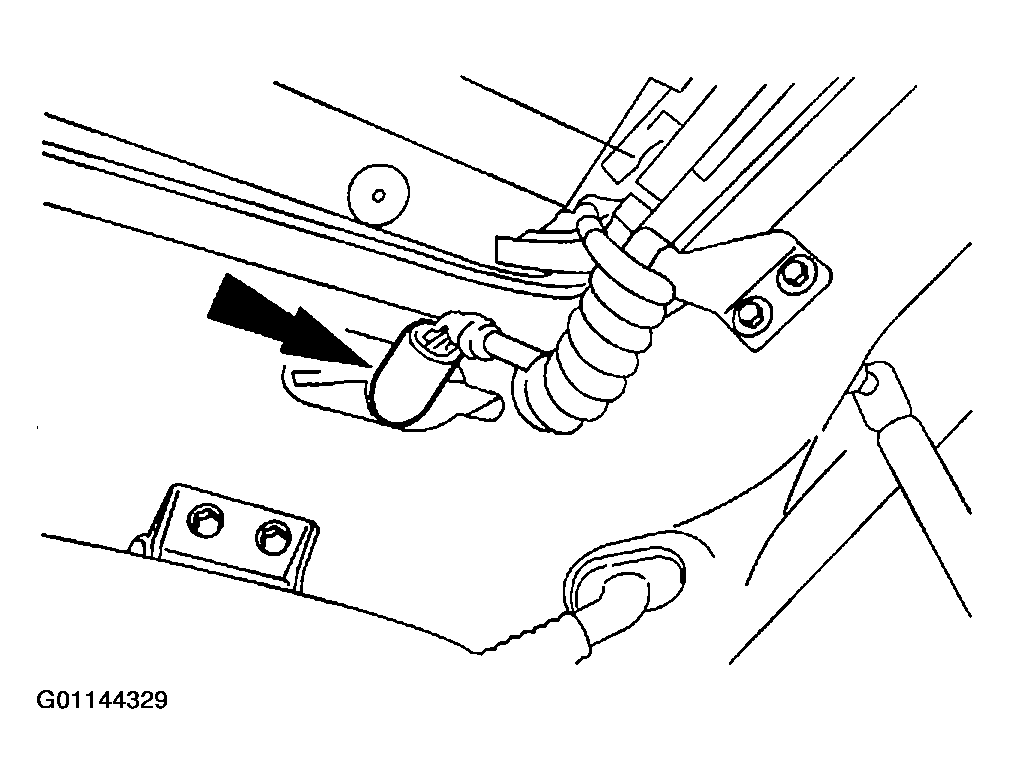

Fig 3: Disconnecting Heated Window Grid Wire Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the heated window grid wire electrical connector.

Fig 4: Disconnecting Liftgate Window Glass Cylinders
Courtesy of MAZDA MOTORS CORP.
NOTE:
- An assistant may be needed to carry out this step.
Disconnect the two liftgate window glass cylinders.
1. Slide the spring retainer to the end of the socket.
2. Disconnect the socket from the ball stud.

  Fig 5: Removing Liftgate Window Glass Hinge Nuts
  Courtesy of MAZDA MOTORS CORP.
NOTE:
- An assistant may be needed to carry out this step.
Remove the two liftgate window glass hinge nuts.
To install, reverse the removal procedure.
1. Transfer components as necessary.
