Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

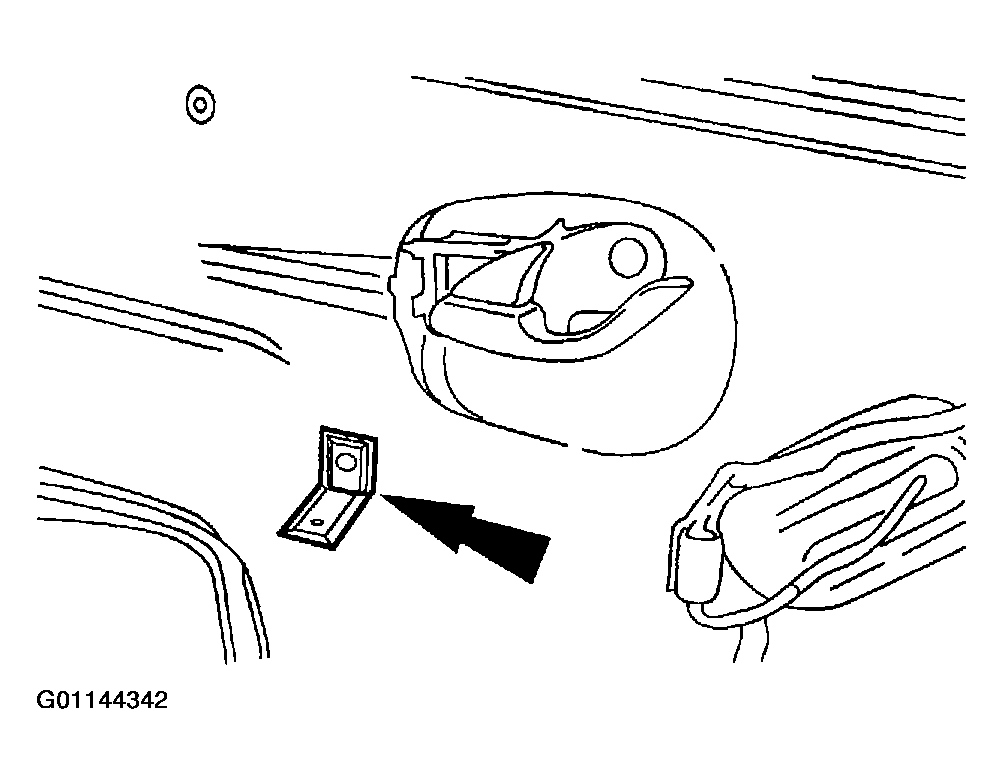

Fig 1: Removing Front Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the screw and the front door trim panel bracket.
Position the water shield aside.
Vehicles with power windows

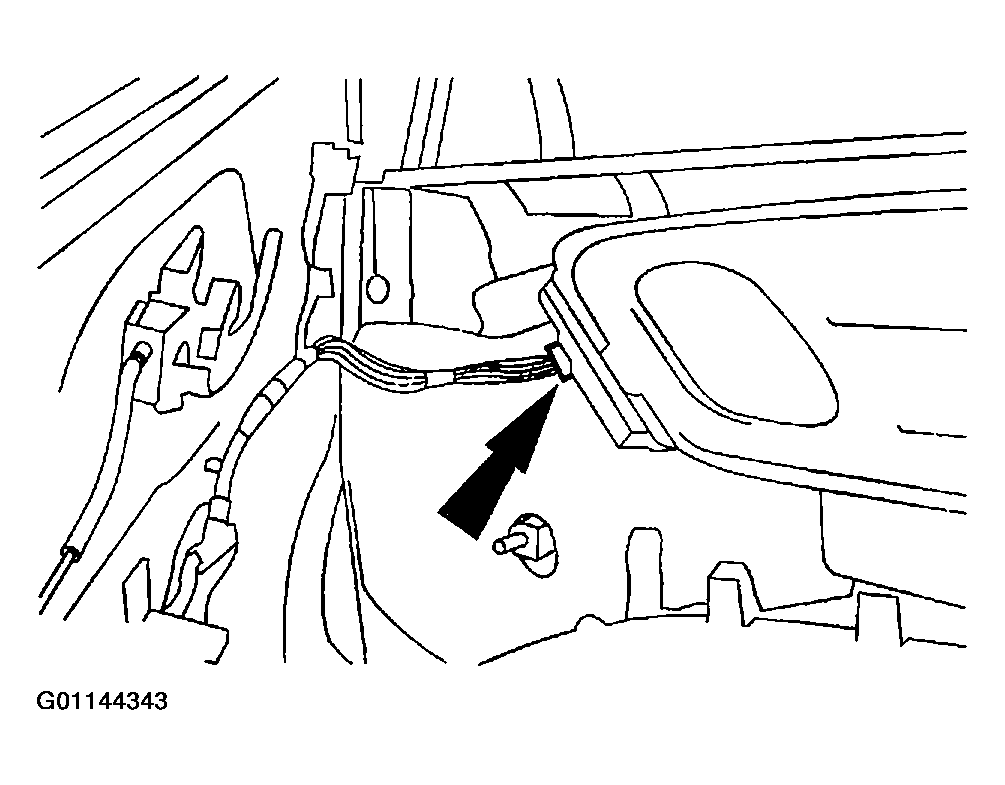

Fig 2: Connecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Connect the window control switch electrical connector.
Connect the battery.
All vehicles
Lower the front door window glass to gain access to the screws.
Vehicles with power windows
Disconnect the battery.
Disconnect the window control switch electrical connector.
All vehicles

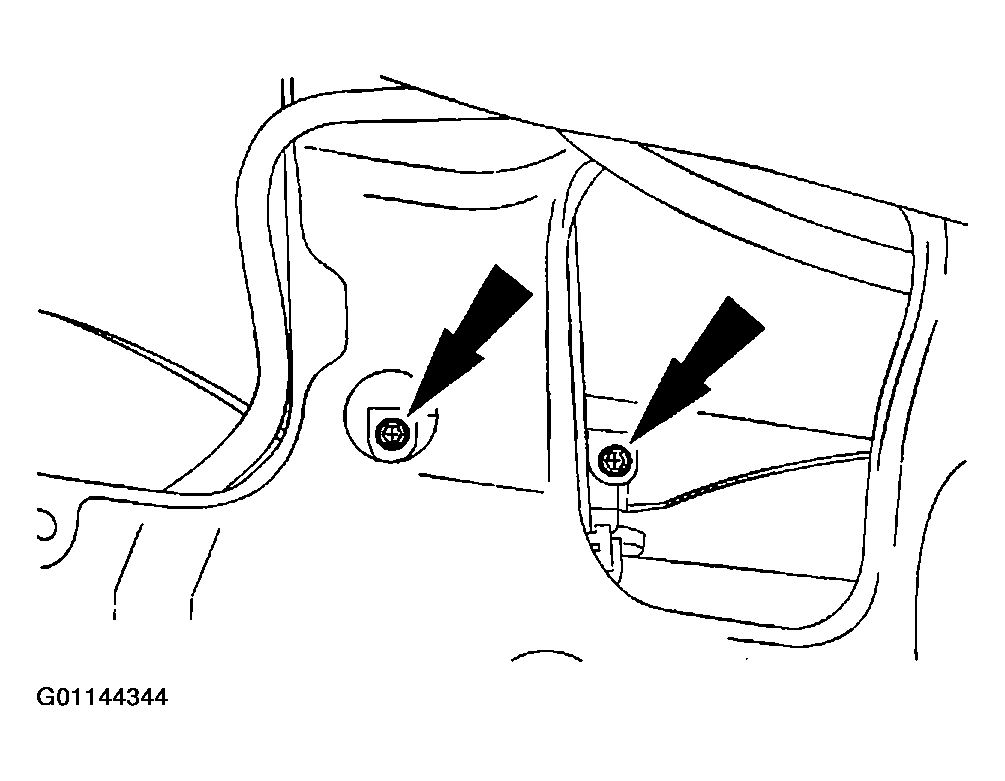

Fig 3: Removing Front Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass screws.
Support the front door window glass in the full up position.
Vehicles with power windows

Fig 4: Disconnecting Front Door Power Window Regulator Motor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the front door power window regulator motor electrical connector.

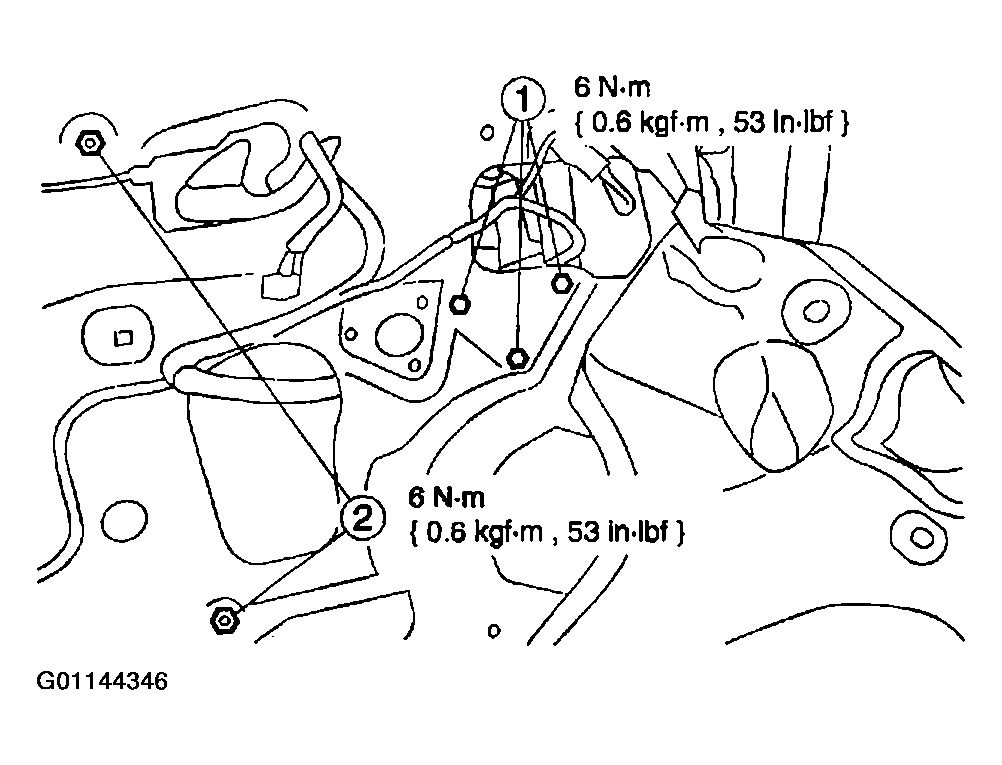

Fig 5: Removing Front Door Power Window Regulator Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the front door power window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.
  Vehicles with manual windows

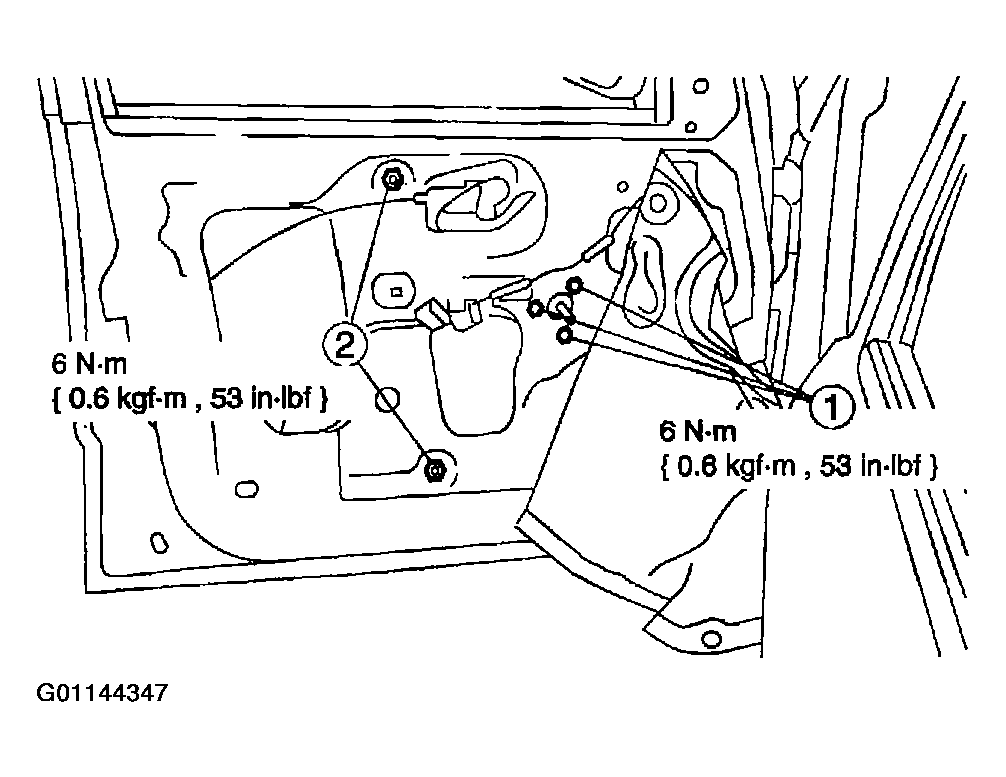

  Fig 6: Removing Front Door Window Regulator Assembly
  Courtesy of MAZDA MOTORS CORP.
Remove the front door window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.
  All vehicles
To install, reverse the removal procedure.
- Cycle the door window glass to make sure of correct door window glass engagement.
