Removal & Installation (Mazda6 2.3L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the plug hole plate. Lift off and remove the plug hole plate from the installation areas (rubber and clips) as shown in the illustration. See Fig 1.

CAUTION: The high-tension leads must be reinstalled to their original positions. Incorrect installation can damage the leads and cause power loss, and negatively affect the electronic components.

Remove in the order indicated in the illustration. See Fig 2. To install, reverse removal procedure.

Fig 1: Removing & Installing Plug Hole Plate - Mazda6 (2.3L)

Courtesy of MAZDA MOTORS CORP.

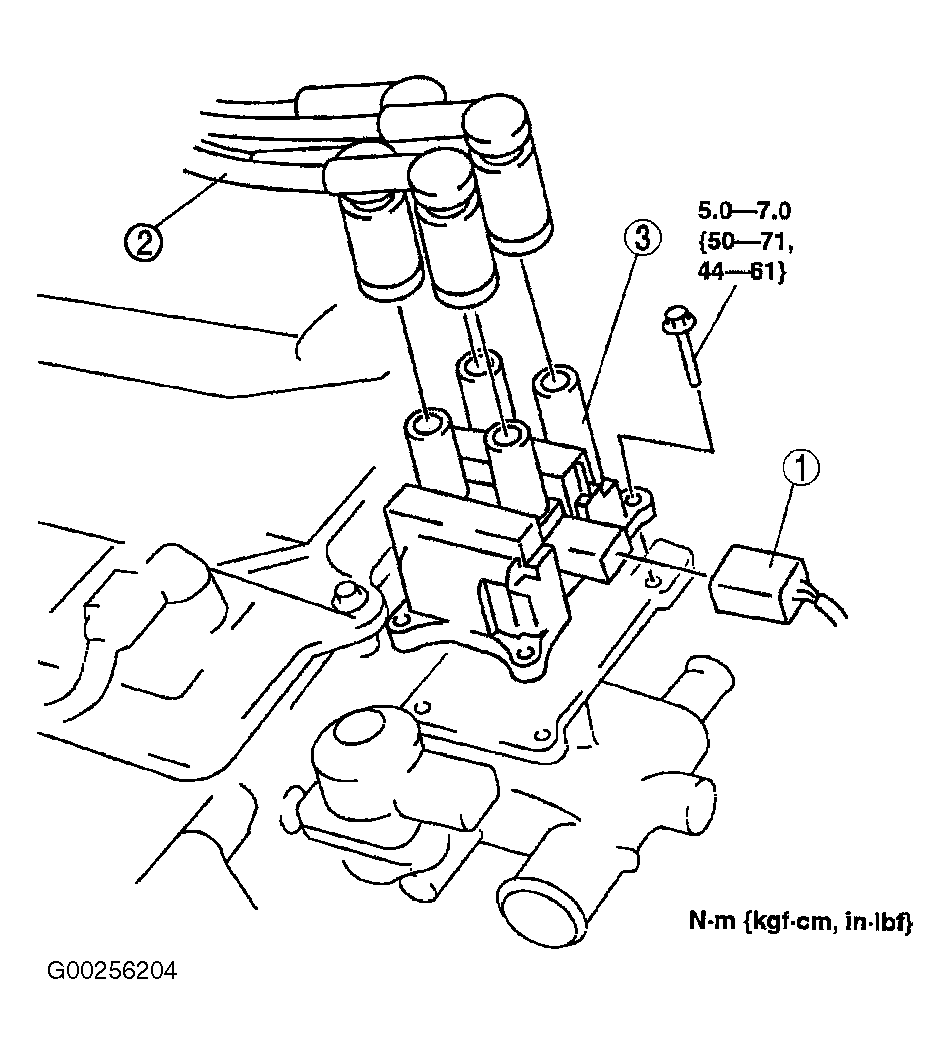

Fig 2: Removing & Installing Ignition Coil - Mazda6 (2.3L)

Courtesy of MAZDA MOTORS CORP.
