Removal & Installation (Protege & Protege5)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting, and make sure that it is free of foreign material.

Relieve system pressure. See FUEL SYSTEM PRESSURE RELEASE .
Disconnect the battery negative cable.
Remove in the order indicated in the illustration. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

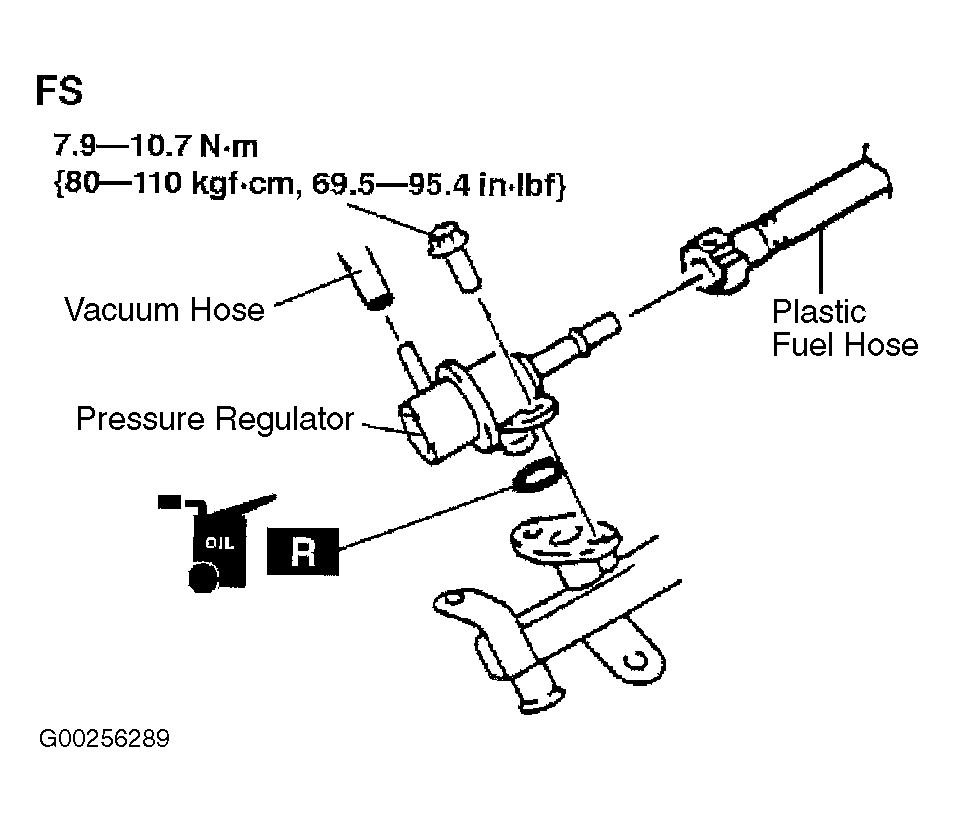

Fig 1: Removing & Installing Fuel Pressure Regulator - Protege & Protege5

Courtesy of MAZDA MOTORS CORP.
