Removal & Installation (Tribute 3.0L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the knock sensor harness connector. See Fig 1.

NOTE: The knock sensor is located on the right side of the cylinder block.

Remove the bolt and the knock sensor. See Fig 2.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

Fig 1: Locating Knock Sensor Harness Connector - Tribute (3.0L)

Courtesy of MAZDA MOTORS CORP.

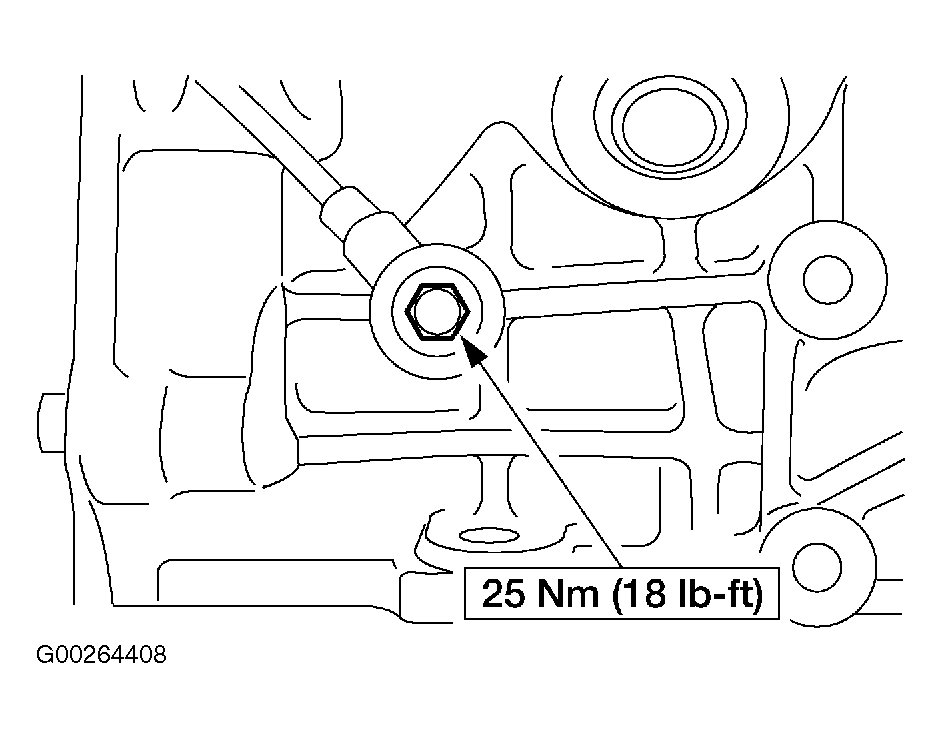

Fig 2: Removing & Installing Knock Sensor - Tribute (3.0L)

Courtesy of MAZDA MOTORS CORP.
