Oil Pump Construction/Operation: Operation
WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

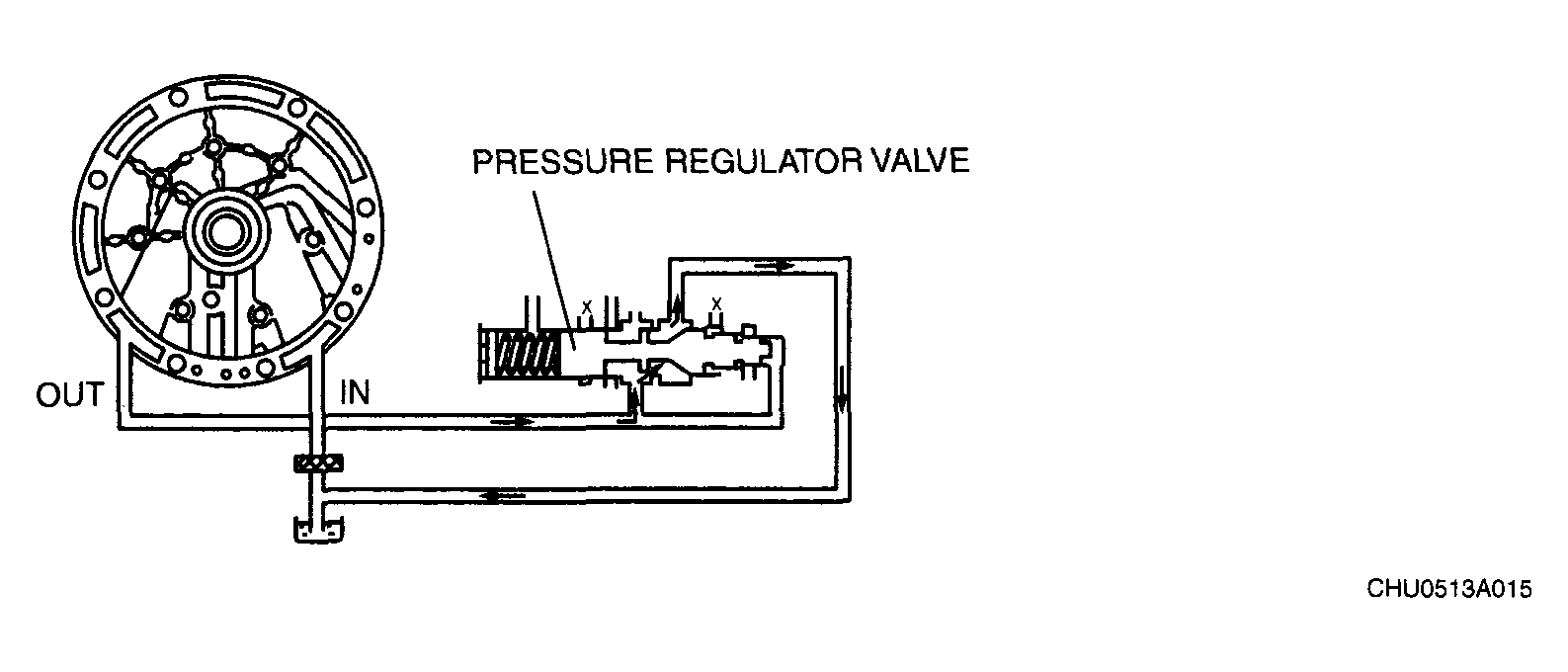

- When the inner rotor in the oil pump rotates, ATF is drawn from the oil pan to the oil pump and then discharged to the pressure regulator valve.
- The amount of ATF discharged is proportional to the rotational speed of the torque converter.
