Oil Pressure Switch Outline
WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

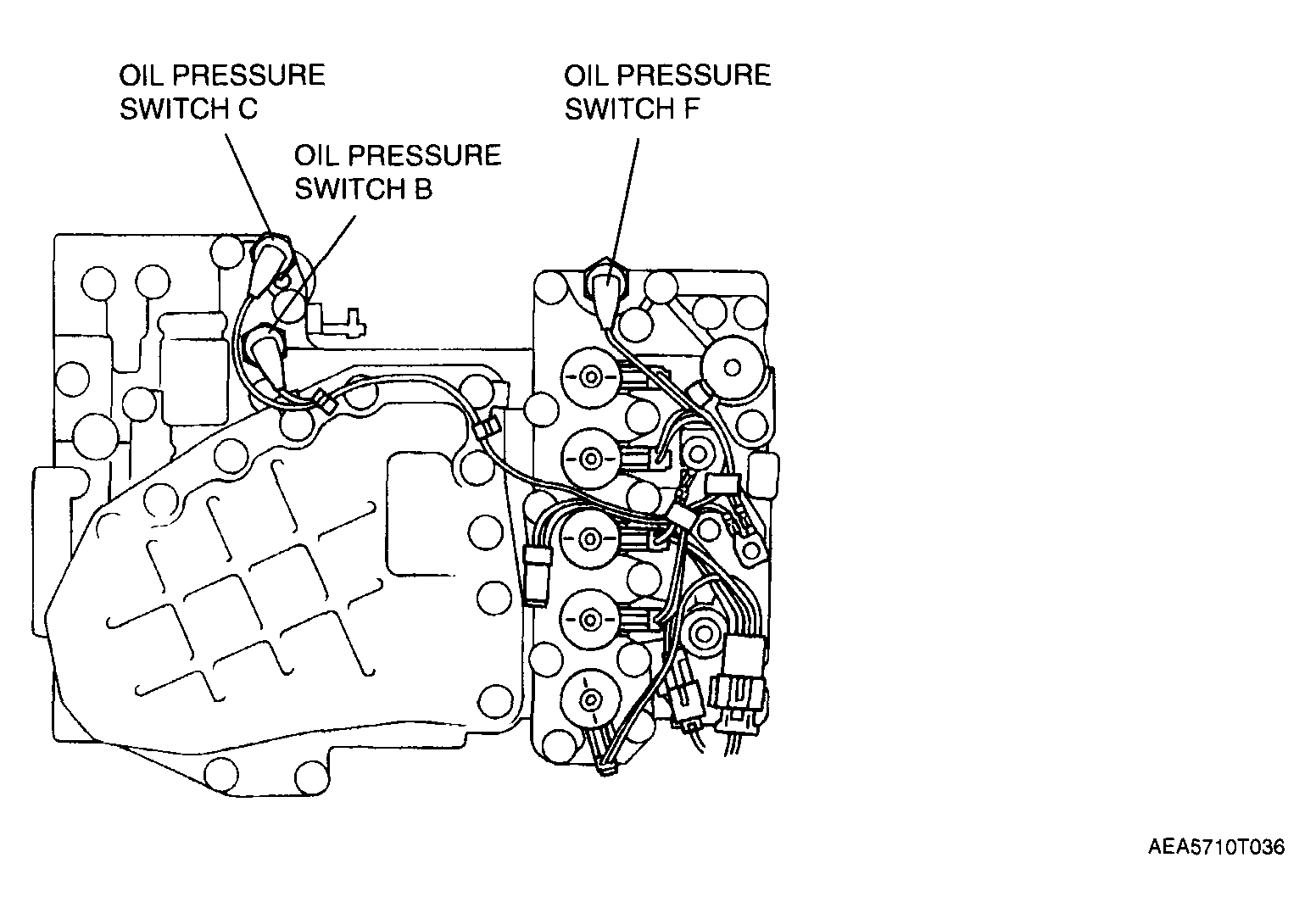

- The oil pressure switches detect pressure applied to the clutch and brakes, and sends control signals to the TCM.
- The TCM controls clutch engagement based on these signals.
- The oil pressure switches have the following functions:
OIL PRESSURE SWITCH FUNCTION CHART
| Oil pressure switch | Function |
|---|---|
| Oil pressure switch B | Detects pressure applied to 2-4 brake |
| Oil pressure switch C | Detects pressure applied to high clutch |
| Oil pressure switch F | Detects pressure applied to low and reverse brake |
