Low And Reverse Brake Assembly

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new seal rings to the low and reverse brake piston.
    Fig 1: Installing Seal Rings To Low And Reverse Brake Piston
    G04331465Courtesy of MAZDA MOTORS CORP.
  2. Install the low and reverse brake piston.

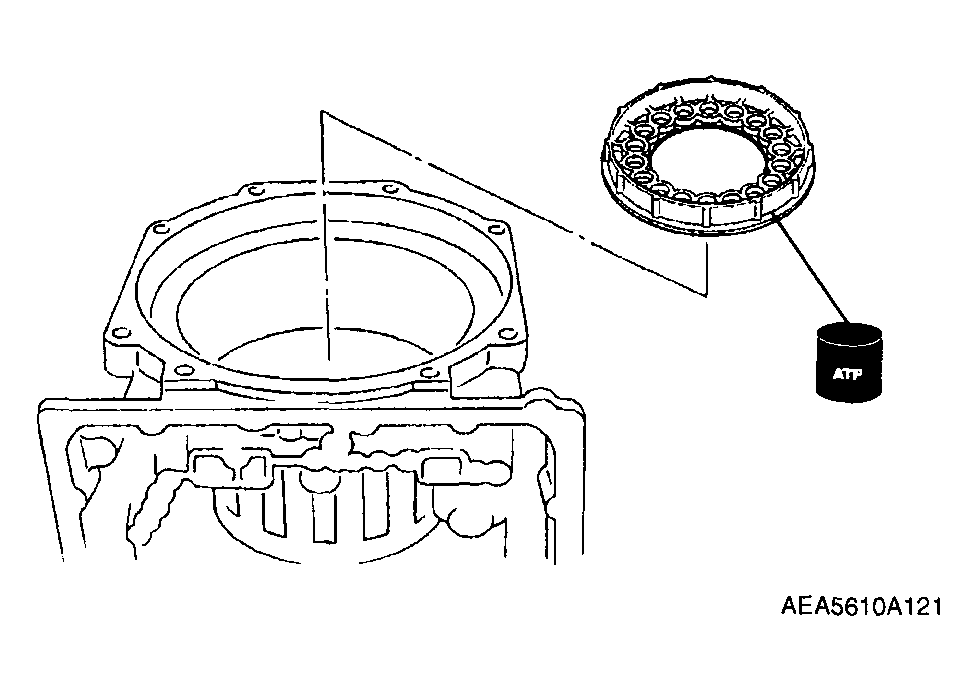

    Fig 2: Installing Low And Reverse Brake Piston
    G04331466Courtesy of MAZDA MOTORS CORP.
  3. Install the return spring.
    CAUTION:
    • If the dished plate is not installed in the specified direction, it may be damaged or not operate properly. Install the plate exactly as shown in the figure.

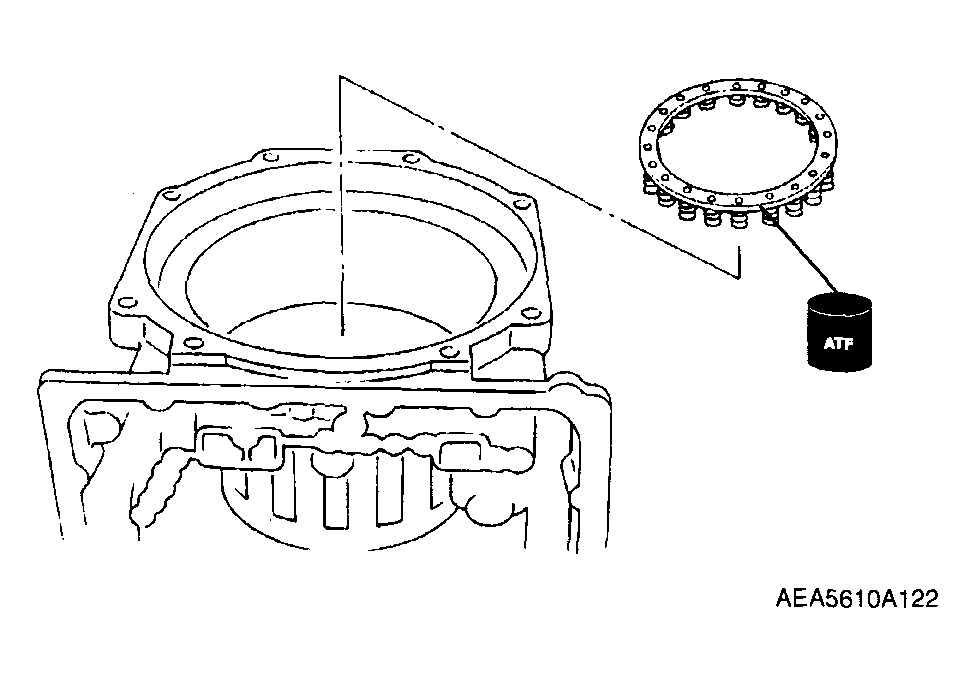

    Fig 3: Installing Return Spring
    G04331467Courtesy of MAZDA MOTORS CORP.
  4. Apply ATF to the dished plate, driven plates, and the drive plates, and install them to the transmission case in the following order:

    Dished-Driven-Driven-Drive-Driven-Drive-Driven-Drive-Driven-Drive

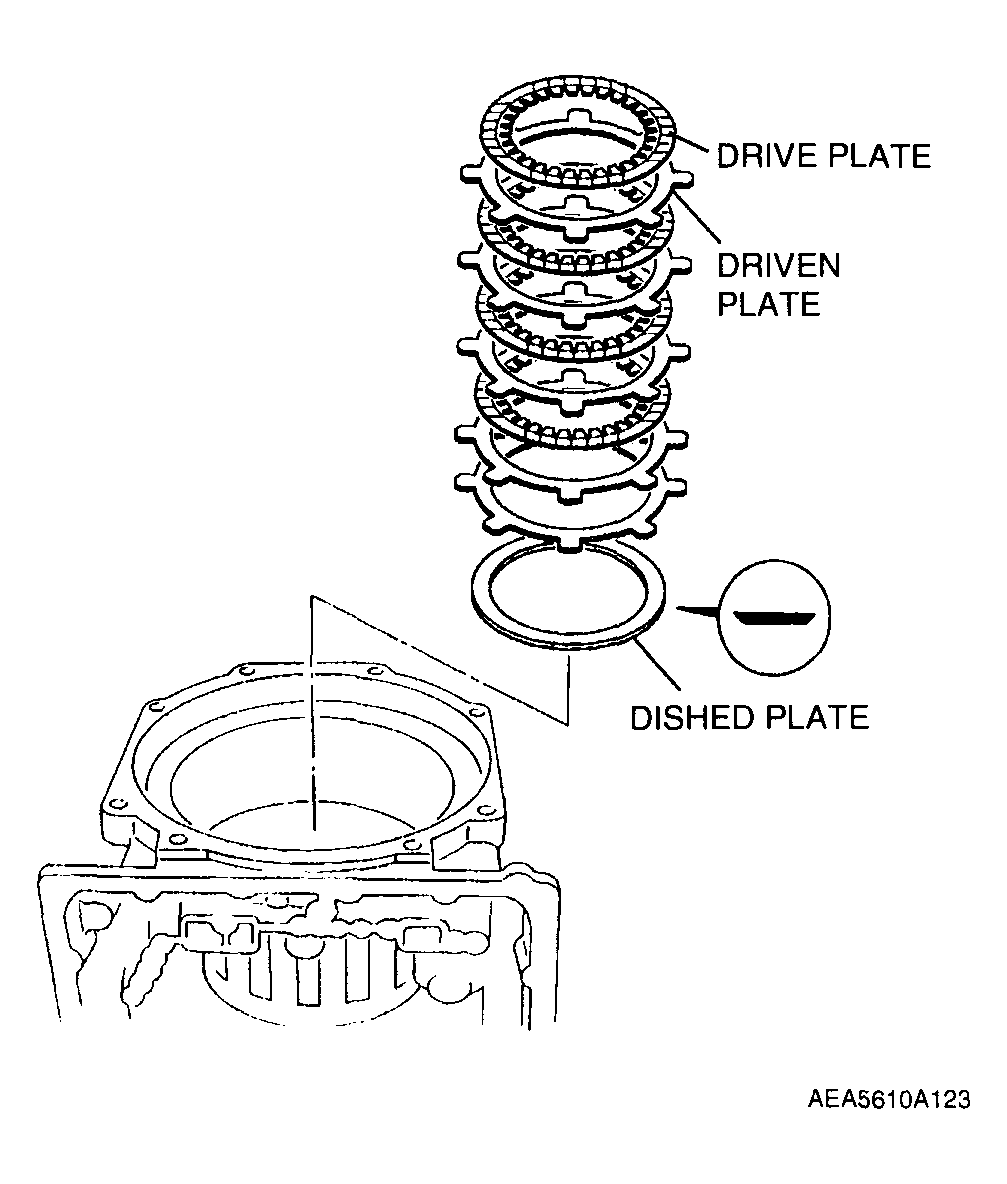

    Fig 4: Installing Dished Plate, Driven Plates, And Drive Plates, To Transmission Case
    G04331468Courtesy of MAZDA MOTORS CORP.
  5. Install the N-spring.
    Fig 5: Installing N-Spring
    G04331469Courtesy of MAZDA MOTORS CORP.
  6. Install the retaining plate and the snap ring.
    CAUTION:
    • Applying compressed air to the assembled clutch pack for more than 3 s at a time will damage the seal.
    • Do not apply compressed air for more than the aforementioned time when testing the system.
    Fig 6: Installing Retaining Plate And Snap Ring
    G04331470Courtesy of MAZDA MOTORS CORP.
  7. Apply compressed air to the part indicated in the figure and inspect the low and reverse brake operation.
    • If there is any malfunction, inspect the seal rings.
    • Fig 7: Applying Compressed Air To Low And Reverse Brake Fluid Passage
      G04331471Courtesy of MAZDA MOTORS CORP.

    Air pressure

    390 kPa {4.0 kgf/cm 2  , 57 psi} max.

  8. Measure the clearance between the retaining plate and the snap ring.
    • If the clearance is not within the specification, adjust the clearance by installing the correct retaining plate.
    Fig 8: Measuring Clearance Between Retaining Plate And Snap Ring
    G04331472Courtesy of MAZDA MOTORS CORP.

    Specification

    0.7-1.1 mm {0.028-0.043 in}

Retaining plate sizes

mm {in}
5.2 {0.205} 5.4 {0.213} 5.6 {0.220}
5.8 {0.228} 6.0 {0.236} -
