Passenger Air Bag Deactivation (Pad) Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
Confirm that the PAD switch warning light bulb and the PAD switch illumination bulb are okay.
- If the bulbs go out, replace them with new ones.
Inspect for continuity between PAD switch terminals using an ohmmeter.
- If not as specified, replace the PAD switch.
Fig 1: Passenger Air Bag Deactivation Terminal Continuity Table
Courtesy of MAZDA MOTORS CORP.

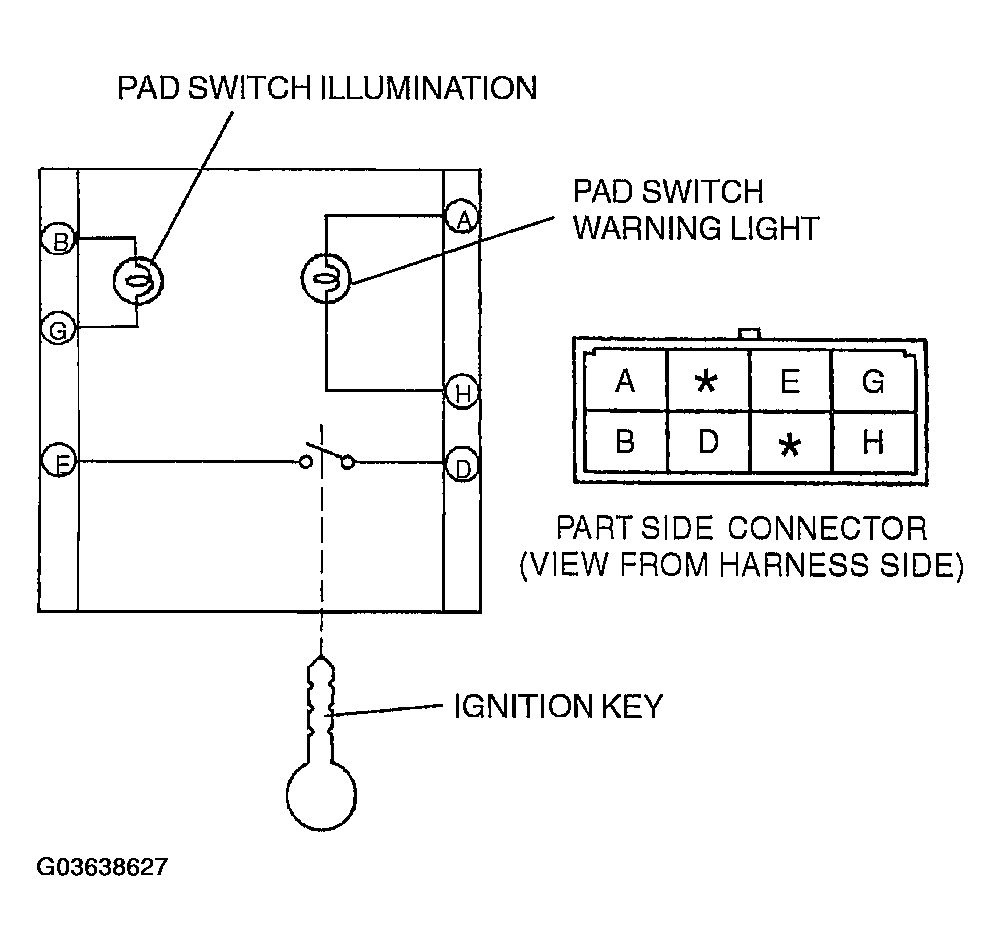

Fig 2: Identifying Passenger Air Bag Terminal Connectors
Courtesy of MAZDA MOTORS CORP.
