DTC 11: Driver-Side Pre-Tensioner Seat Belt System: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

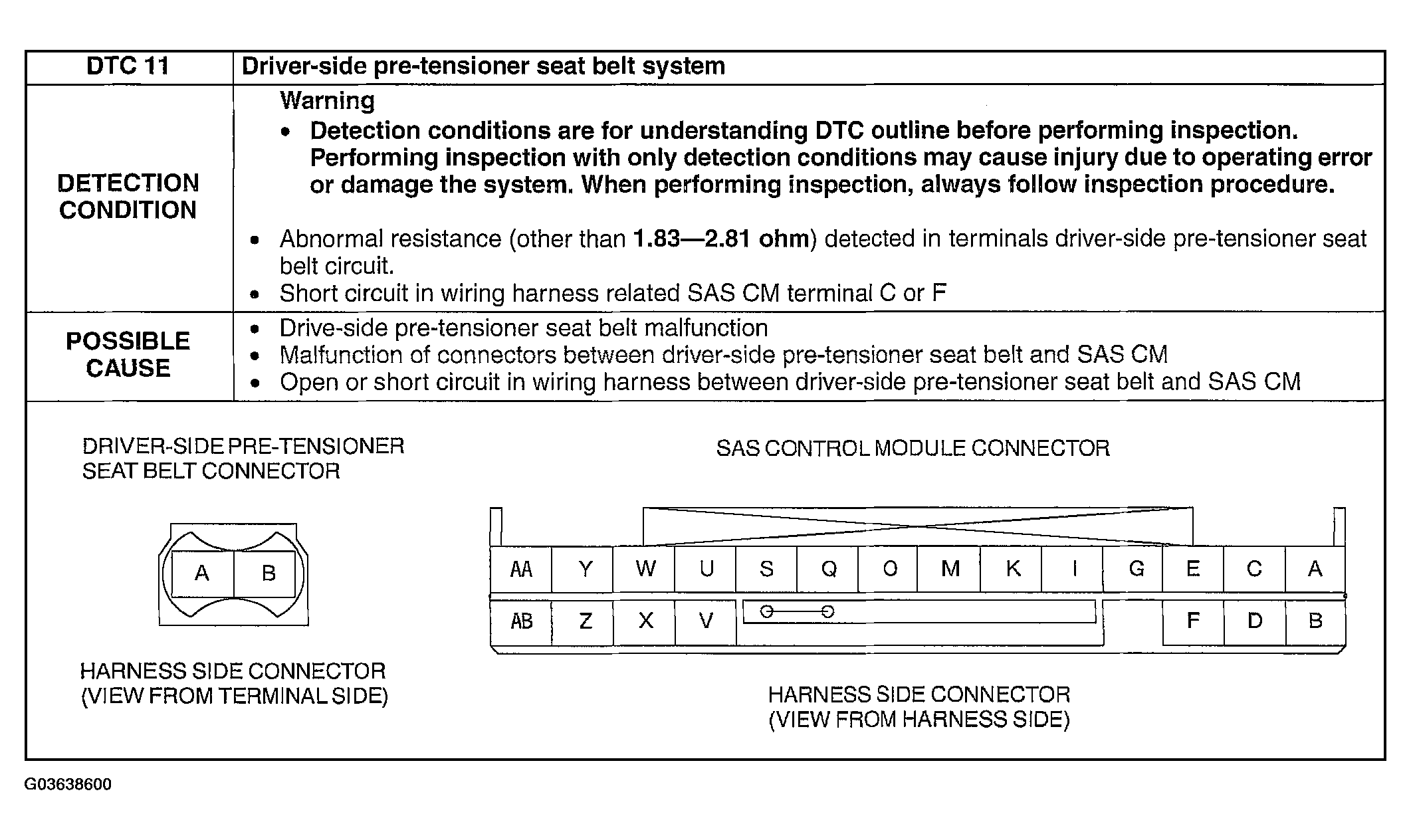

Fig 1: DTC 11 - Detection Condition & Possible Cause
G03638600Courtesy of MAZDA MOTORS CORP.
