Pedal-to-Floor Clearance Inspection
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

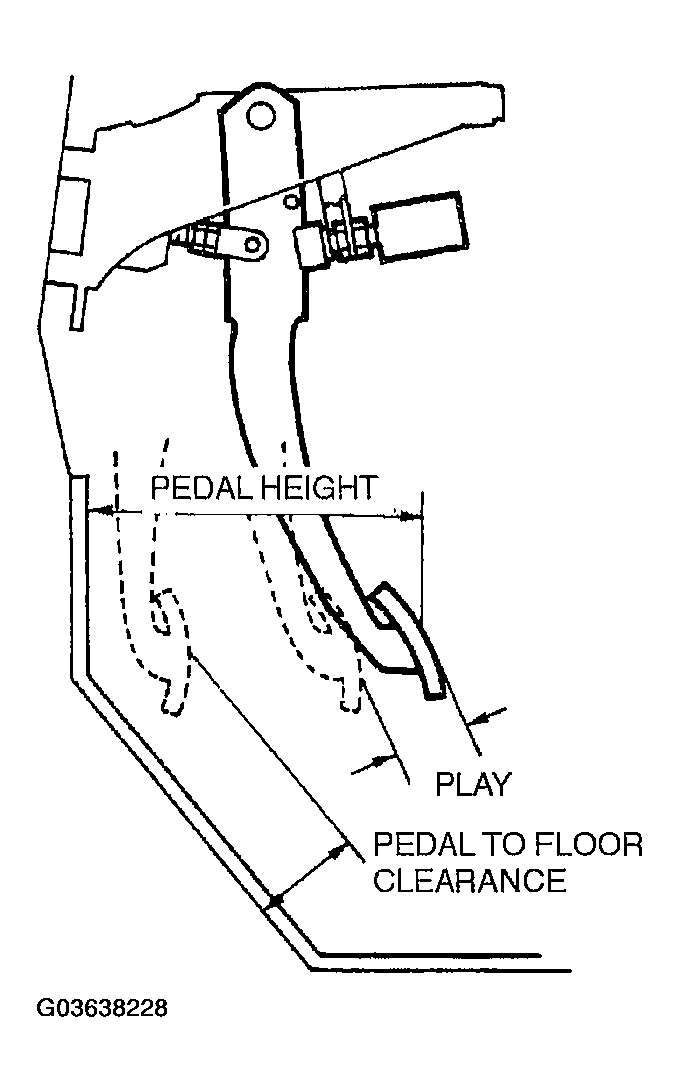

- Verify that the distance from the floor panel to the center of the upper surface of the pedal pad is as specified when the pedal is depressed with a force of 588 N {60 kgf, 132 lbf}
.
- If the distance is less than specified, inspect for air in the brake system.
Pedal-to-floor clearance
- 95 mm {3.7 in} min. (Without carpet)
