Drive Shaft Pre-Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the dust boot on the drive shaft for cracks, damage, leaking grease, and looseness in boot band.

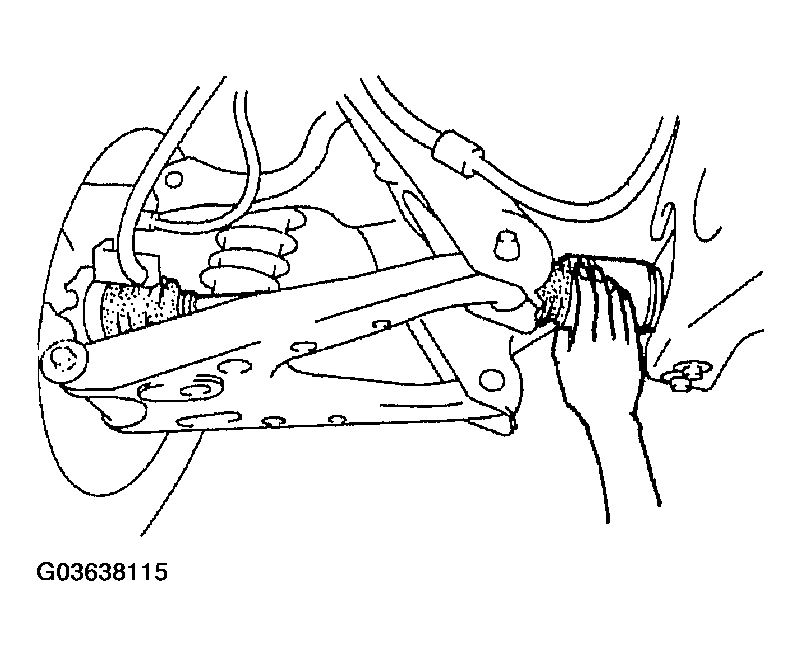

    Fig 1: Inspecting Dust Boot On Drive Shaft
    G03638115Courtesy of MAZDA MOTORS CORP.
  2. Inspect the drive shaft for bending, cracks, and wear of the joint and splines.
    • Repair or replace the drive shaft as necessary.
