Rear Shock Absorber and Coil Spring Removal Note
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

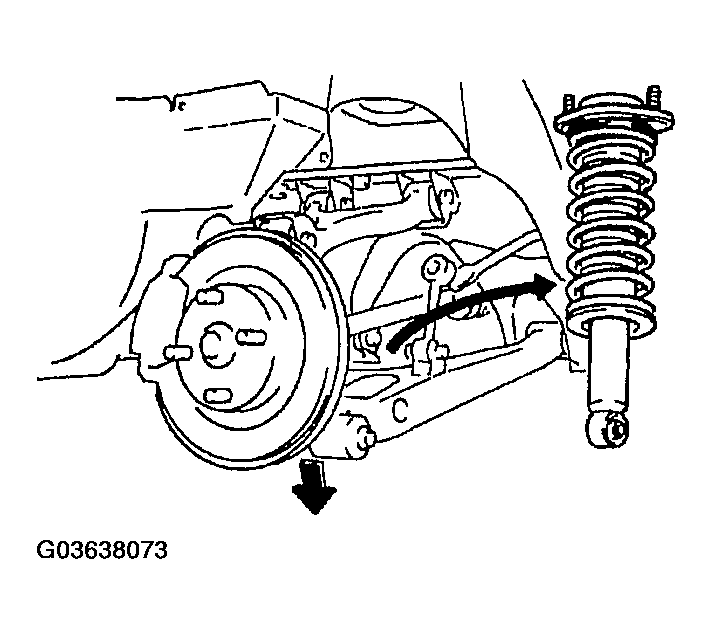

- Loosen the upper arm and adjusting cam nuts.
- Lower the upper and lower arms to remove the shock absorber and spring.
CAUTION:
- Do not lower the arms excessively, doing so may damage the brake hose.
Courtesy of MAZDA MOTORS CORP.
