Oil Cooler Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the intake manifold bracket.
- Remove the oil filter. (See OIL FILTER REPLACEMENT .)

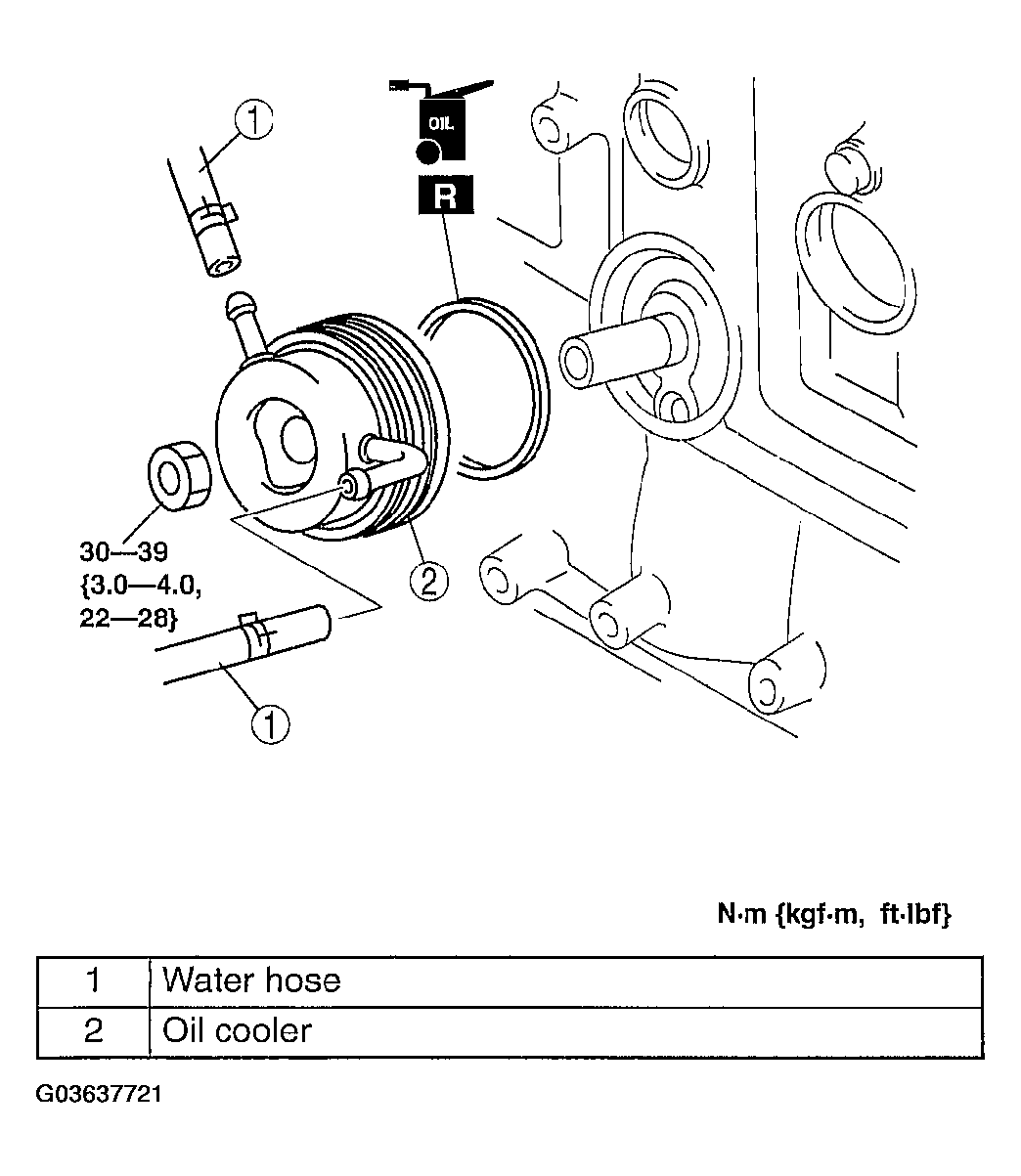

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION .)
- Start the engine and inspect for engine oil leakage.
