Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the portions shown in Fig 1.

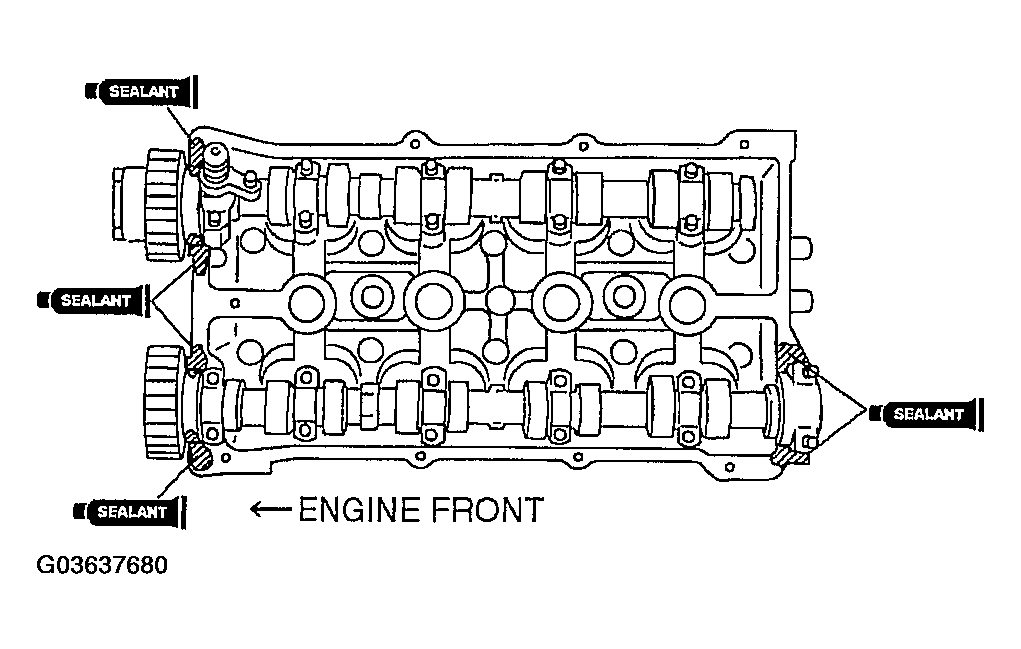

Fig 1: Applying Liquid Gasket
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the cylinder head cover bolt on the portion A shown in Fig 2.
CAUTION:
- Do not damage the O-ring while installing the OCV case. If the O-ring of the OCV adapter on camshaft cap is damaged, it may cause hydraulic leakage.

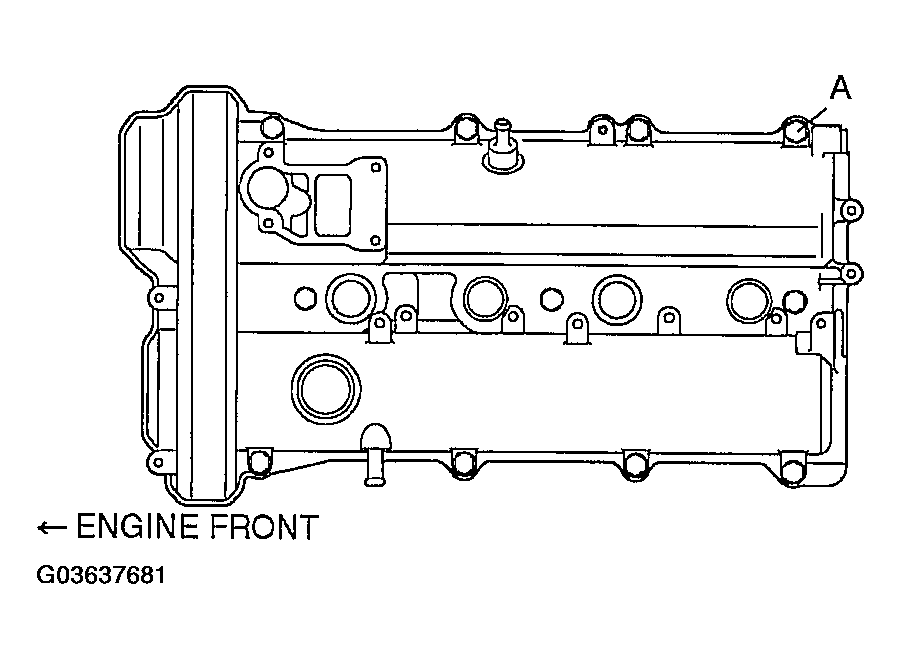

Fig 2: Tightening Cylinder Head Cover Bolt On Portion Of Cylinder Head
Courtesy of MAZDA MOTORS CORP.
Tighten the cylinder head cover bolts for several times in the numerical order shown in Fig 3.

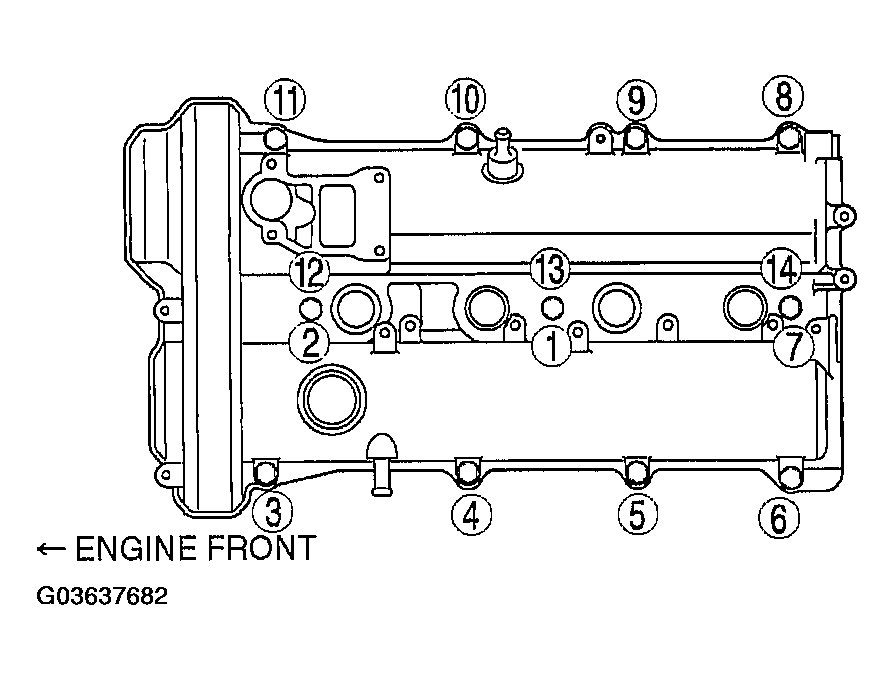

Fig 3: Tightening Sequence Of Cylinder Head Cover Bolts
Courtesy of MAZDA MOTORS CORP.
